Allen-Bradley Industrial Horn 24V AC Industrial Horn 855H-BCA24ADR6
Allen-Bradley 855H-BCA24ADR6 - industrial components - Material: Horn cover and base: ABS, Beacon housing: polycarbonate, Beacon lens: polycarbonate, Gasket (cover to base): Nitrile 70, Gasket (enclosure back to wall): Nitrile 70, Gasket (horn to beacon): Nitrile 70, Gasket (screw mounting hole): fiber; Operating Temperature: -25 °C; Storage Temperature: -40 °C.
The Allen-Bradley 855H-BCA24ADR6 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Material: Horn cover and base: ABS, Beacon housing: polycarbonate, Beacon lens: polycarbonate, Gasket (cover to base): Nitrile 70, Gasket (enclosure back to wall): Nitrile 70, Gasket (horn to beacon): Nitrile 70, Gasket (screw mounting hole): fiber and Operating Temperature: -25 °C.
Published specifications for this part include Storage Temperature: -40 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP66; Degree of protection (NEMA): 3R; Material housing: Plastic; Shock: 15 G peak; Vibration: 3 G peak; Product type: Industrial horn with beacon; Type of current: AC; Operating voltage: 24V AC @ 50/60Hz (±10%). See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Colour housing | Grey |
| Current consumption | 405mA @ 24V AC |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 3R |
| Flashing frequency | 1 Hz |
| Horn type | 100 dB/10 selectable tones grey, 2 circuit DC/1 circuit AC |
| Lens color | Blue |
| Lifecycle Status | Active |
| List of degrees of protection (NEMA) | 13, 3R |
| Loudness | 100 dBb |
| Material | Horn cover and base: ABS, Beacon housing: polycarbonate, Beacon lens: polycarbonate, Gasket (cover to base): Nitrile 70, Gasket (enclosure back to wall): Nitrile 70, Gasket (horn to beacon): Nitrile 70, Gasket (screw mounting hole): fiber |
| Material housing | Plastic |
| Mounting option | Standard base/thin-wall conduit ftd |
| Nominal Voltage | 24V |
| Operating Temperature | -25 °C |
| Operating voltage | 24V AC @ 50/60Hz (±10%) |
| Pneumatically operated | false |
| Product type | Industrial horn with beacon |
| Repair Options Available | No |
| Shock | 15 G peak |
| Storage Temperature | -40 °C |
| Type of current | AC |
| Vibration | 3 G peak |
| With contact | false |
| Xenon lamp rating | 5 J output |
Frequently Asked Questions
How do I get pricing for 855H-BCA24ADR6?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855H-BCA24ADR6?
855H-BCA24ADR6 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855H-BCA24ADR6?
Key specifications include Build America, Buy America: No; Colour housing: Grey; Current consumption: 405mA @ 24V AC; Degree of protection (IP): IP66. The full specification table on this page lists every published attribute for this part.
How quickly can 855H-BCA24ADR6 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

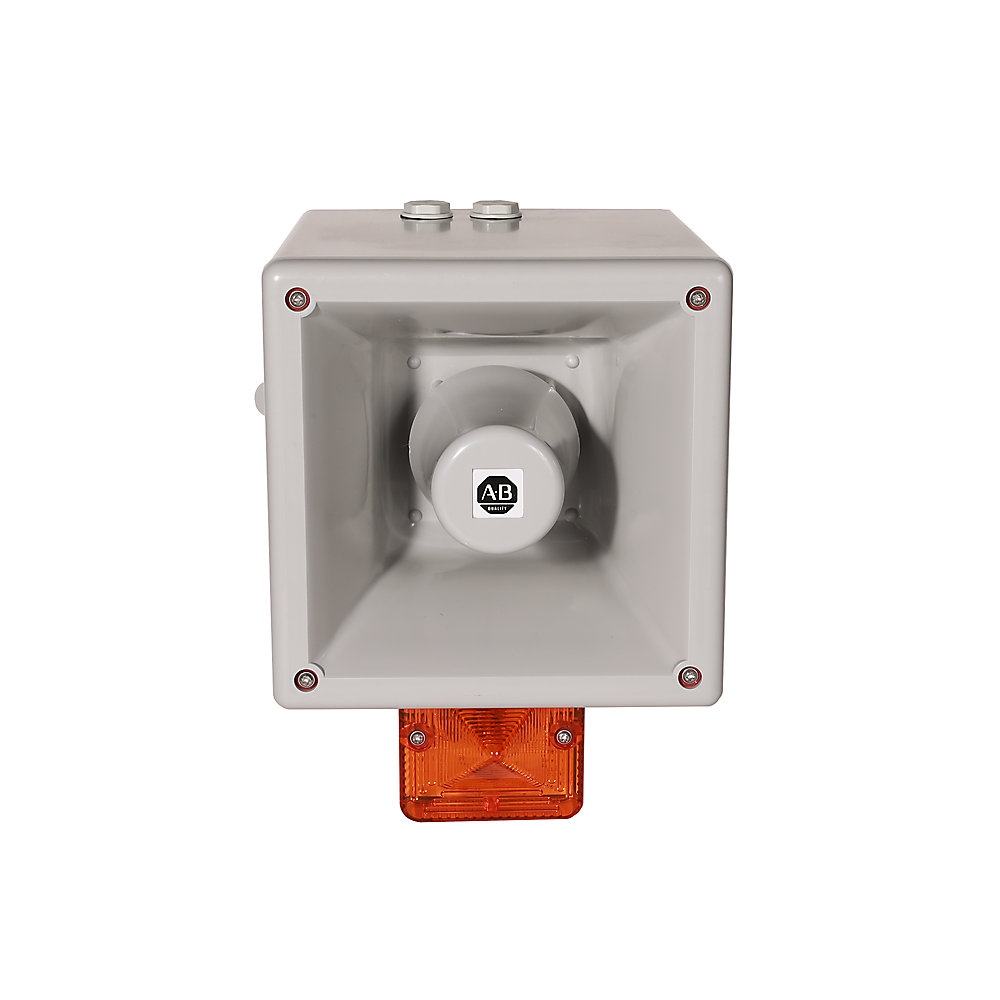

Allen-Bradley Allen-Bradley Industrial Horn 230V AC with beacon 855H-BCA20EDR5
Allen-Bradley Allen-Bradley Industrial Horn 24V AC Industrial Horn 855H-BCA24ADR7

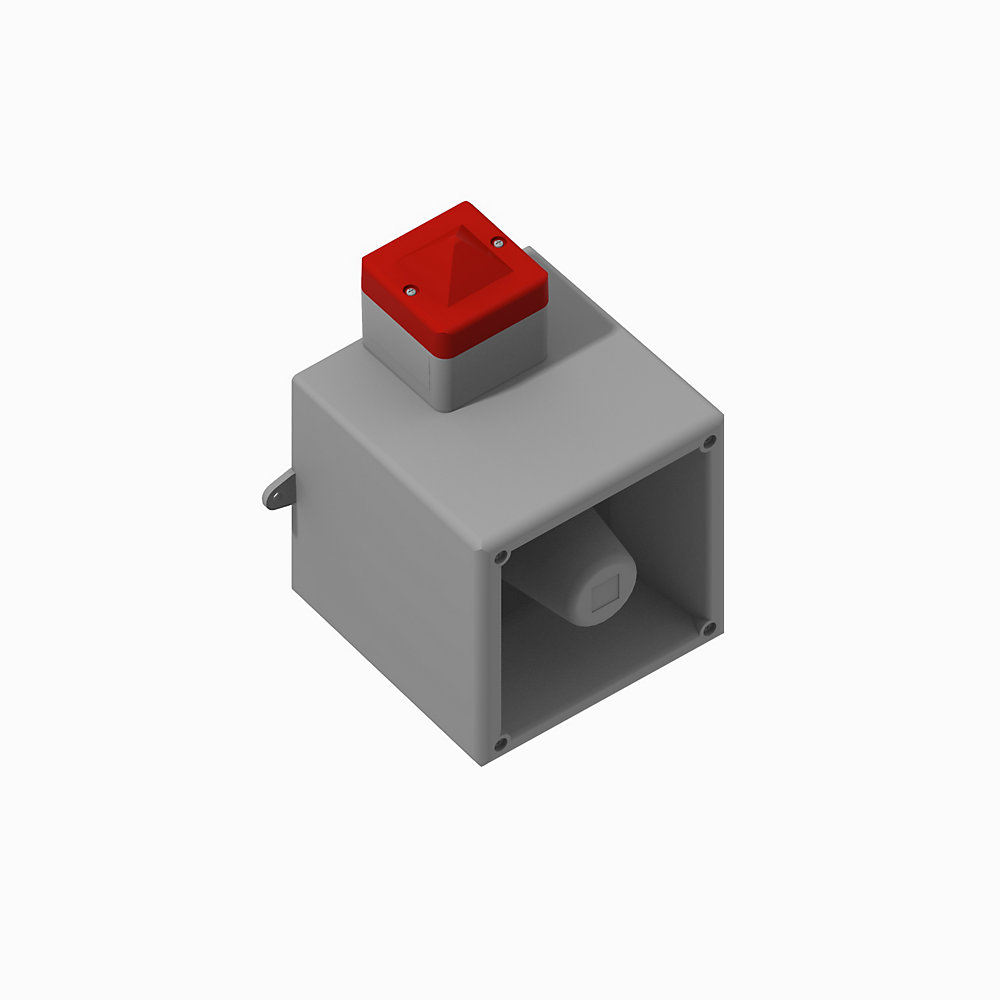

Allen-Bradley Allen-Bradley Industrial Horn 230V AC with beacon 855H-BCA20EDR4

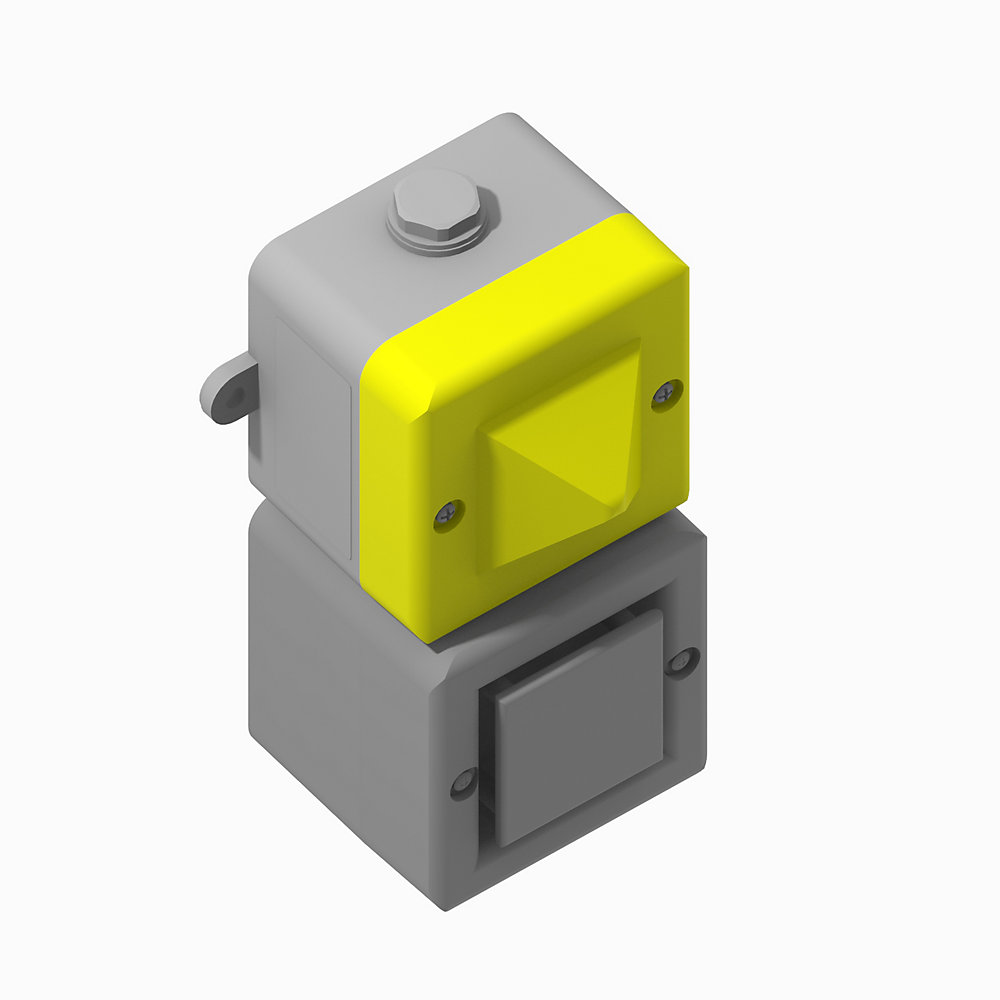

Allen-Bradley Allen-Bradley Industrial Horn 24V AC Industrial Horn 855H-BCA24ADR8

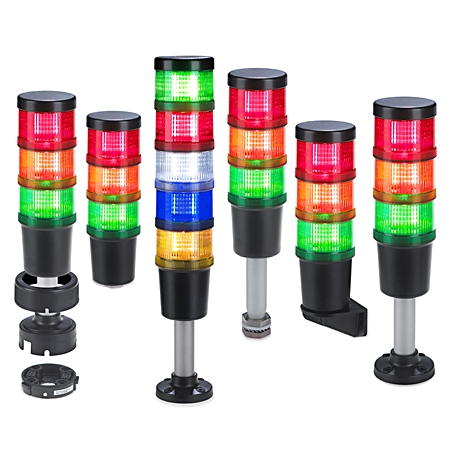

Allen-Bradley Allen-Bradley Preassembled Stack Light 70 mm Pre Wired 855F-VMSC20B24Y4Y7
