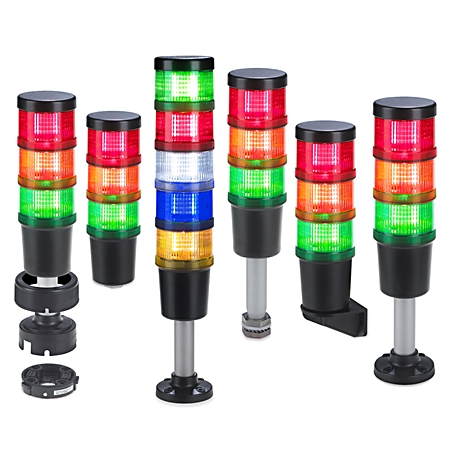

Allen-Bradley Preassembled Stack Light 70 mm Pre Wired 855F-SBSC20B24L4Y5Y3
Allen-Bradley 855F-SBSC20B24L4Y5Y3 - industrial components - Outer Diameter: 70 mm mm; Material: Rubber seals and gaskets: Nitrile rubber; Operating Temperature: -25 °C.
The 855F-SBSC20B24L4Y5Y3 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Outer Diameter: 70 mm mm and Material: Rubber seals and gaskets: Nitrile rubber.
Published specifications for this part include Operating Temperature: -25 °C; Storage Temperature: -25 °C; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Voltage type for actuating: AC/DC; Shock: 5 module stack: 35 G; Vibration: 5 module stack: 2 G; Rated operating voltage Ue: 24 V; Operating voltage: Light modules and sound modules: 24V (±10%) @ AC/DC. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Cable length and termination | 2 m, flying leads, Yellow jacket (except 10 cm and 25 cm quick release pole mount bases) |
| Current consumption | Sound modules: 53 mA |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| Flashing frequency, approx | Level-1 module: 2 Hz |
| Flashing light | true |
| Function acoustic | false |
| Function continuous light | true |
| Function flashlight | true |
| Housing Color | Black |
| Lamp life rating | Level-3 LED module: 100000 h |
| Leakage current impact | All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Level-1 lens color/ sound | Red |
| Level-1 module type | Flashing LED (2 flashes per s) |
| Level-2 lens color/ sound | Amber |
| Level-2 module type | Steady LED |
| Level-3 lens color/ sound | Green |
| Level-3 module type | Steady LED |
| Level-4 lens color/ sound | No module |
| Level-4 module type | No module |
| Level-5 lens color/ sound | No module |
| Level-5 module type | No module |
| Lifecycle Status | Discontinued |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Material | Rubber seals and gaskets: Nitrile rubber |
| Mounting Type | Surface mount with 0.5 in NPT threaded connector and mounting nut |
| Operating Temperature | -25 °C |
| Operating voltage | Light modules and sound modules: 24V (±10%) @ AC/DC |
| Outer Diameter | 70 mm mm |
| Rated operating voltage Ue | 24 V |
| Repair Options Available | No |
| Shock | 5 module stack: 35 G |
| Storage Temperature | -25 °C |
| Vibration | 5 module stack: 2 G |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How do I get pricing for 855F-SBSC20B24L4Y5Y3?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855F-SBSC20B24L4Y5Y3?
855F-SBSC20B24L4Y5Y3 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855F-SBSC20B24L4Y5Y3?
Key specifications include Build America, Buy America: No; Cable length and termination: 2 m, flying leads, Yellow jacket (except 10 cm and 25 cm quick release pole mount bases); Current consumption: Sound modules: 53 mA; Degree of protection (IP): IP65. The full specification table on this page lists every published attribute for this part.
How quickly can 855F-SBSC20B24L4Y5Y3 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

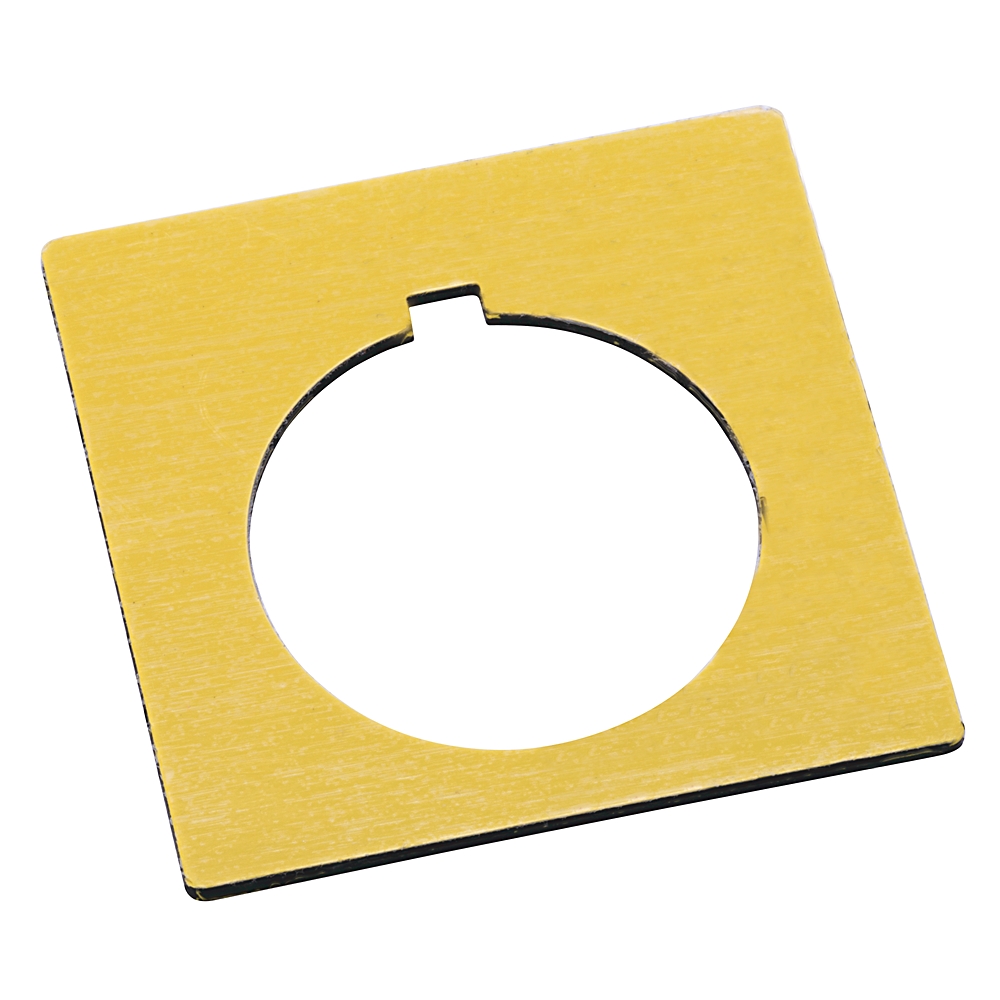

Allen-Bradley Allen-Bradley 30mm 800H Yellow Blank Legend Plate 800H-W700
