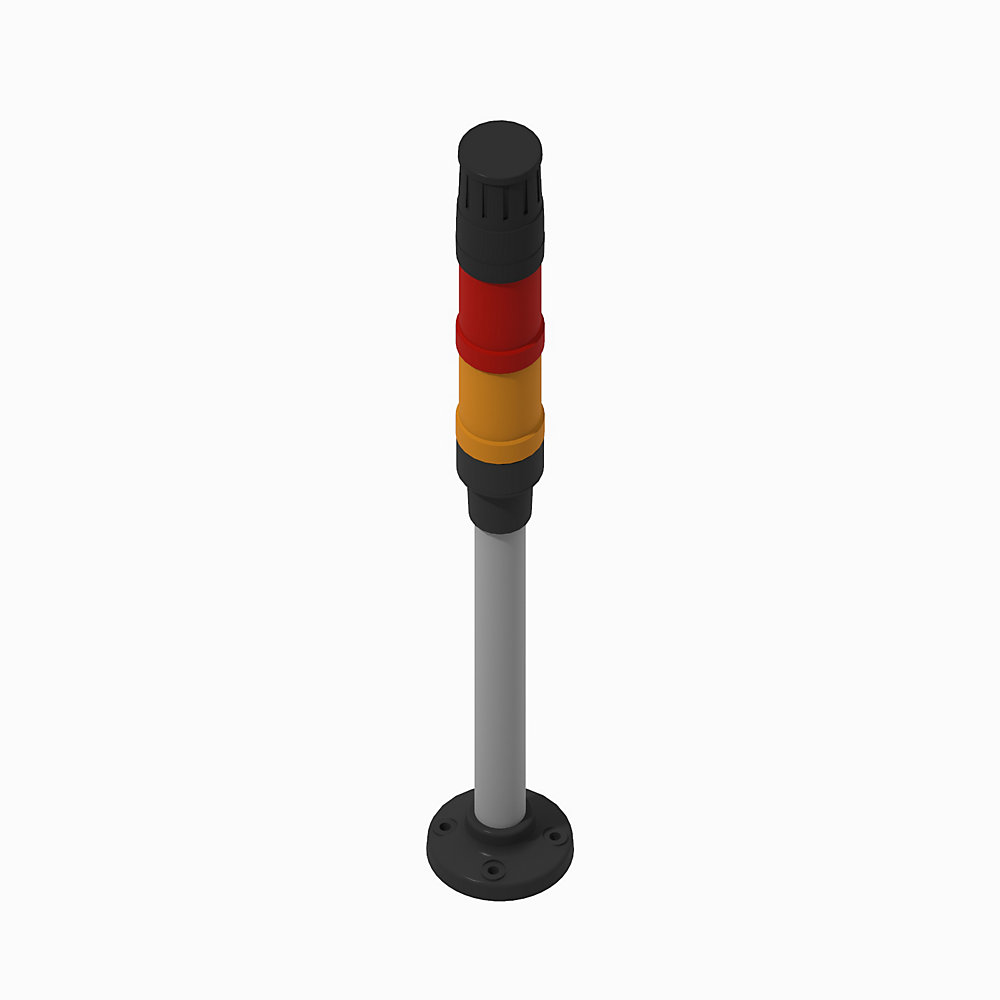

Allen-Bradley 40 mm Config Stack Light 854JC-P25B24L5L4P1
Allen-Bradley 854JC-P25B24L5L4P1 - industrial components - Outer Diameter: 43 mm mm; Material: Rubber seals and gaskets: Nitrile rubber; Operating Temperature: -30 °C.
The 854JC-P25B24L5L4P1 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Outer Diameter: 43 mm mm and Material: Rubber seals and gaskets: Nitrile rubber.
The specification set recorded for this part number covers Operating Temperature: -30 °C; Storage Temperature: -30 °C; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP66; Degree of protection (NEMA): 13; Voltage type for actuating: AC/DC; Shock: 5 module stack: 35 G; Vibration: 5 module stack: 5 G; Rated operating voltage Ue: 24 V; Current consumption: Single tone sounder: 65mA @ 24V AC/DC. The complete technical table is shown in the Specifications tab on this page.
| Base color | Black housing |
|---|---|
| Base type | 25 cm aluminum pole base (It has powder-coated aluminum tube) |
| Build America, Buy America | No |
| Current consumption | Single tone sounder: 65mA @ 24V AC/DC |
| Decibel rating | 80 dBa (non-adjustable), All dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 13 |
| Estimated light output | Level-2 module, red LED: 1793 mcd @ 24V AC/DC |
| Flashing frequency | Approximately 1.5 Hz, time On/time OFF = 1:1 |
| Flashing light | true |
| Function acoustic | true |
| Function flashlight | true |
| Lamp life rating | Level-2 LED module: 50000 h |
| Leakage current impact | All light and sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Level-1 lens color | Amber |
| Level-1 module type | Flashing LED |
| Level-2 lens color | Red |
| Level-2 module type | Flashing LED |
| Level-3 lens color | None, sound only (It must be in the top position of the stack) |
| Level-3 module type | Single-circuit piezo sound module - continuous/pulsing tone (It must be in the top position of the stack) |
| Level-4 lens color | None |
| Level-4 module type | No module |
| Level-5 lens color | None |
| Level-5 module type | No module |
| Lifecycle Status | Discontinued |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Material | Rubber seals and gaskets: Nitrile rubber |
| Operating Temperature | -30 °C |
| Outer Diameter | 43 mm mm |
| Rated operating voltage Ue | 24 V |
| Recommended terminal torque | Screwless terminal blocks |
| Recommended wire size | 0.2 mm² |
| Repair Options Available | No |
| Shock | 5 module stack: 35 G |
| Sound module rating | Level-3 sound module: 20000 h |
| Storage Temperature | -30 °C |
| Tone frequency | Preset at 2500 Hz |
| Vibration | 5 module stack: 5 G |
| Voltage type for actuating | AC/DC |
Frequently Asked Questions
How do I get pricing for 854JC-P25B24L5L4P1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 854JC-P25B24L5L4P1?
854JC-P25B24L5L4P1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 854JC-P25B24L5L4P1?
Key specifications include Base color: Black housing; Base type: 25 cm aluminum pole base (It has powder-coated aluminum tube); Build America, Buy America: No; Current consumption: Single tone sounder: 65mA @ 24V AC/DC. The full specification table on this page lists every published attribute for this part.
How quickly can 854JC-P25B24L5L4P1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

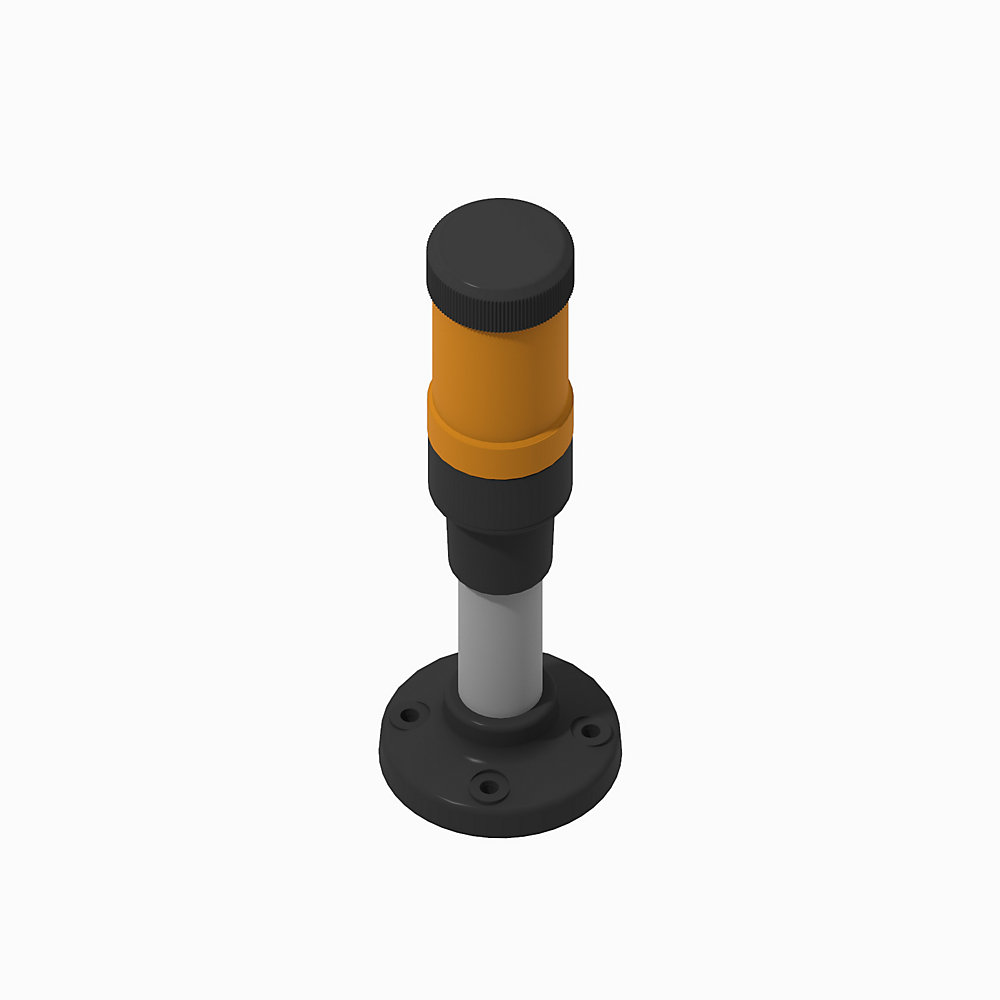

Allen-Bradley Allen-Bradley 40 mm Config Stack Light 854JC-P10B24Y5

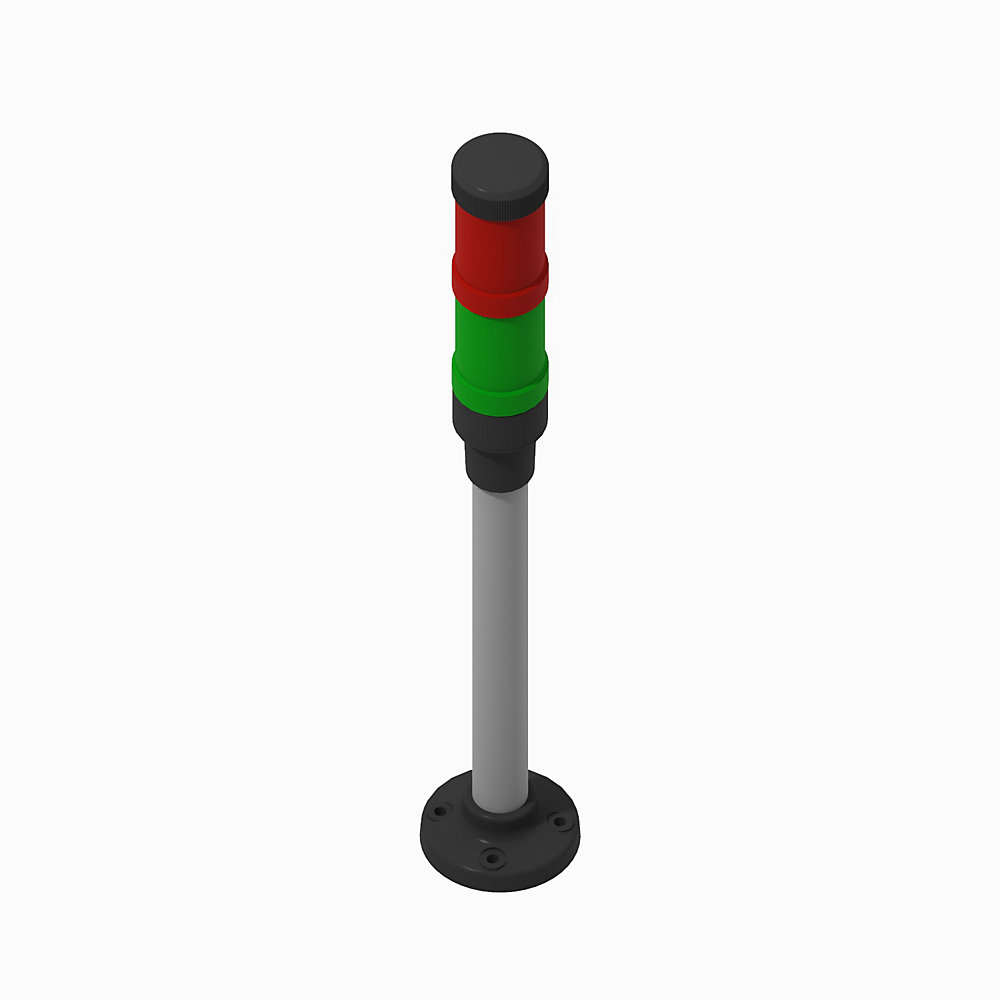

Allen-Bradley Allen-Bradley 40 mm Config Stack Light 854JC-P25B24Y3Y4

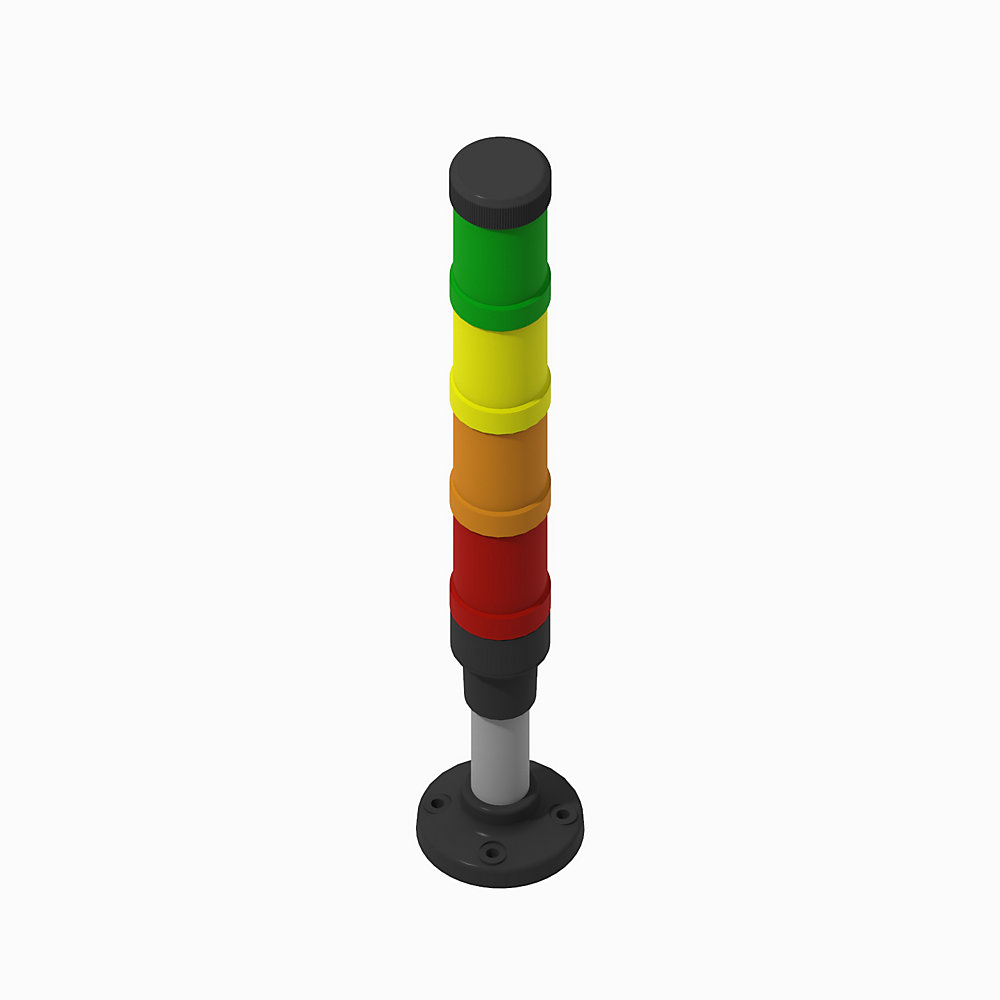

Allen-Bradley Allen-Bradley 40 mm Config Stack Light 854JC-P10B24Y4Y5Y8Y3

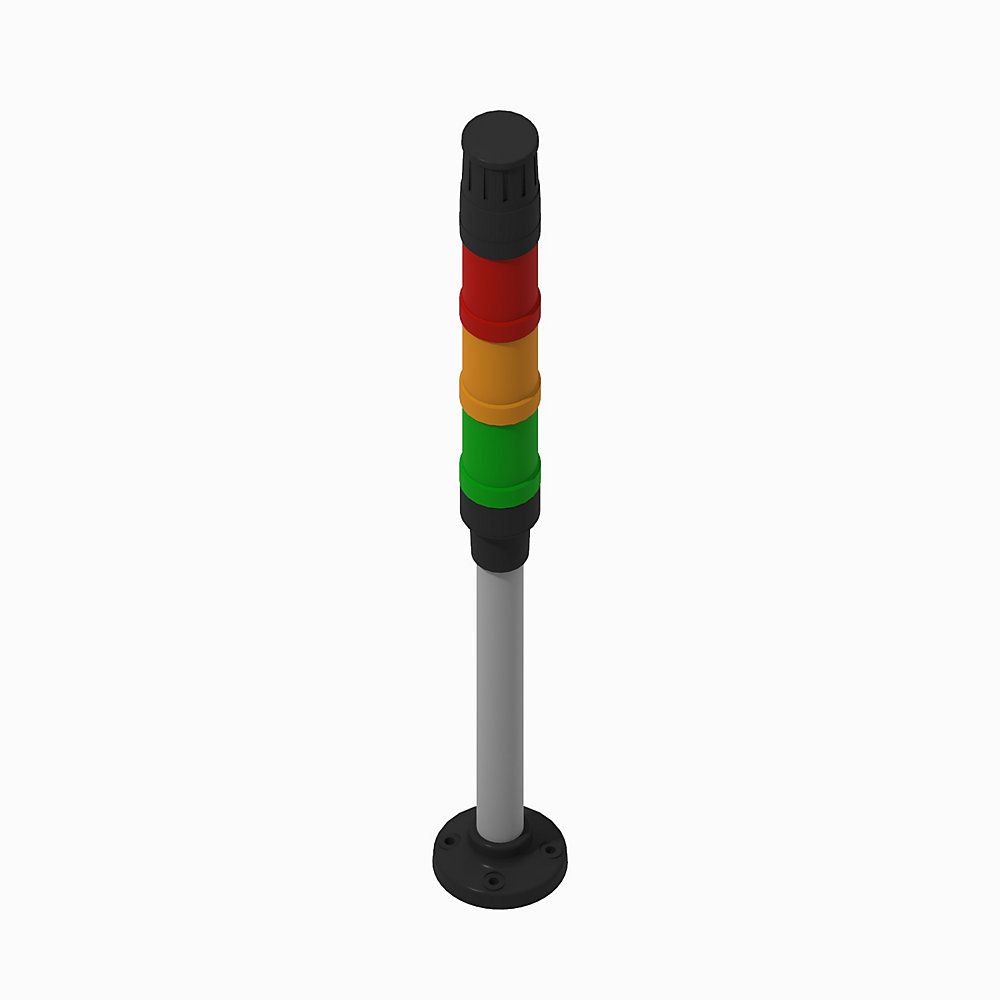

Allen-Bradley Allen-Bradley 40 mm Config Stack Light 854JC-P25B24Y3Y5Y4P1

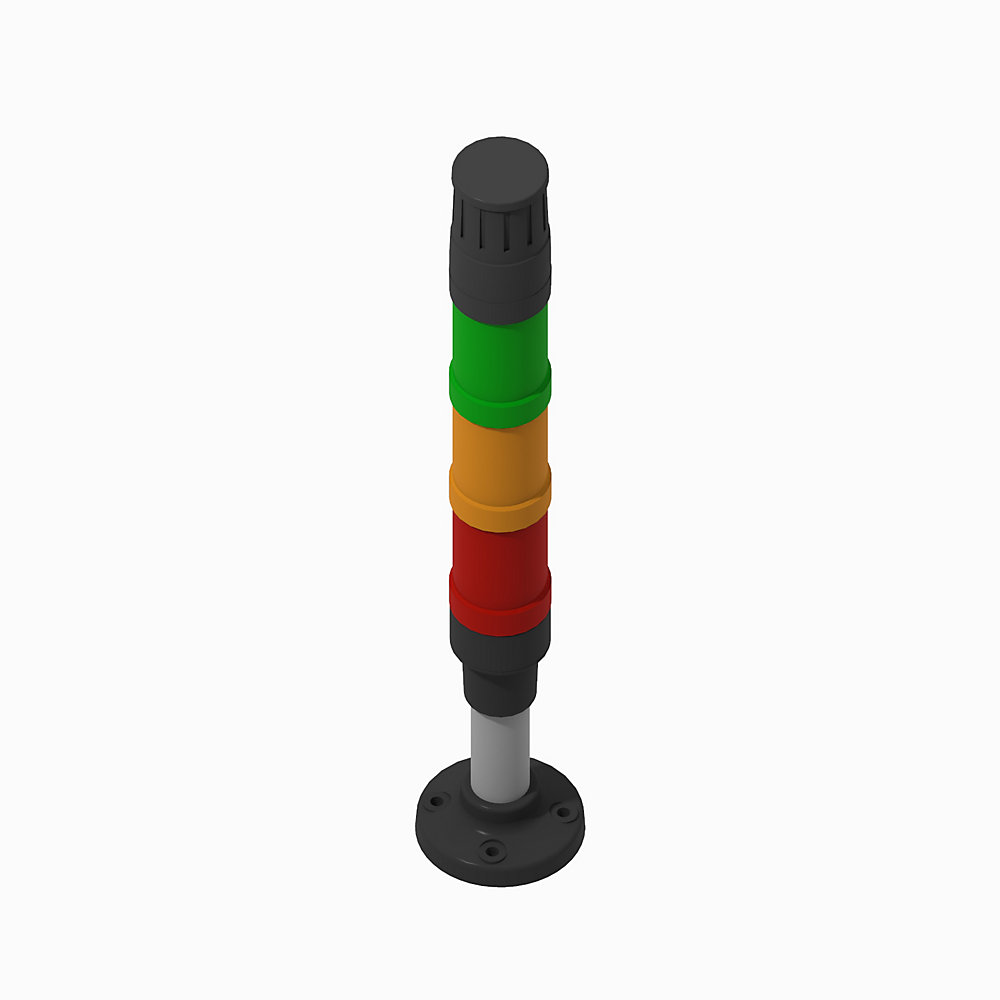

Allen-Bradley Allen-Bradley 40 mm Config Stack Light 854JC-P10B24Y4Y5Y3P1
