Allen-Bradley Sound Module 40 mm Stack Light 854J-B24SA3
Allen-Bradley 854J-B24SA3 - industrial components - Outer Diameter: 43 mm mm; Material: Polycarbonate; Function: Continuous tone/pulse tone.
The 854J-B24SA3 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Outer Diameter: 43 mm mm and Material: Polycarbonate.
Published specifications for this part include Function: Continuous tone/pulse tone; Operating Temperature: -30 °C; Storage Temperature: -30 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP66; Degree of protection (NEMA): 4X; Colour: Black; Current consumption: Single-tone sound modules: 65mA @ 24V AC/DC; Voltage type: AC/DC; List of degrees of protection (NEMA): 4, 4X, 13. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Colour | Black |
| Current consumption | Single-tone sound modules: 65mA @ 24V AC/DC |
| Decibel rating | Single-tone sound module: 80 dBa (non-adjustable), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 4X |
| Design life rating | Average Life under static, no vibration, conditions: 20000h @ 24V AC/DC |
| Function | Continuous tone/pulse tone |
| Leakage current impact | All sound modules can absorb up to 3 mA of leakage current from solid-state outputs without module activation |
| Lifecycle Status | Active |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Material | Polycarbonate |
| Module type | Single-circuit piezo-style steady/pulsing DIP switch selectable |
| Operating Temperature | -30 °C |
| Operating voltage at DC | 24 V |
| Outer Diameter | 43 mm mm |
| Repair Options Available | No |
| Storage Temperature | -30 °C |
| Tone adjustable | false |
| Tone frequency | Preset at 2500 Hz |
| Voltage type | AC/DC |
Frequently Asked Questions
How do I get pricing for 854J-B24SA3?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 854J-B24SA3?
854J-B24SA3 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 854J-B24SA3?
Key specifications include Build America, Buy America: No; Colour: Black; Current consumption: Single-tone sound modules: 65mA @ 24V AC/DC; Decibel rating: Single-tone sound module: 80 dBa (non-adjustable), all dBa ratings are determined at a distance of 1 m (3.3 ft) from the sound module. The full specification table on this page lists every published attribute for this part.
How quickly can 854J-B24SA3 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

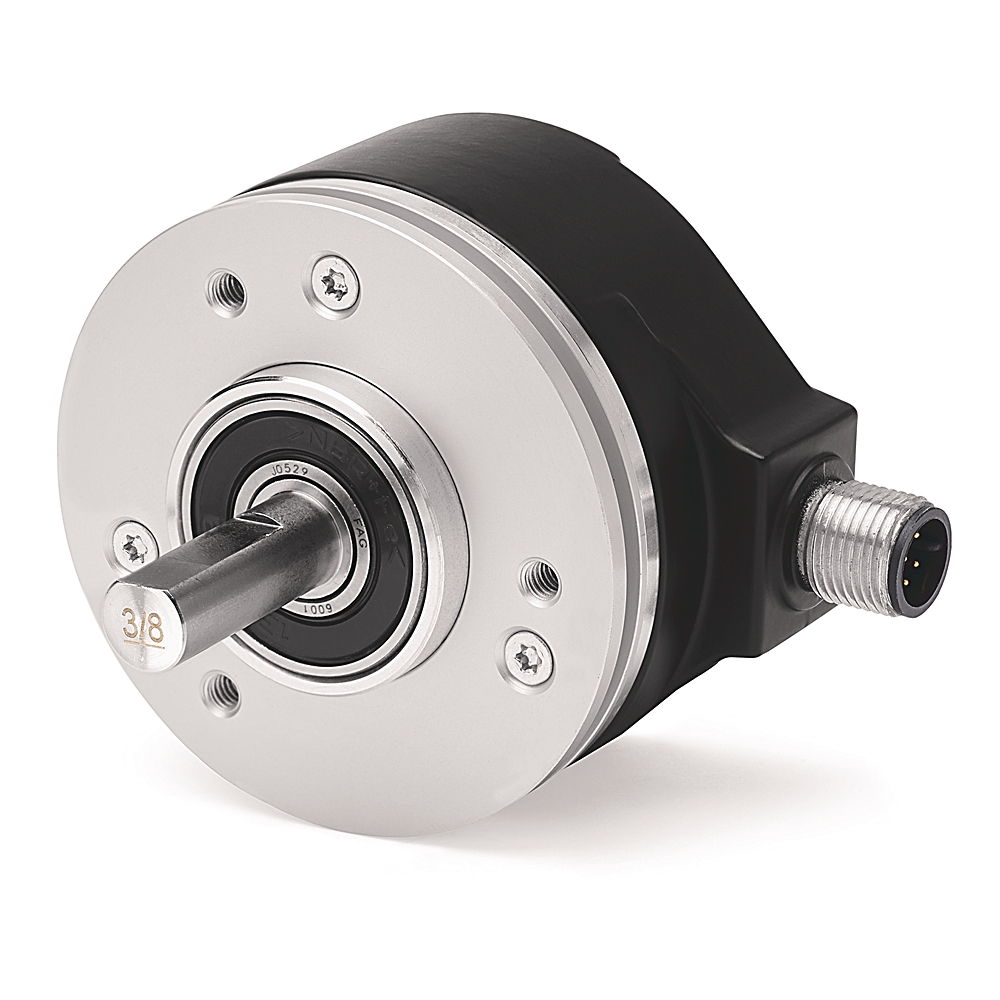

Allen-Bradley Allen-Bradley Incremental Encoder 847H-EK2A-RQ02500
Allen-Bradley Allen-Bradley Mounting Base 40 mm Stack Light 854J-BNPTC
Allen-Bradley Allen-Bradley 40 mm Config Stack Light 854JC-NPTB24L4Y3B7Y5P1

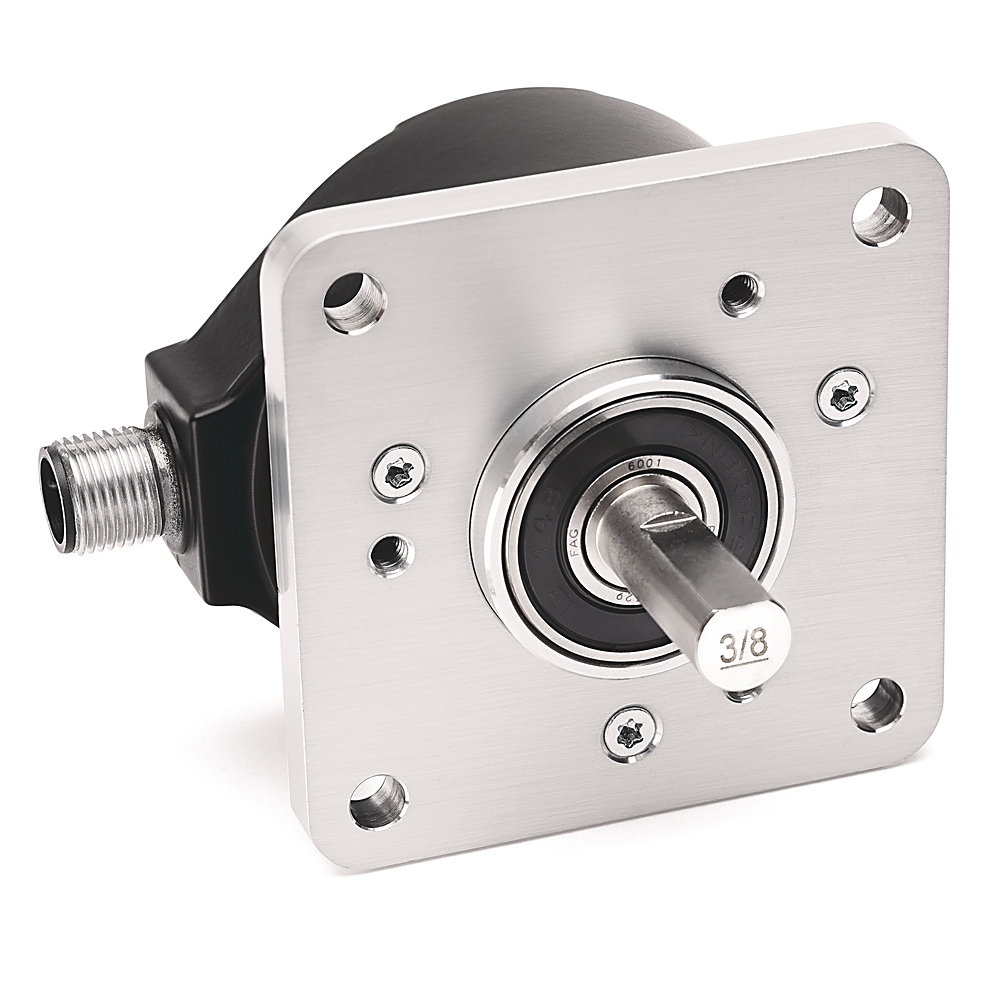

Allen-Bradley Allen-Bradley Incremental Encoder 847H-DN2D-RQ00050
