Allen-Bradley Solid-State Temperature Sensor 837T-N1N14A50A-D4
Allen-Bradley 837T-N1N14A50A-D4 - industrial components - Output: 4...20 mA analog only; Storage Temperature: -40 °C; Operating pressure: 270 bar with 6 mm (0.24 in) sensor diam.
The Allen-Bradley 837T-N1N14A50A-D4 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Output: 4...20 mA analog only and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Operating pressure: 270 bar with 6 mm (0.24 in) sensor diam; Ambient temperature: -40 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 50 G (1.76 oz) 6 ms, 3 axis, 3 faces, 3 times for each face (IEC 60068-2-27, mechanical); Vibration: 10...2000 Hz, 20 G (0.70 oz) (per IEC 60751-2-6, under resonance); Connection type: 4 pin DC micro (M12); Humidity: 5...95% (according to IEC 60654-1); Response time: T05 <5 s (per DIN EN 60751), T09 <10 s (per DIN EN 60751); Power Supply: 10...30V DC; Reverse polarity protection: Analog + vs. Analog -. See the Specifications tab on this page for the full technical table.
| Ambient temperature | -40 °C |
|---|---|
| Analogue output 4 mA ... 20 mA | true |
| Build America, Buy America | No |
| Connection type | 4 pin DC micro (M12) |
| Diameter measuring insert | 6 mm |
| Display type | Non-display |
| Humidity | 5...95% (according to IEC 60654-1) |
| Ingress rating | IP67 - M12x1 4 pin, IEC 60529 |
| Length measuring insert | 50 mm |
| Lifecycle Status | Active |
| Load | ≤ power supply -10V/23 mA |
| Long term drift | ≤ ±0.1% of span |
| Measure deviation of the transmitter | ±0.25 K per IEC 60770 |
| Measure element | Pt1000/Class A |
| Mounting Configuration | As required |
| Non-linearity | ≤ ±0.1% of span ±0.2% for measure range, 0 °C (32 °F) |
| Operating pressure | 270 bar with 6 mm (0.24 in) sensor diam |
| Output | 4...20 mA analog only |
| Power Supply | 10...30V DC |
| Process Connection | 1/2 NPT male |
| Repair Options Available | No |
| Response time | T05 <5 s (per DIN EN 60751), T09 <10 s (per DIN EN 60751) |
| Reverse polarity protection | Analog + vs. Analog - |
| Sensor current | <0.3 mA (self-heating can be ignored) |
| Shock | 50 G (1.76 oz) 6 ms, 3 axis, 3 faces, 3 times for each face (IEC 60068-2-27, mechanical) |
| Storage Temperature | -40 °C |
| Switch-on time | <4 s |
| Temperature error | 0.1% of span/10 K Ta (note: span range is 20...300 K) @ -30...+85 °C (-22…+185 °F) in rate temperature range |
| Temperature measuring range | -50 °C |
| Temperature range | '-50 to 150 °C (-58…+302 °F) |
| Total deviation of measurement | Measurement deviation of the measuring element plus the transmitter per IEC 60770 |
| Vibration | 10...2000 Hz, 20 G (0.70 oz) (per IEC 60751-2-6, under resonance) |
Frequently Asked Questions
How do I get pricing for 837T-N1N14A50A-D4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 837T-N1N14A50A-D4?
837T-N1N14A50A-D4 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 837T-N1N14A50A-D4?
Key specifications include Ambient temperature: -40 °C; Analogue output 4 mA ... 20 mA: true; Build America, Buy America: No; Connection type: 4 pin DC micro (M12). The full specification table on this page lists every published attribute for this part.
How quickly can 837T-N1N14A50A-D4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Solid-State Temperature Sensor 837T-N1G14B25A-D4

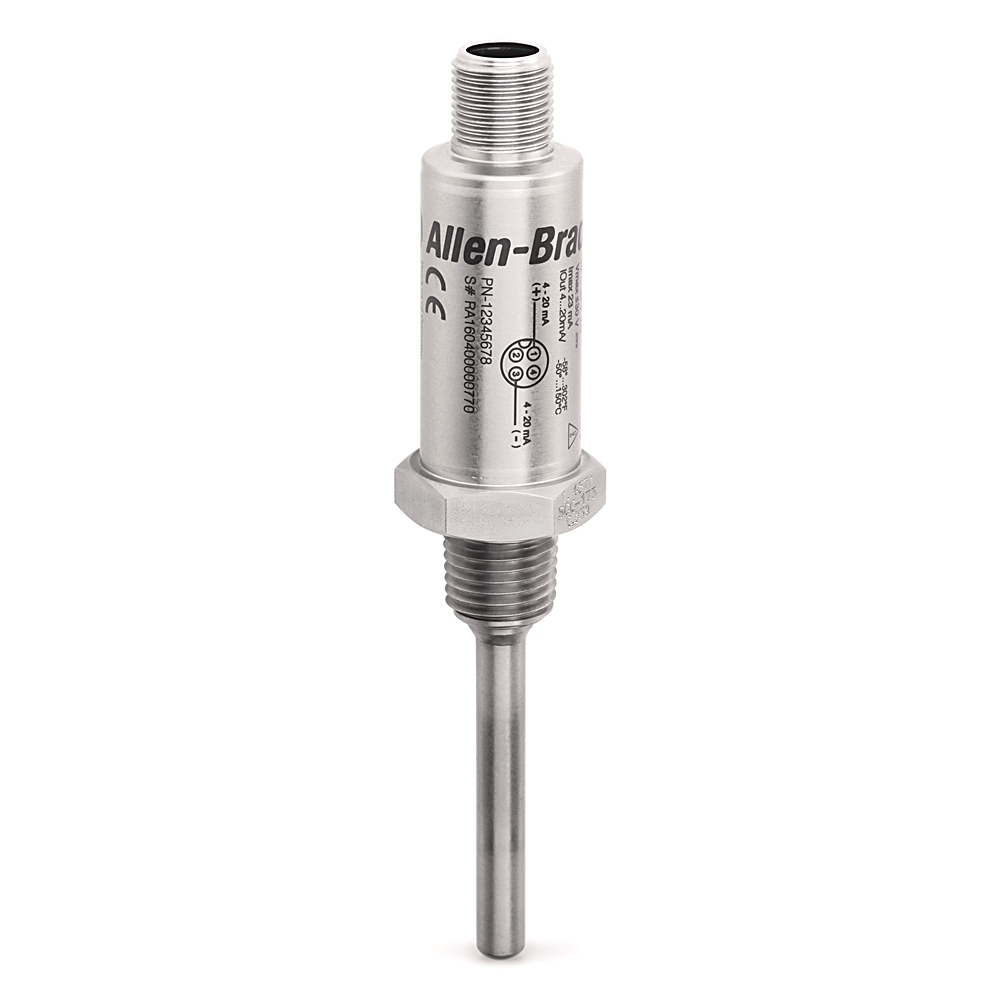

Allen-Bradley Allen-Bradley Solid-State Temperature Sensor 837T-N1N14B10A-D4
Allen-Bradley Allen-Bradley Solid-State Temperature Sensor 837T-N1G14B10A-D4
Allen-Bradley Allen-Bradley Solid-State Temperature Sensor 837T-N1N14B25A-D4

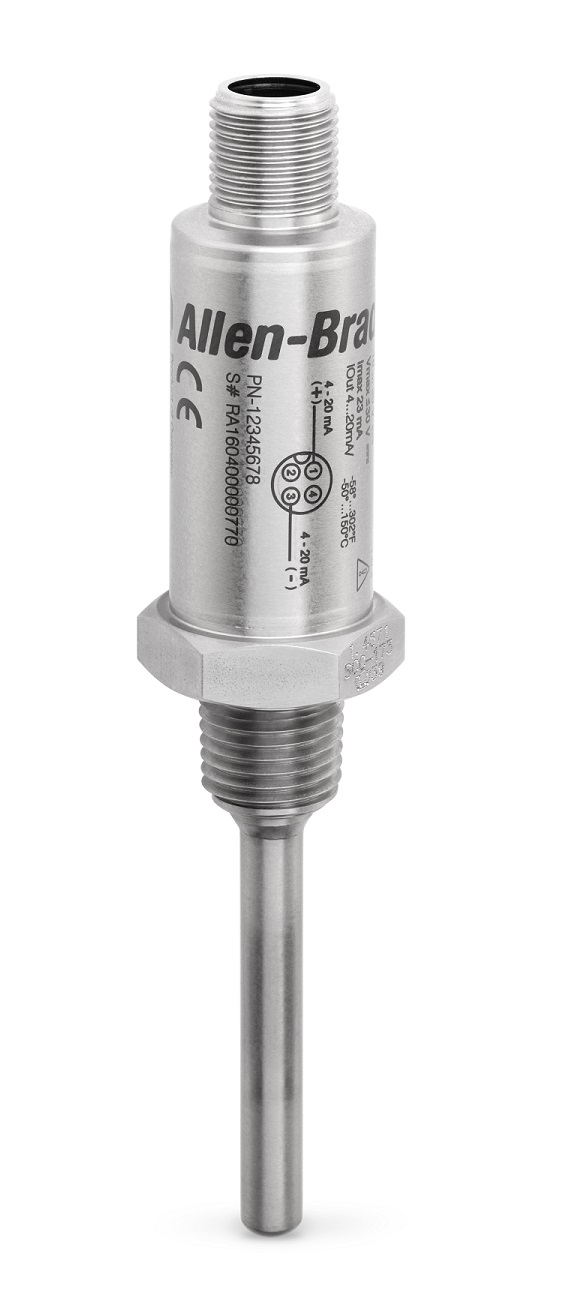

Allen-Bradley Allen-Bradley Solid-State Temperature Sensor 837T-N2N14B15A-D4
