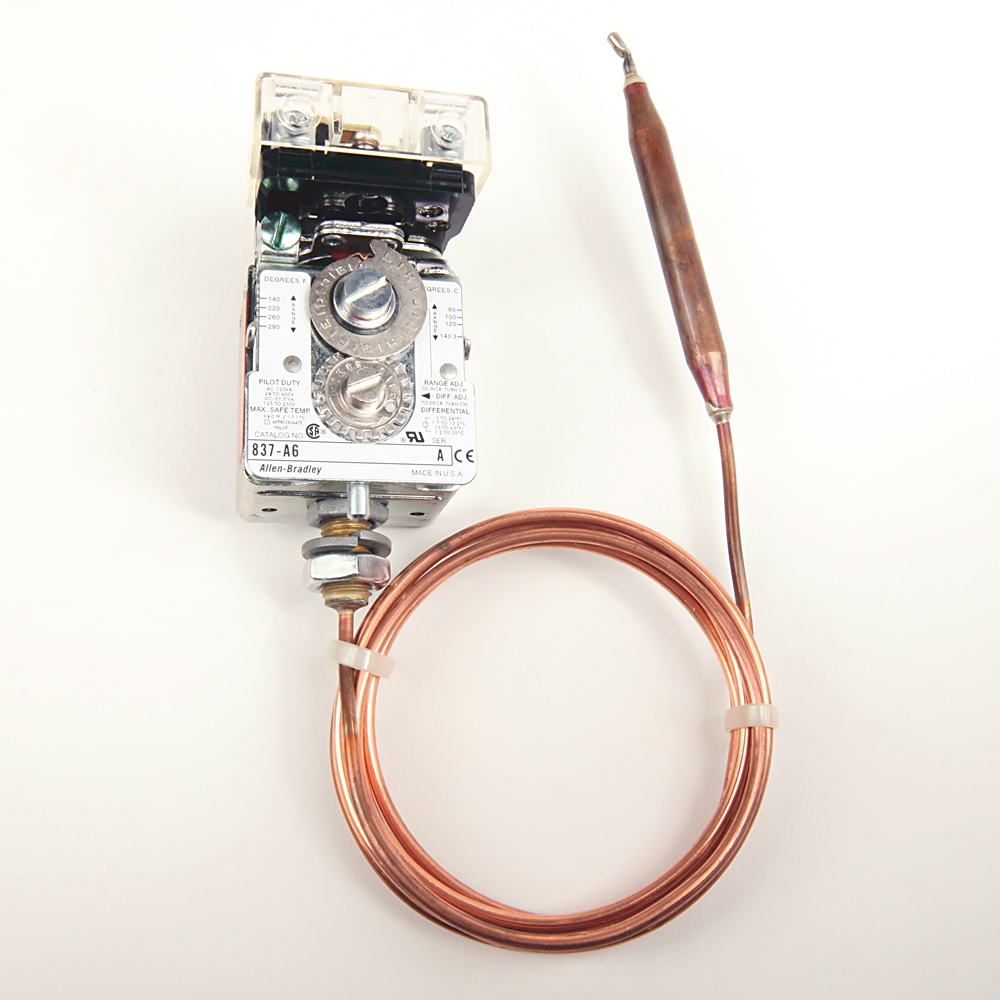

Allen-Bradley Electro-Mech Temp Cntrl Sw 837-A61AX606X15A
Allen-Bradley 837-A61AX606X15A - industrial components - Operating Temperature: -22 °F; Storage Temperature: -22 °F; Lifecycle Status: Active.
This listing covers the Allen-Bradley 837-A61AX606X15A, a part number in the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -22 °F and Storage Temperature: -22 °F.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (NEMA): 1; Depth, approx: 3.25 in; Height, approx: 5.26 in; Weight, approx: 3 lb; Width, approx: 2.56 in; Enclosure type rating: NEMA Type 1; Contact block modification: Ext. manual reset - SPDT (one NC contact), (Non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC 57.5 VA, 115...230V), note: Fixed differential contact block, the inherent differential is approximately three times the publish; Customization: Standard trip/reset settings (the maximum operating range and minimum differential will be factory set for the temperature control switch.); Explosion-proof: false. The complete technical table is shown in the Specifications tab on this page.
| Adjustable differential, max | 3 °F |
|---|---|
| Adjustable differential, mid | 5 °F |
| Adjustable differential, min | 10 °F |
| Build America, Buy America | No |
| Bulb and capillary type | Stainless steel bulb and capillary (required for Type 4X) |
| Bulb length | 3.75 in |
| Capillary bending radius | Stainless Steel: 0.5 in |
| Capillary length | 6 ft |
| Contact block modification | Ext. manual reset - SPDT (one NC contact), (Non-inductive: 5A @ 240V/3A @ 600V/control circuit rating: AC-125 VA, 24...600V/DC 57.5 VA, 115...230V), note: Fixed differential contact block, the inherent differential is approximately three times the publish |
| Customization | Standard trip/reset settings (the maximum operating range and minimum differential will be factory set for the temperature control switch.) |
| Degree of protection (NEMA) | 1 |
| Depth, approx | 3.25 in |
| Device style | Style A, remote bulb and capillary |
| Enclosure type rating | NEMA Type 1 |
| Explosion-proof | false |
| Height, approx | 5.26 in |
| Lifecycle Status | Active |
| Operating Temperature | -22 °F |
| Pilot light modification | No pilot light |
| Repair Options Available | No |
| Storage Temperature | -22 °F |
| Temperature, max | 520 °F |
| Type of sensor | Capillary tube |
| Weight, approx | 3 lb |
| Width, approx | 2.56 in |
Frequently Asked Questions
How do I get pricing for 837-A61AX606X15A?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 837-A61AX606X15A?
837-A61AX606X15A is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 837-A61AX606X15A?
Key specifications include Adjustable differential, max: 3 °F; Adjustable differential, mid: 5 °F; Adjustable differential, min: 10 °F; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 837-A61AX606X15A ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
