Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T350JX15
Allen-Bradley 836T-T350JX15 - industrial components - Width: 88.9 mm mm; Height: 182 mm mm; Operating Temperature: -22 °F.
This listing covers the Allen-Bradley 836T-T350JX15, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 88.9 mm mm and Height: 182 mm mm.
Published specifications for this part include Operating Temperature: -22 °F; Storage Temperature: -22 °F; Electrical connection: Plug; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: Type 1, 4 & 13 industrial use; Degree of protection (IP): IP66; Depth: 76.7 mm; Style: Pressure control; Actuator type: Piston with seal; Pressure connection: 3/8 in. N.P.T.F. female pipe thread SAE 7/16-20 UNF-2B thread O-ring boss seal SAE 9/16-18 UNF-2B thread O-ring boss seal. The complete technical table is shown in the Specifications tab on this page.
| Actuator type | Piston with seal |
|---|---|
| Adjustable differential | 60 psi |
| Adjustable operating range | 80 to 550 psi |
| Build America, Buy America | No |
| Contact block modification | S.P.D.T. 2-circuit contact block-standard |
| Customization | Standard trip/reset settings (the maximum operating range and minimum differential will be factory set for the pressure control switch.) |
| Degree of protection (IP) | IP66 |
| Depth | 76.7 mm |
| Electrical connection | Plug |
| Enclosure Type | Type 1, 4 & 13 industrial use |
| Explosion-proof | false |
| Height | 182 mm mm |
| Lifecycle Status | Active |
| Occasional surge pressures, max | 5000 psi |
| Operating Temperature | -22 °F |
| Operator Type | Piston with seal |
| Pilot light | Red LED pilot light 24V DC |
| Pressure connection | 3/8 in. N.P.T.F. female pipe thread SAE 7/16-20 UNF-2B thread O-ring boss seal SAE 9/16-18 UNF-2B thread O-ring boss seal |
| Rated operational current, break | 720VA @ 72...120V AC |
| Rated operational current, make | 7200VA @ 120...600V AC |
| Repair Options Available | No |
| Storage Temperature | -22 °F |
| Style | Pressure control |
| Suitable for oil | true |
| Suitable for water | true |
| Utilization category | IEC: AC-15, DC-13, NEMA: A600 |
| Width | 88.9 mm mm |
Frequently Asked Questions
How do I get pricing for 836T-T350JX15?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 836T-T350JX15?
836T-T350JX15 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 836T-T350JX15?
Key specifications include Actuator type: Piston with seal; Adjustable differential: 60 psi; Adjustable operating range: 80 to 550 psi; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 836T-T350JX15 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

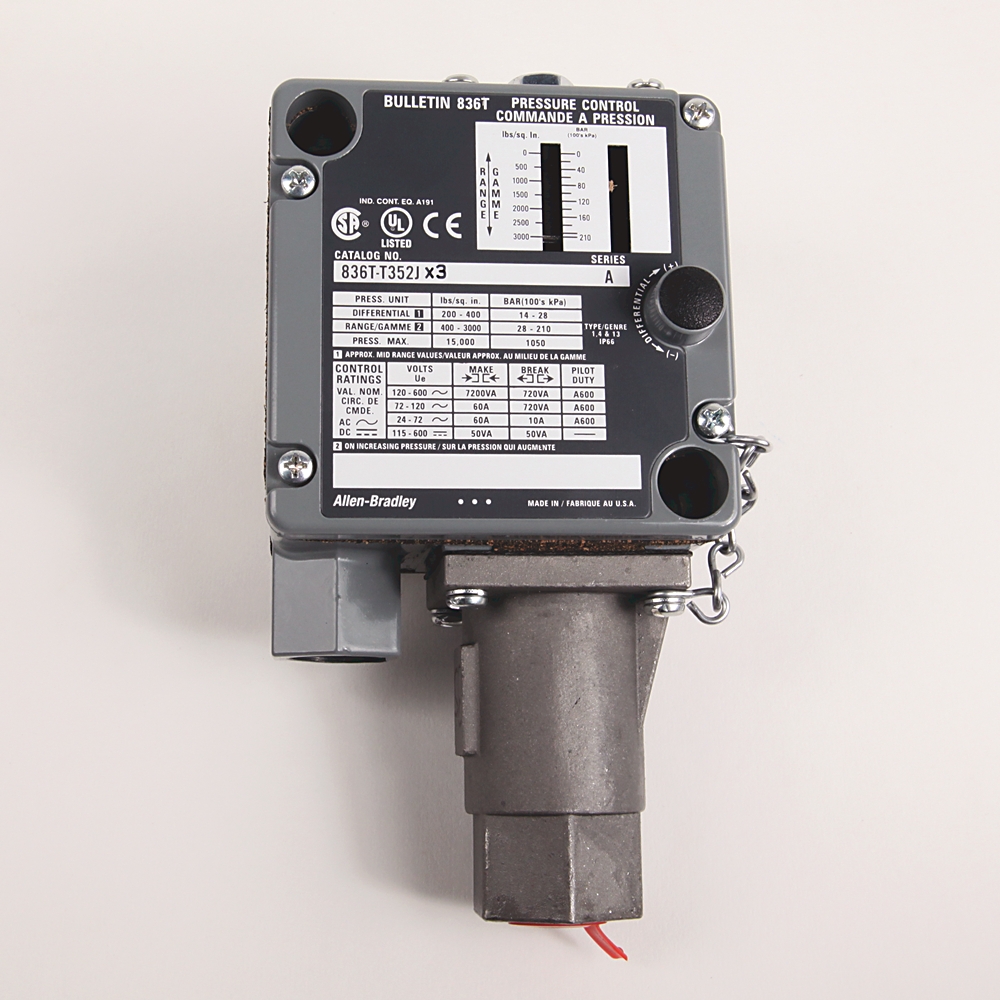

Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T350J
Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T350JX26
Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T303JX21X15

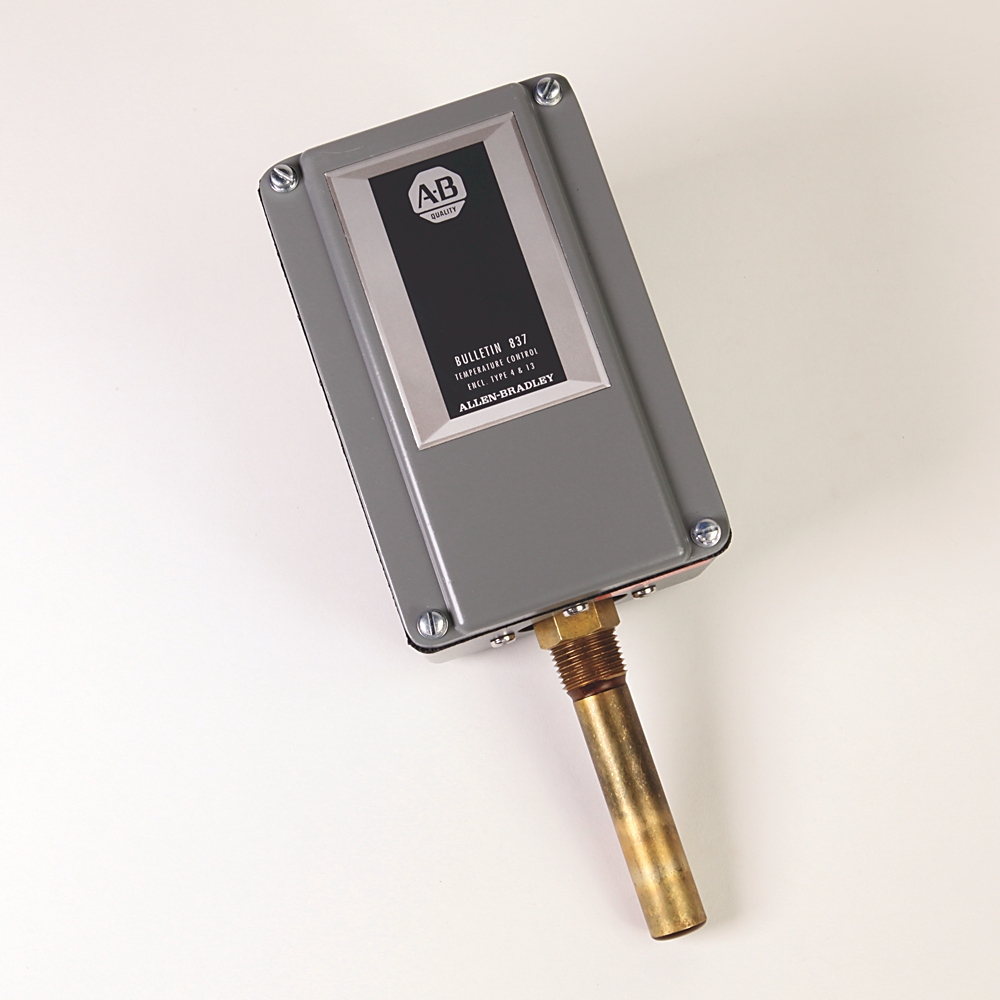

Allen-Bradley Allen-Bradley Electro-Mech Temp Cntrl Sw 837-V3

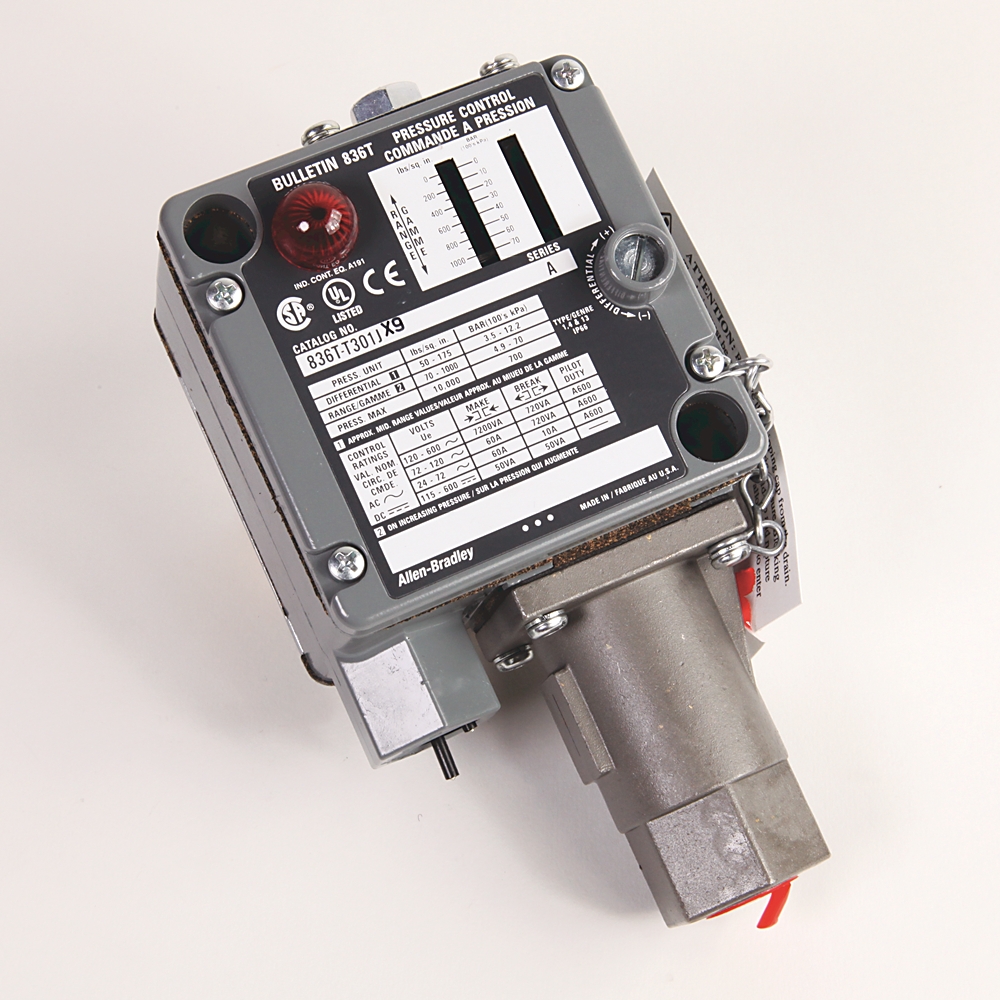

Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T303JX19X7
