Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T303JX40
Allen-Bradley 836T-T303JX40 - industrial components - Width: 88.9 mm mm; Height: 182 mm mm; Operating Temperature: -22 °F.
This listing covers the Allen-Bradley 836T-T303JX40, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 88.9 mm mm and Height: 182 mm mm.
Key manufacturer data on file for this item includes Operating Temperature: -22 °F; Storage Temperature: -22 °F; Electrical connection: Plug; Lifecycle Status: Active; Build America, Buy America: Yes; Repair Options Available: No; Enclosure Type: Type 1, 4 & 13 industrial use; Degree of protection (IP): IP66; Depth: 76.7 mm; Style: Pressure control; Actuator type: Piston without seal; Pressure connection: 3/8 in. N.P.T.F. female pipe thread SAE 7/16-20 UNF-2B thread O-ring boss seal SAE 9/16-18 UNF-2B thread O-ring boss seal. The complete technical table is shown in the Specifications tab on this page.
| Actuator type | Piston without seal |
|---|---|
| Adjustable differential | 260 psi |
| Adjustable operating range | 350 to 5000 psi |
| Build America, Buy America | Yes |
| Contact block modification | D.P.D.T. 4-circuit contact block |
| Custom Trip or Reset Setting | Standard Trip/Reset Setting |
| Customization | Standard trip/reset settings (the maximum operating range and minimum differential will be factory set for the pressure control switch.) |
| Degree of protection (IP) | IP66 |
| Depth | 76.7 mm |
| Electrical connection | Plug |
| Enclosure Type | Type 1, 4 & 13 industrial use |
| Explosion-proof | false |
| Height | 182 mm mm |
| Lifecycle Status | Active |
| Occasional surge pressures, max | 15000 psi |
| Operating Temperature | -22 °F |
| Operator Type | Piston without seal |
| Pressure connection | 3/8 in. N.P.T.F. female pipe thread SAE 7/16-20 UNF-2B thread O-ring boss seal SAE 9/16-18 UNF-2B thread O-ring boss seal |
| Rated operational current, break | 360VA @ 120...240V AC |
| Rated operational current, make | 3600VA @ 120...240V AC |
| Repair Options Available | No |
| Storage Temperature | -22 °F |
| Style | Pressure control |
| Suitable for oil | true |
| Suitable for water | true |
| Utilization category | IEC: AC-15, DC-13, NEMA: B300, R300 |
| Width | 88.9 mm mm |
Frequently Asked Questions
How do I get pricing for 836T-T303JX40?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 836T-T303JX40?
836T-T303JX40 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 836T-T303JX40?
Key specifications include Actuator type: Piston without seal; Adjustable differential: 260 psi; Adjustable operating range: 350 to 5000 psi; Build America, Buy America: Yes. The full specification table on this page lists every published attribute for this part.
How quickly can 836T-T303JX40 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 836T Style T Pressure Controls 836T-T303JX36

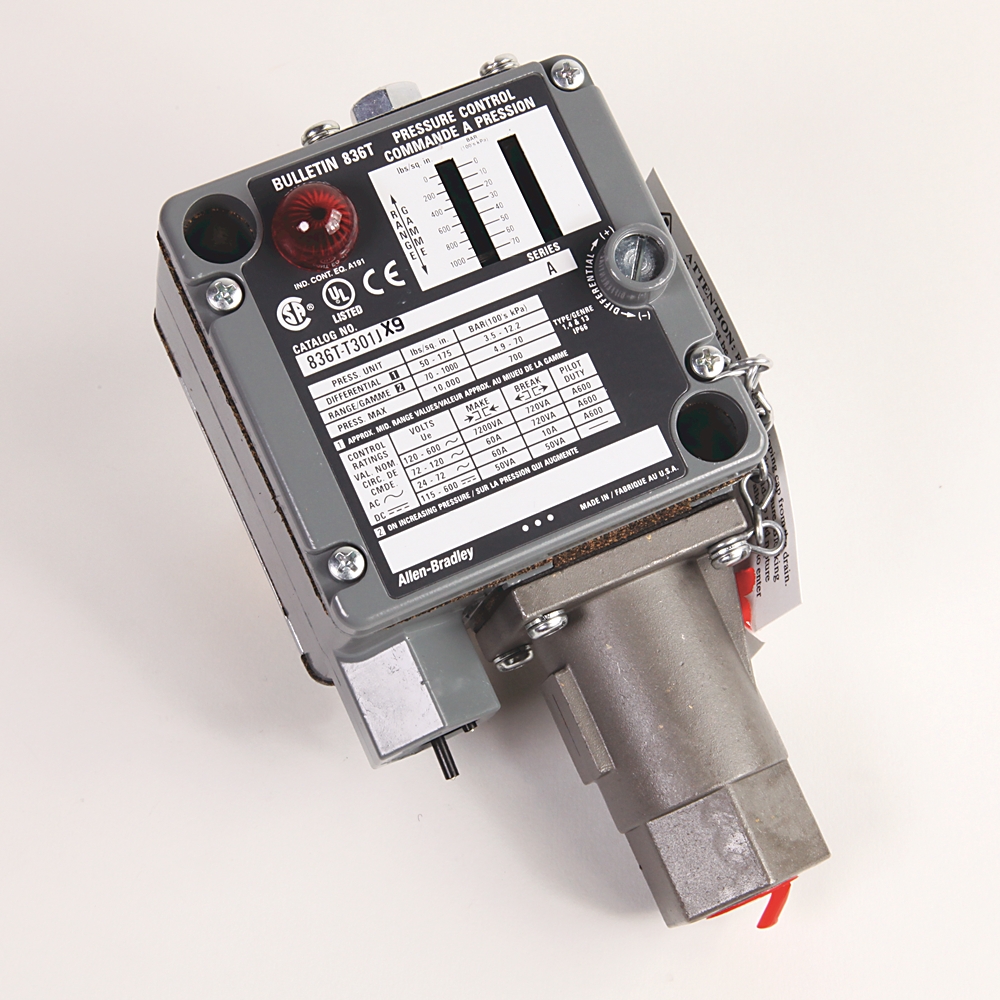

Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T303JX6
Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T302JX6

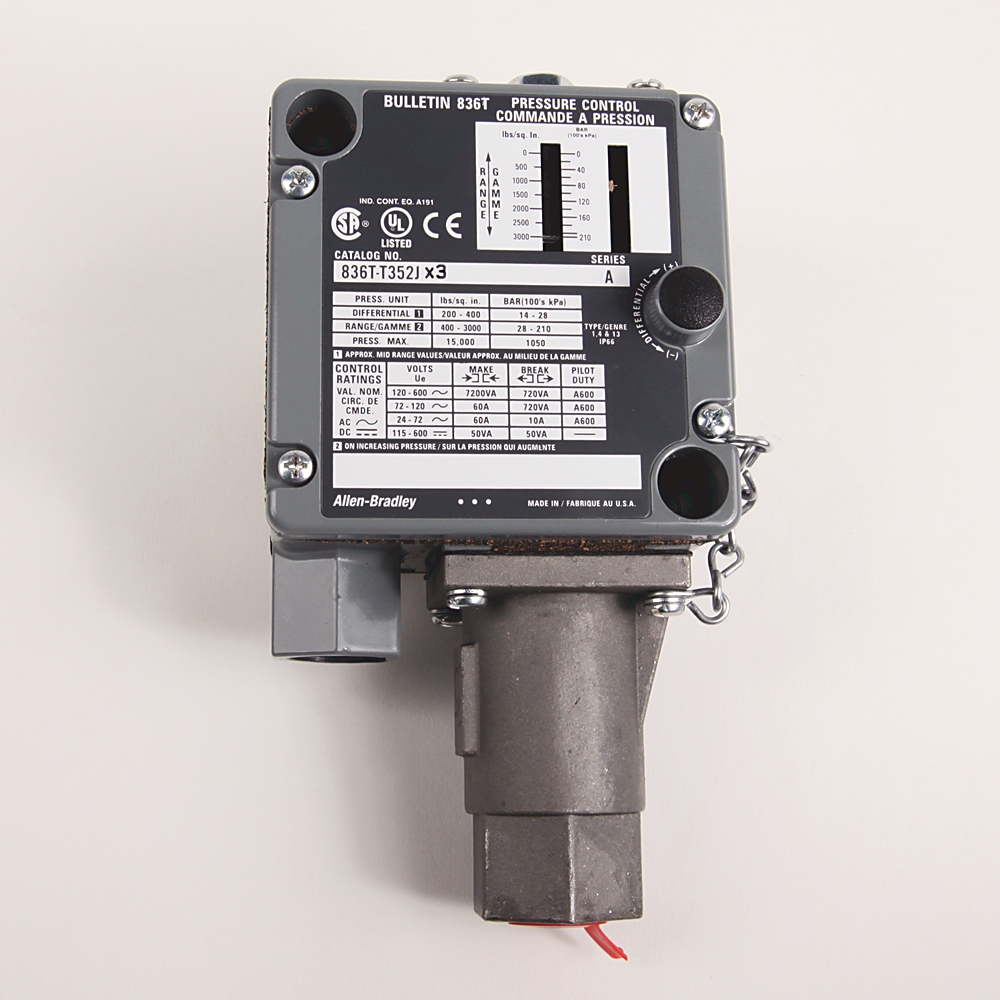

Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T350E

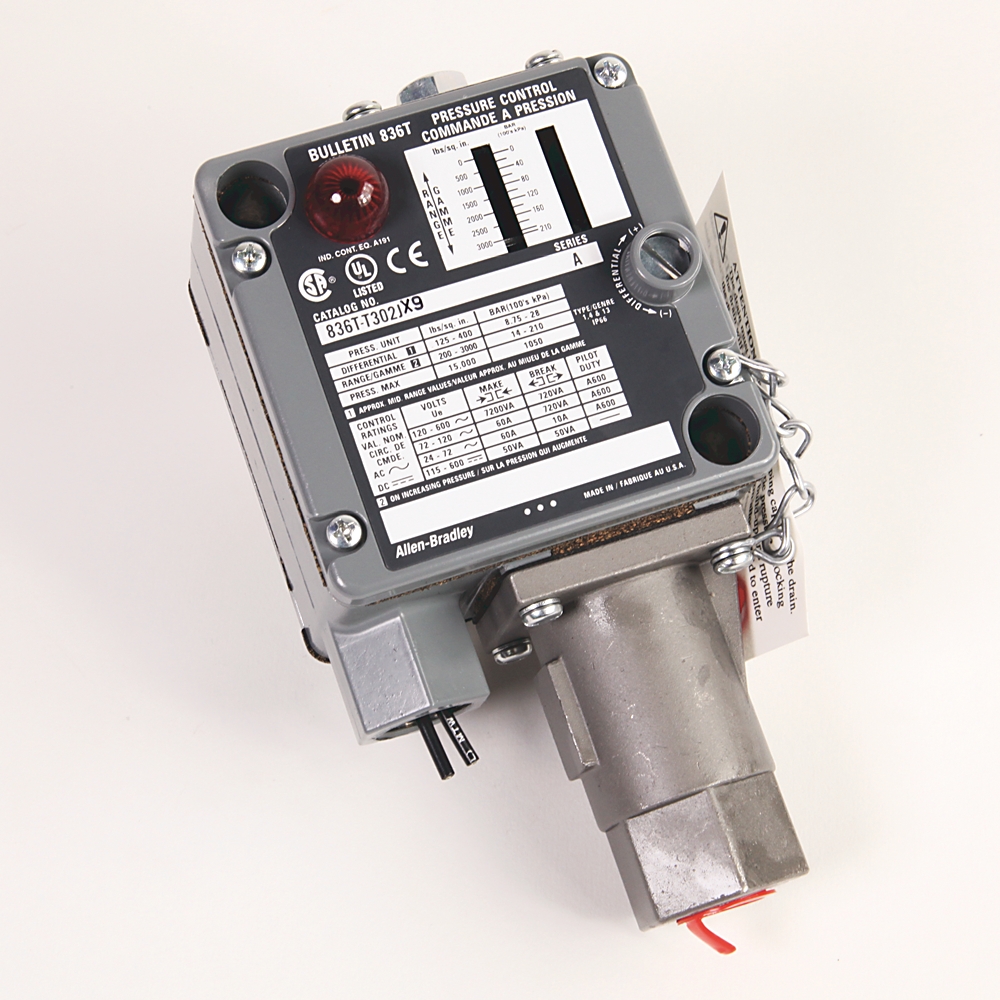

Allen-Bradley Allen-Bradley Electro-Mech Pres Cntrl Sw 836T-T302JX25
