Allen-Bradley Standard Solid-State Pressure Sensor 836P-D2NMGB36PA-D4
Brand: Allen-Bradley
SKU: 836P-D2NMGB36PA-D4
Ships Same Day*
Worldwide Shipping
| Ambient temperature | -20 to 80 °C (-4 to 176 °F) |
|---|---|
| Atmospheric pressure | 950 mbar |
| Build America, Buy America | No |
| Connection type | 4 pin DC micro (M12) |
| Current consumption | With IO-Link: maximum 450 mA including switching current |
| Cycle time, min | 3 ms |
| Data storage support | true |
| Degree of protection (IP) | IP67 |
| Display | ≤±1% of span ±1 digit |
| Housing material | Stainless steel |
| Humidity | 45...75 % r. h. |
| Ingress rating | IP65 and IP67. The stated ingress protection (per IEC 60529) only applies when plugged in with mating connectors that have the appropriate ingress protection |
| Insulation voltage | 500V DC |
| IO-link protocol | Version 1.1 |
| Lifecycle Status | Active |
| Load | Analog signal 4...20 mA: ≤0.5 kΩ |
| Long term drift | ≤±0.2% of span (IEC 61298-2) |
| Lower pressure range | 0 psi |
| Material | Wetted parts: process connection: Stainless Steel 316 L, pressure sensing elements: <9.8 bar: Stainless Steel 316 L, ≥9.8 bar: Stainless Steel 13-8 PH, non-wetted parts: housing: Stainless steel 304, keyboard: TPE-E, display window: Polycarbonate, display |
| Measuring element | Piezo |
| Media | -20 °C |
| Model type | Standard |
| Non-linearity | ≤±0.5% of span (BFSL, IEC 61298-2) |
| Operating Temperature | 15 °F |
| Output | 1xPNP, 1x analog IO-link |
| Output mode | Selectable - normally open, normally closed, window, hysteresis |
| Output signal | 4 - 20 mA |
| Output threshold | OUT 1 and OUT 2 are individually adjustable |
| Output Voltage | Power supply -1 V |
| Overpressure limit | 2 times. 1.7 times for the relative pressure measuring ranges 16 psi, 1000 psi, and 1500 psi |
| Overvoltage protection | 40V DC |
| Position, nom | Process connection lower mount (LM) |
| Power Supply | 15…35V DC |
| Pressure type | Gauge |
| Process data length | 16 bit (frame 2.2) |
| Rate | COM2 (38.4 k Baud) |
| Rated output current | With IO-link : OUT1 maximum 100 mA, OUT2 maximum 250 mA |
| Readable | true |
| Repair Options Available | No |
| Reverse polarity protection | V+ vs. V- |
| Sensor model | Standard |
| Service life | 100000000 switching cycles |
| Settling time | Switching output : 20 ms with IO-link |
| Shock | 50 G (1.76 oz) (IEC 60068-2-27, mechanical) |
| Short circuit protection | 4...20 mA, Out 1/Out 2 vs. V- |
| Storage Temperature | -20 °F |
| Suitable for air | true |
| Suitable for gases | true |
| Suitable for steam | true |
| Suitable for water | true |
| Switching output | Switch point accuracy: ≤±1% of span, adjustment accuracy: ≤±0.5% of span |
| Temperature coefficient | In rated temperature range: mean TC zero point: ≤±0.2% of span/10 K (typical), mean TC span: ≤±0.1% of span/10 K (typical) |
| Temperature error | In rate temperature range: typical: ≤±1% of span, maximum: ≤±2.5% of span |
| Thread Size | 1/4 NPT male |
| Upper Pressure Range | 362 psi |
| Vibration | 10 G (0.35 oz) (IEC 60068-2-6, under resonance) |
| With display | true |
| With temperature sensor | false |
| Zero offset adjustment | Maximum 3% of span |
Frequently Asked Questions
How do I get pricing for 836P-D2NMGB36PA-D4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 836P-D2NMGB36PA-D4?
836P-D2NMGB36PA-D4 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 836P-D2NMGB36PA-D4?
Key specifications include Ambient temperature: -20 to 80 °C (-4 to 176 °F); Atmospheric pressure: 950 mbar; Build America, Buy America: No; Connection type: 4 pin DC micro (M12). The full specification table on this page lists every published attribute for this part.
How quickly can 836P-D2NMGB36PA-D4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Standard Solid-State Pressure Sensor 836P-D2NMGB30PA-D4
SKU: 836P-D2NMGB30PA-D4
Same-day dispatch*
Allen-Bradley Allen-Bradley Standard Solid-State Pressure Sensor 836P-D2NMGB50PA-D4
SKU: 836P-D2NMGB50PA-D4
Same-day dispatch*
Allen-Bradley Allen-Bradley Standard Solid-State Pressure Sensor 836P-D2NMGB25PA-D4
SKU: 836P-D2NMGB25PA-D4
Same-day dispatch*
Allen-Bradley Allen-Bradley Standard Solid-State Pressure Sensor 836P-D2NMGC14PA-D4
SKU: 836P-D2NMGC14PA-D4
Same-day dispatch*
Allen-Bradley Allen-Bradley Standard Solid-State Pressure Sensor 836P-D2NMGB14PA-D4
SKU: 836P-D2NMGB14PA-D4
Same-day dispatch*

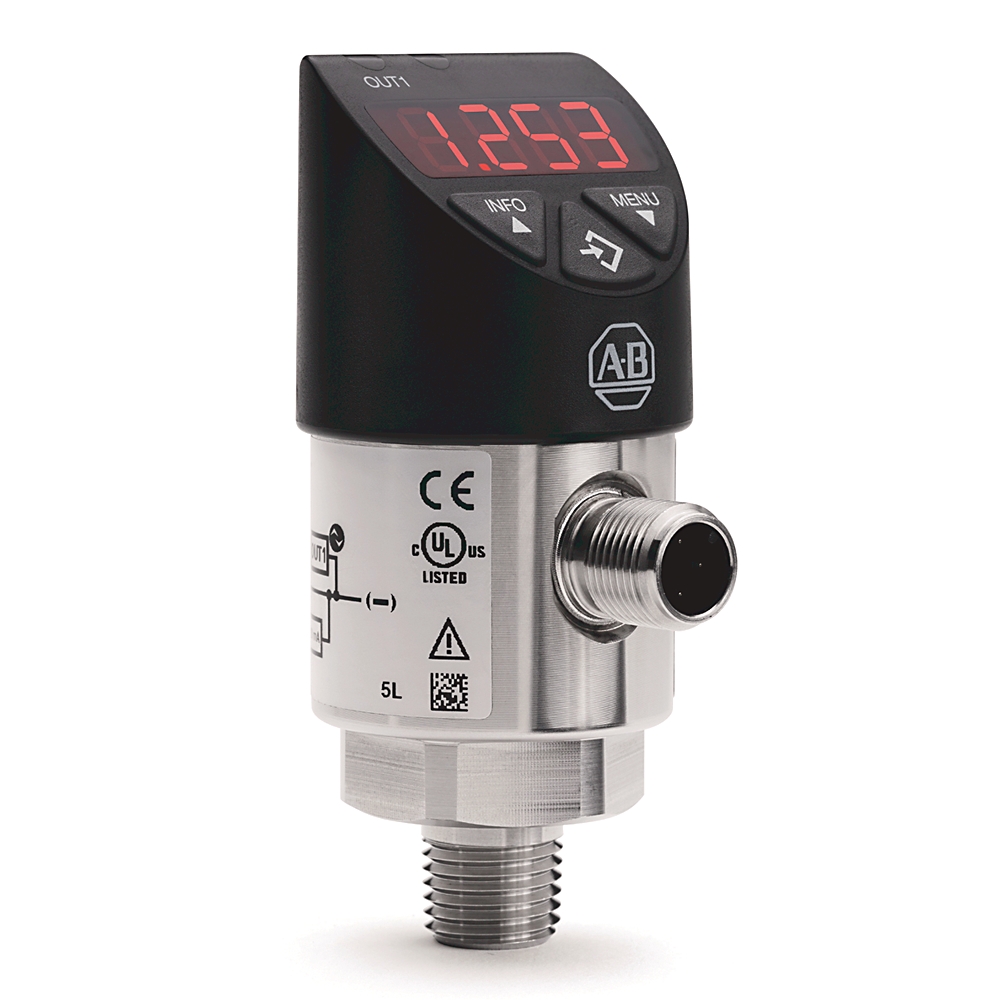

Allen-Bradley Allen-Bradley Standard Solid-State Pressure Sensor 836P-D2NMGC30PA-D4
