Allen-Bradley 30mm Selector Switch 800T PB 800TC-J19KE7B
Allen-Bradley 800TC-J19KE7B - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Selector Switch.
Allen-Bradley 800TC-J19KE7B is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 30mm Selector Switch; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Operator Type: Selector switch; Contact block configuration: 2-NO 2-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 2-NO 2-NC standard contacts |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Lifecycle Status | Discontinued |
| Number of switch positions | 3 |
| Operating Temperature | -25 °C |
| Operator cam code | KE7 |
| Operator cap color | Black with white insert |
| Operator cap type | Knob lever |
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator function | Spring return from right |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Selector switch |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Terminations with finger safe covers | true |
| Type | 30mm Selector Switch |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800TC-J19KE7B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800TC-J19KE7B?
800TC-J19KE7B is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800TC-J19KE7B?
Key specifications include Build America, Buy America: No; Contact block configuration: 2-NO 2-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC. The full specification table on this page lists every published attribute for this part.
How quickly can 800TC-J19KE7B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

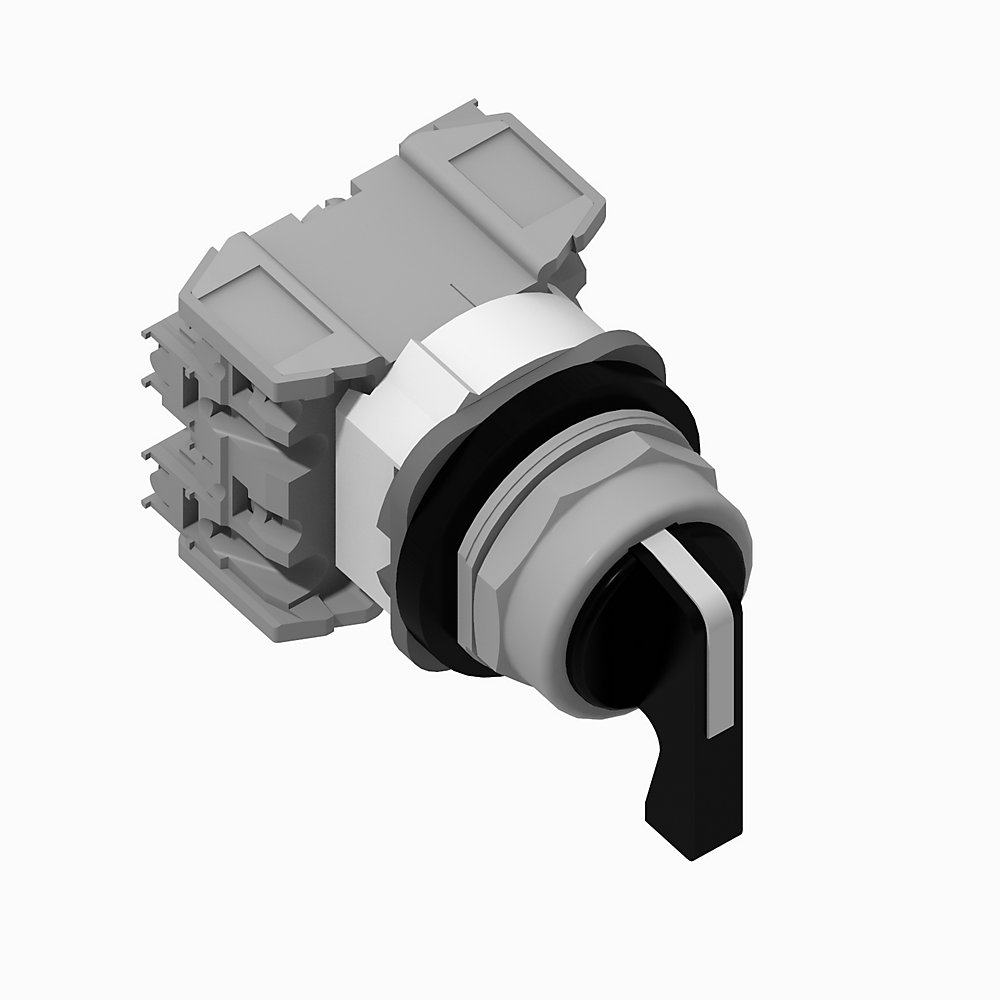

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800TC-J20KD7B
Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800TC-J17KE7B

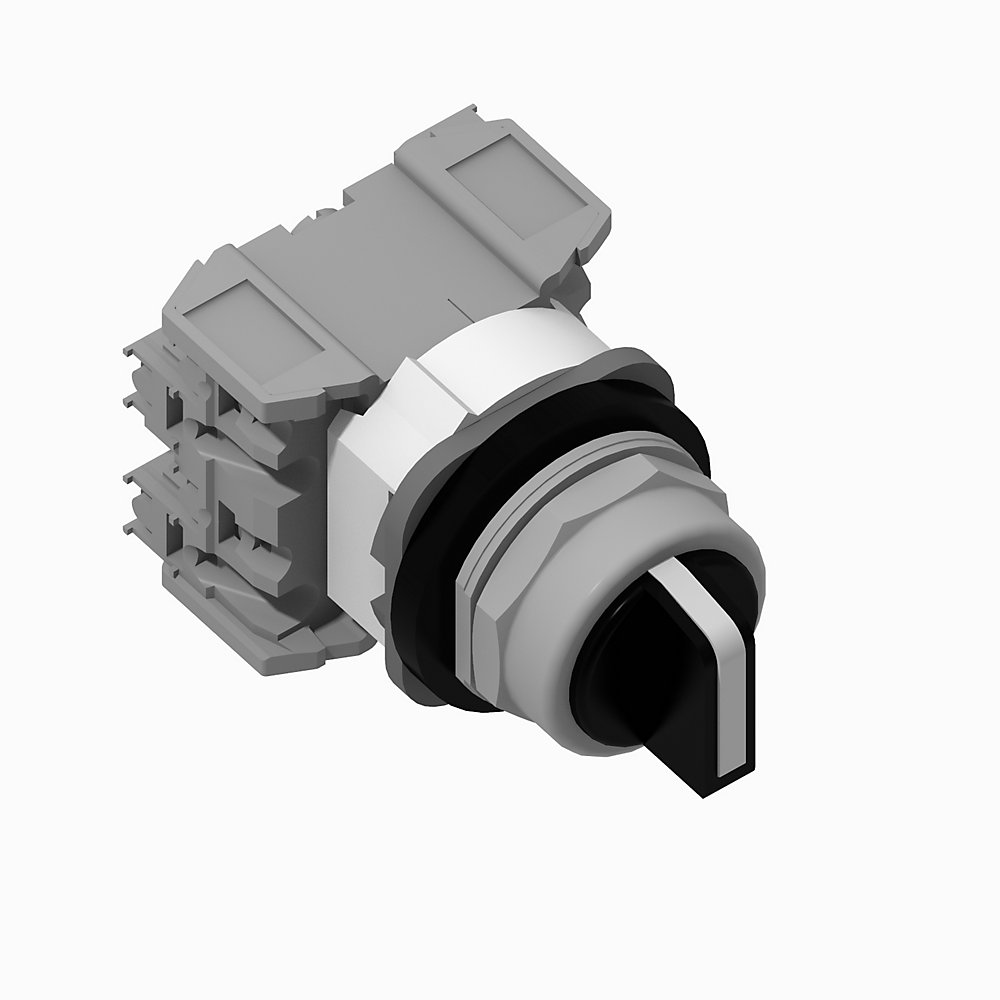

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800TC-J2KC1BV
Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800TC-J17C

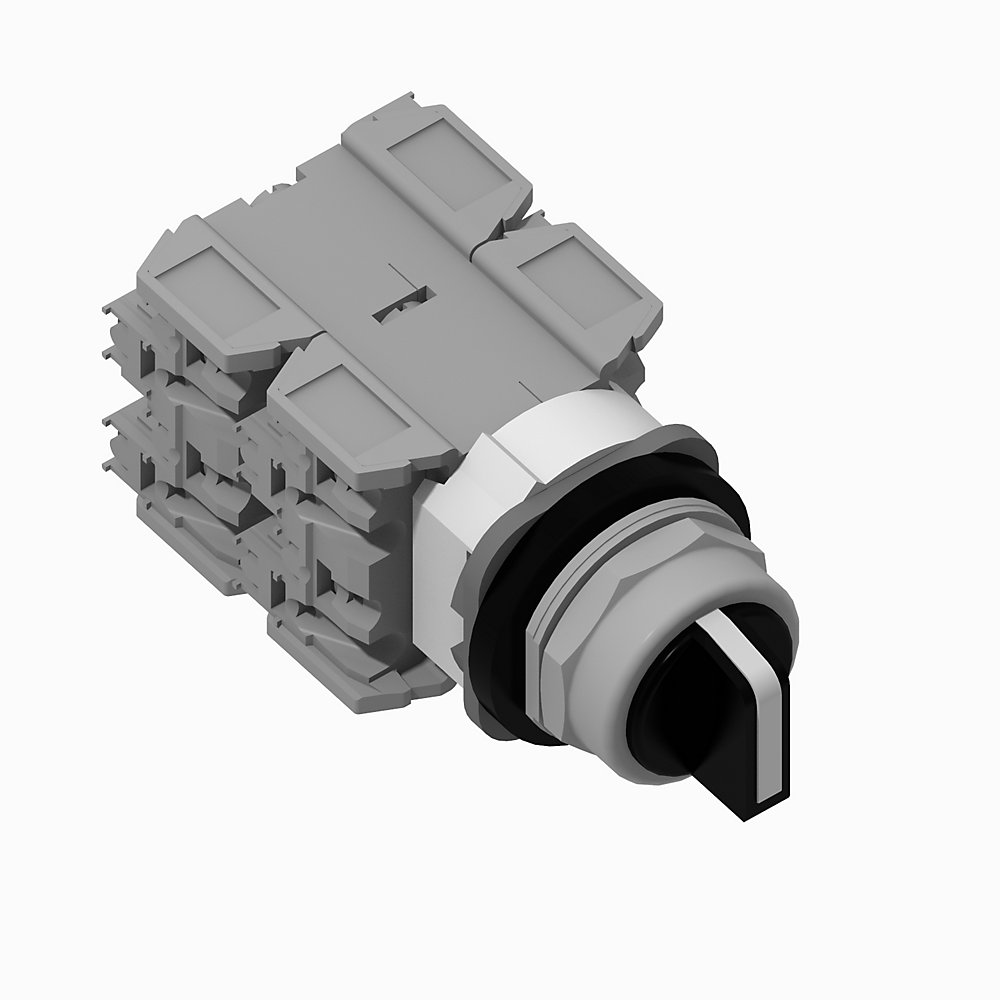

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800TC-J2KC7C
