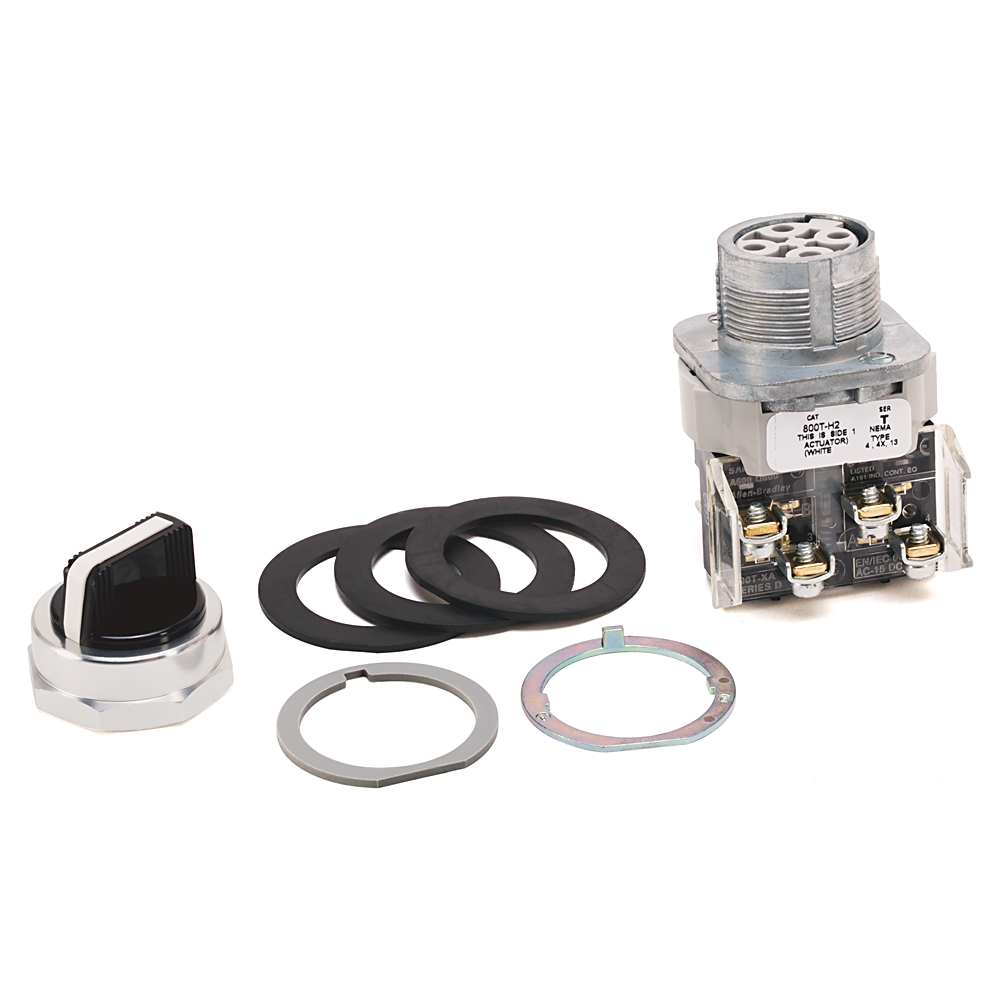

Allen-Bradley 30 mm Selector Switch 800T PB 800T-HX2BY
Allen-Bradley 800T-HX2BY - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
The 800T-HX2BY from Allen-Bradley is listed under Pushbuttons & Pilot Devices in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Operator Type: Selector switch; Contact block configuration: 2-NO 2-NC stackable sealed; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 300V AC @ 150V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: 14 - 18 AWG (x2). See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 2-NO 2-NC stackable sealed |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 300V AC @ 150V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 2.5 A |
| Contact block utilization category (AC) | C300, AC-15 |
| Contact block utilization category (DC) | Q150, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Hazardous location rating | Class I, Div. 2 |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Lifecycle Status | Active |
| Number of switch positions | 2 |
| Operating Temperature | -25 °C |
| Operator cam code | Standard cam |
| Operator cap color | Black with multicolor insert packet |
| Operator cap type | Standard knob |
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator function | Maintained |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Selector switch |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Terminations with finger safe covers | false |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800T-HX2BY?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-HX2BY?
800T-HX2BY is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800T-HX2BY?
Key specifications include Build America, Buy America: No; Contact block configuration: 2-NO 2-NC stackable sealed; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 300V AC @ 150V DC. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-HX2BY ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-HX2B
Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-HX2D1V

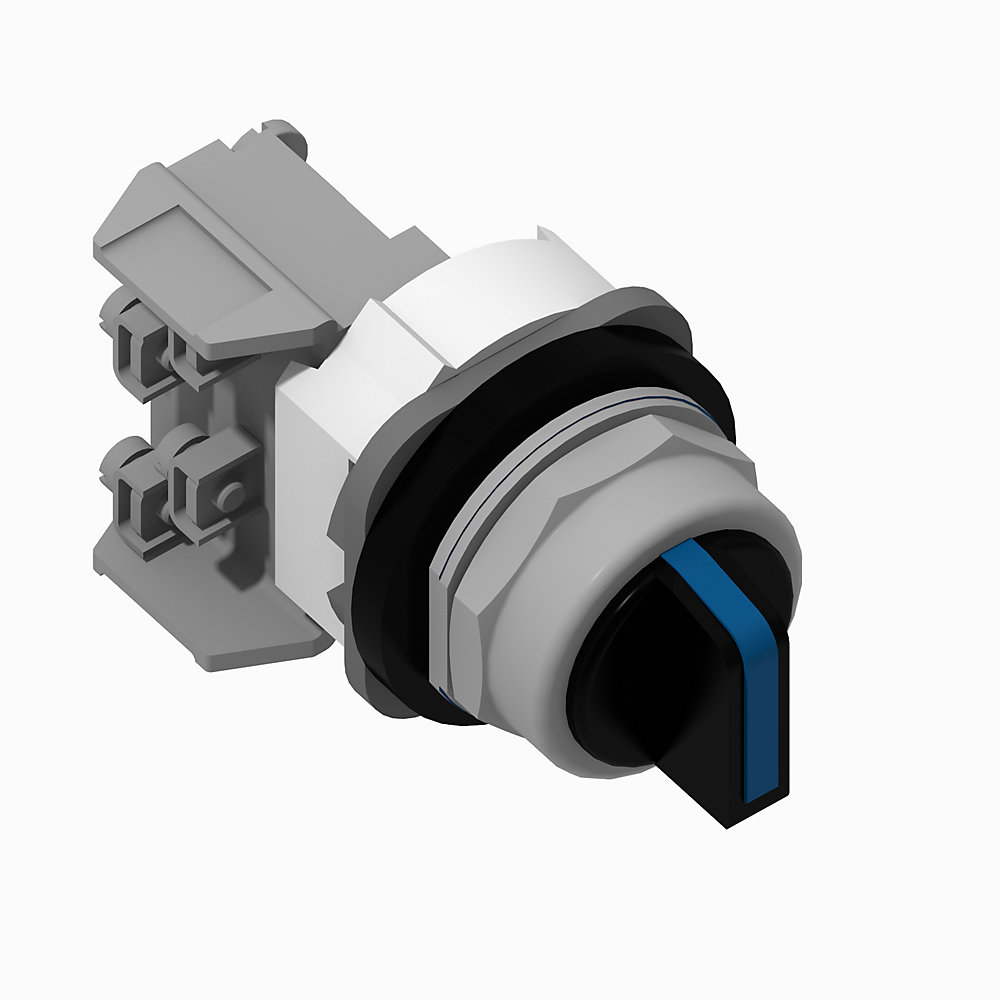

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-HX2A2

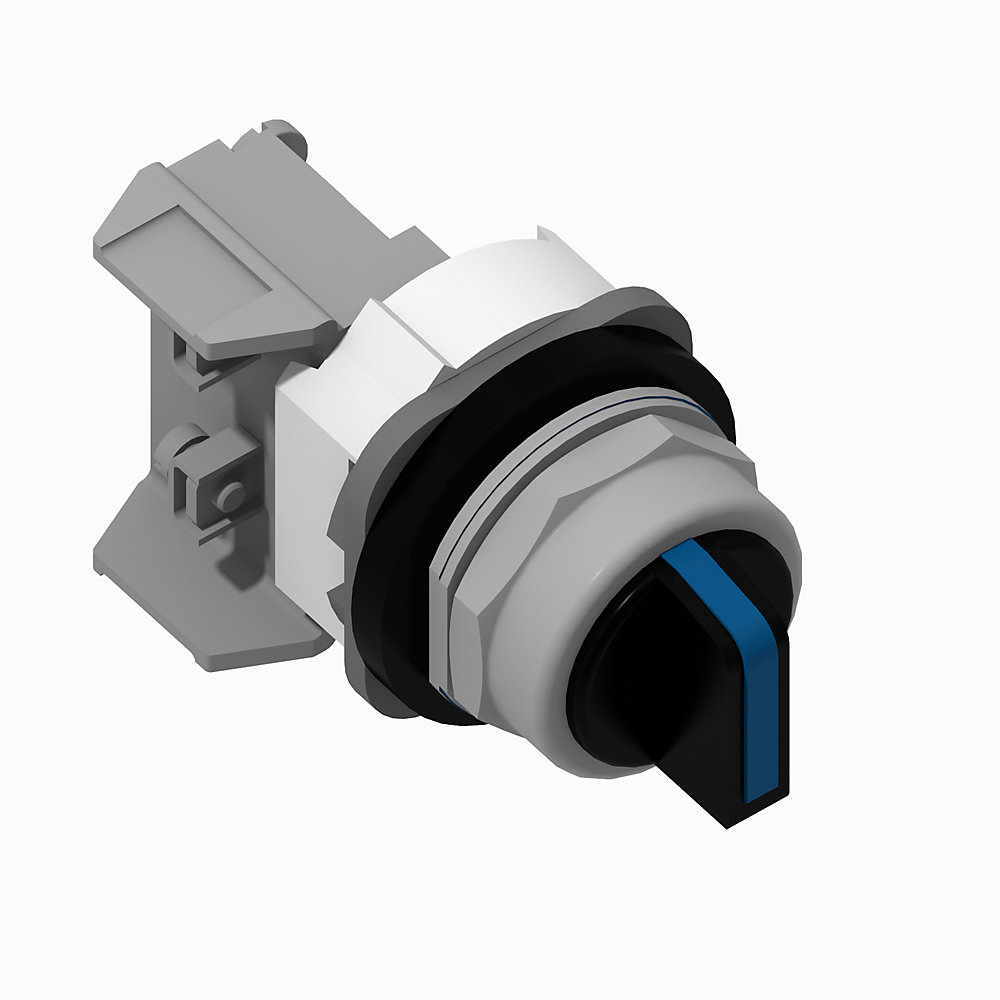

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-HX2D2

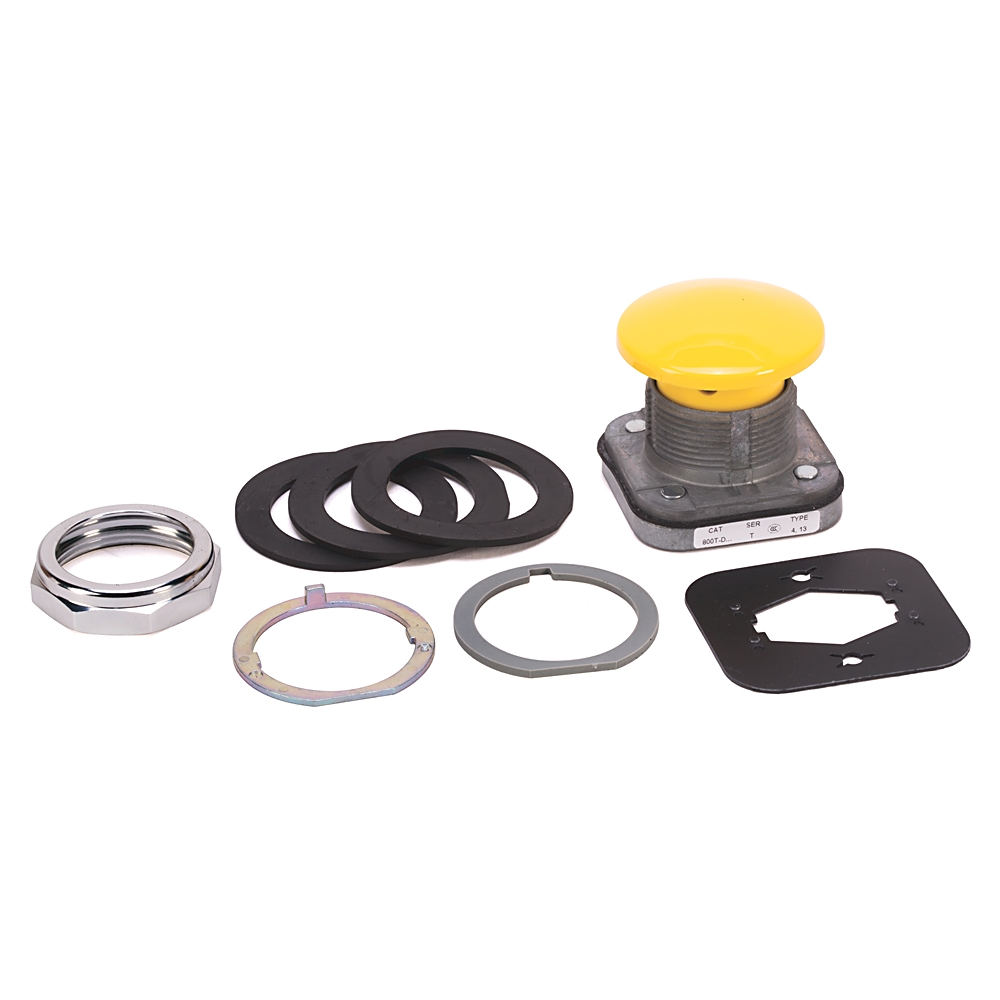

Allen-Bradley Allen-Bradley 30mm Momentary Push Button 800T PB 800T-D9C
