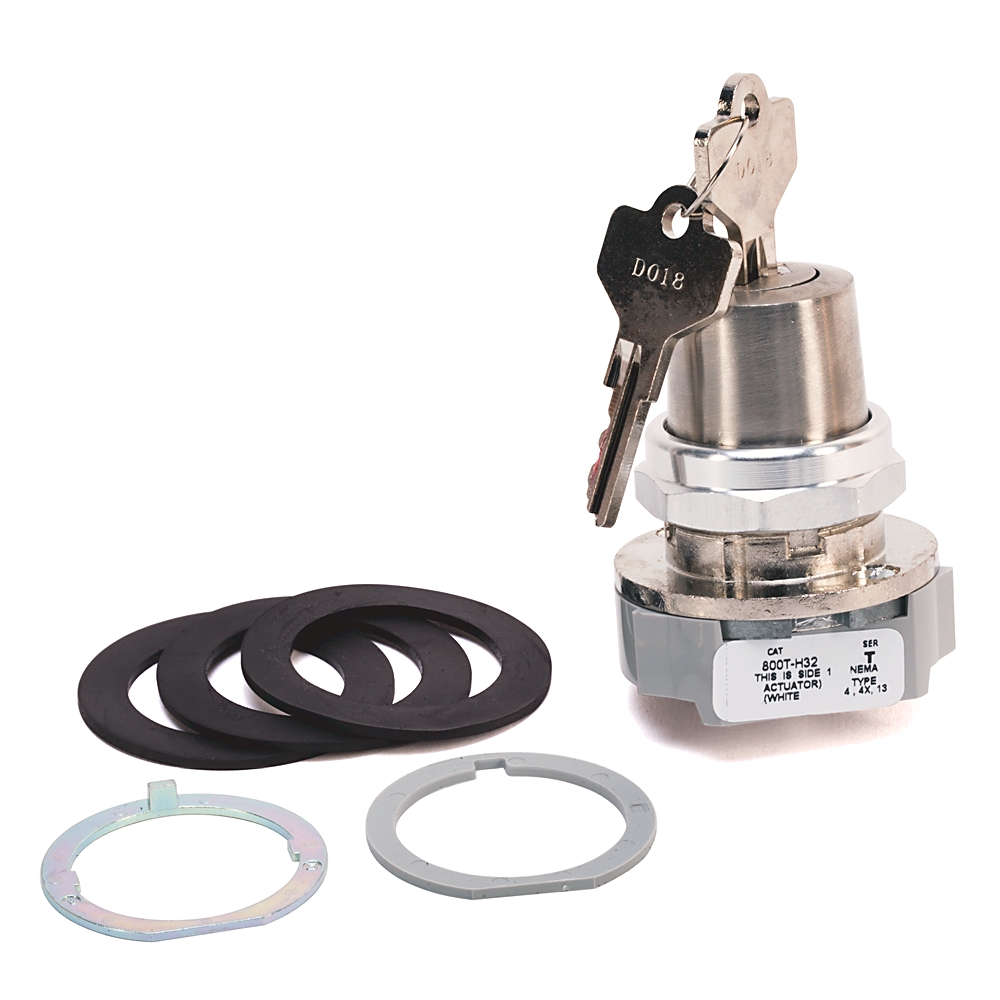

Allen-Bradley 30mm Selector Switch 800T PB 800T-H32KB6EDXX
Allen-Bradley 800T-H32KB6EDXX - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Discontinued.
The 800T-H32KB6EDXX from Allen-Bradley is listed under Pushbuttons & Pilot Devices in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: Custom configuration - consult factory; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Cylinder lock selector switch; Contact block configuration: Custom configuration - consult factory; Contact block electrical design life (cycles, at max. load): Custom configuration - consult factory; Contact block operational voltage, max: Custom configuration - consult factory; Contact block termination tightening torque: Custom configuration - consult factory. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | Custom configuration - consult factory |
| Contact block electrical design life (cycles, at max. load) | Custom configuration - consult factory |
| Contact block operational voltage, max | Custom configuration - consult factory |
| Contact block termination tightening torque | Custom configuration - consult factory |
| Contact block termination wire range | Custom configuration - consult factory |
| Contact block thermal current rating | Custom configuration - consult factory |
| Contact block utilization category (AC) | Custom configuration - consult factory |
| Contact block utilization category (DC) | Custom configuration - consult factory |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Hazardous location rating | Custom configuration - consult factory |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Lifecycle Status | Discontinued |
| Number of switch positions | 2 |
| Operating Temperature | -25 °C |
| Operator cam code | KB6 |
| Operator cap type | Key-operated |
| Operator construction/material | Metal |
| Operator function | Maintained |
| Operator lock key code | D018 (standard key) |
| Operator lock key removal position(s) | Lock in right position |
| Operator mechanical design life (cycles, min.) | 200000 |
| Operator Type | Cylinder lock selector switch |
| Position 1 contact block | 1 NC, standard contact block (800T-XD2) |
| Position 2 contact block | 1 NO, standard contact block (800T-XD1) |
| Position 3 contact block | No block this position |
| Position 4 contact block | No block this position |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Terminations with finger safe covers | false |
| Type of electric connection | Screw connection |
| Vibration | Custom configuration - consult factory |
