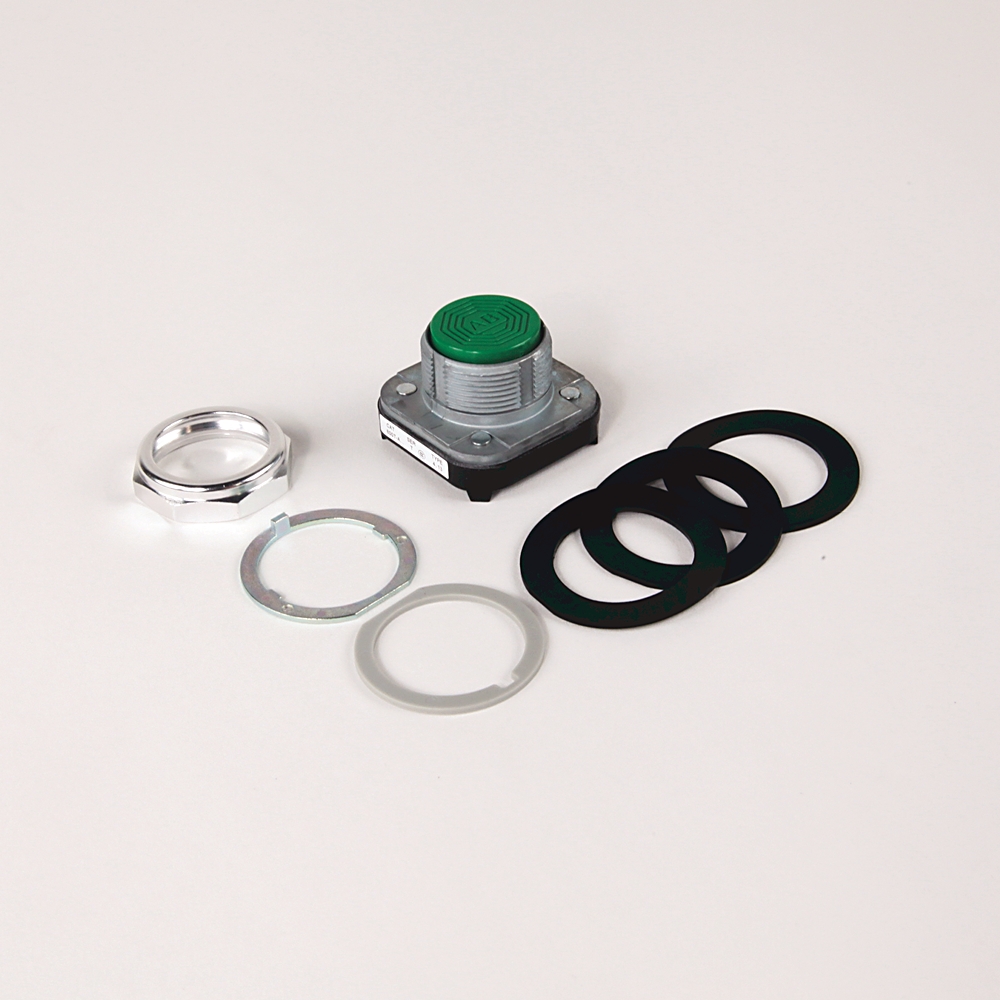

Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A1N
Allen-Bradley 800T-A1N - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
Allen-Bradley 800T-A1N is a Pushbuttons & Pilot Devices catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: Yes; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Push button; Contact block configuration: 2NO, 2 NC, snap action contact block (800T-NXN); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 300V AC @ 250V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | Yes |
|---|---|
| Contact block configuration | 2NO, 2 NC, snap action contact block (800T-NXN) |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 300V AC @ 250V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A300 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Lifecycle Status | Active |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap type | Flush head |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator cap/button size | 30 mm |
| Operator construction/material | Metal |
| Operator function | Momentary contact |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator special function | N/A |
| Operator Type | Push button |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Terminations with finger safe covers | false |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800T-A1N?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-A1N?
800T-A1N is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800T-A1N?
Key specifications include Build America, Buy America: Yes; Contact block configuration: 2NO, 2 NC, snap action contact block (800T-NXN); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 300V AC @ 250V DC. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-A1N ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

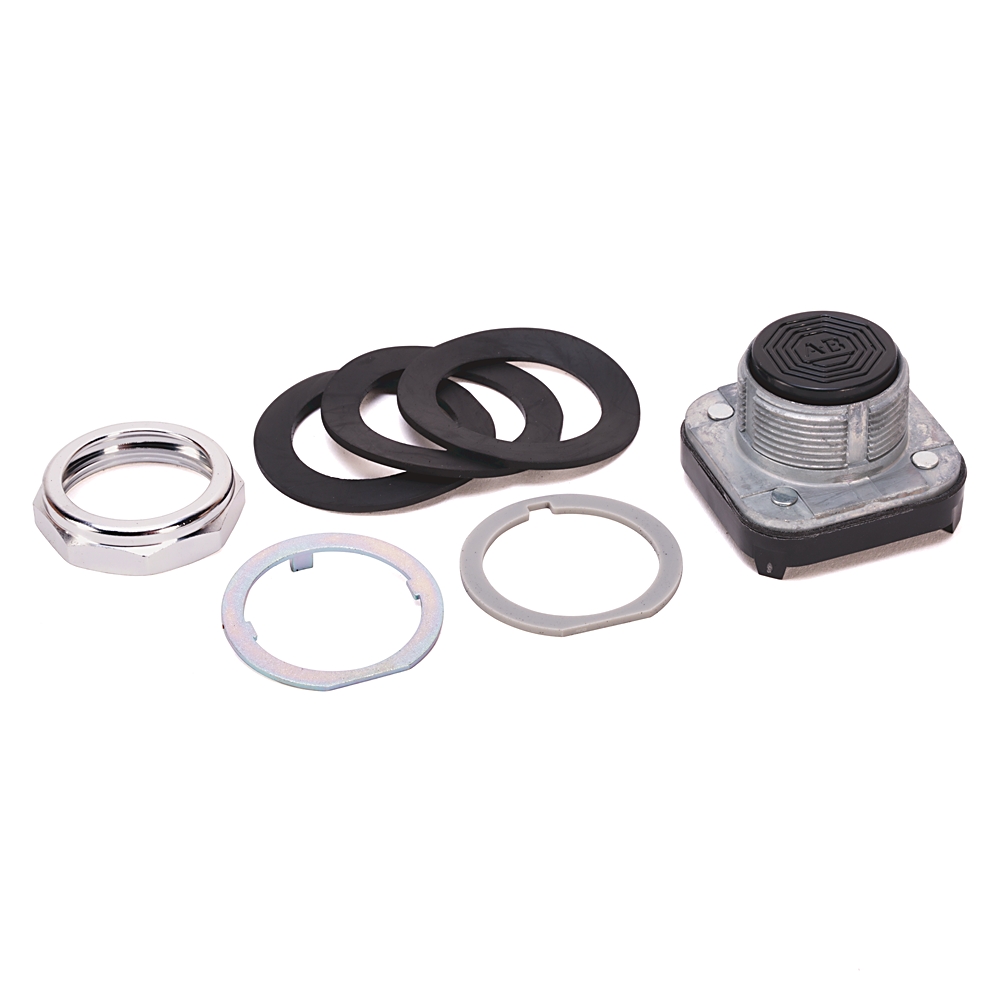

Allen-Bradley Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A2A2R
