Allen-Bradley 30mm Push Button Station 800T PB 800T-3TA2Y
Allen-Bradley 800T-3TA2Y - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Push Button Station.
This listing covers the Allen-Bradley 800T-3TA2Y, a part number in the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Type: 30mm Push Button Station; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Material: Die Cast Aluminum; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. The complete technical table is shown in the Specifications tab on this page.
| Bottom button option | Red STOP button |
|---|---|
| Build America, Buy America | No |
| Conduit entry | 3/4 in, 14 NPT |
| Contact block configuration | 1-NO 1-NC standard contacts |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Enclosure Material | Die Cast Aluminum |
| Enclosure mounting | Surface mount |
| Hazardous location rating | false |
| Humidity | 50 % |
| Indicating lights | Green and red, transformer Type, 480V AC 50/60 Hz |
| Lifecycle Status | Active |
| Number of push buttons | 3 |
| Operating Temperature | -25 °C |
| Operator cap type | Flush head |
| Operator legend text | FOR - REV - STOP |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator mounting hole dimension | 30.5 mm |
| Operator special function | None |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Station type | Push button |
| Storage Temperature | -40 °C |
| Termination style | Screw |
| Type | 30mm Push Button Station |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800T-3TA2Y?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-3TA2Y?
800T-3TA2Y is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800T-3TA2Y?
Key specifications include Bottom button option: Red STOP button; Build America, Buy America: No; Conduit entry: 3/4 in, 14 NPT; Contact block configuration: 1-NO 1-NC standard contacts. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-3TA2Y ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30mm Push Button Station 800T PB 800T-3TA2V
Allen-Bradley Allen-Bradley 30mm Push Button Station 800T PB 800T-3TCW

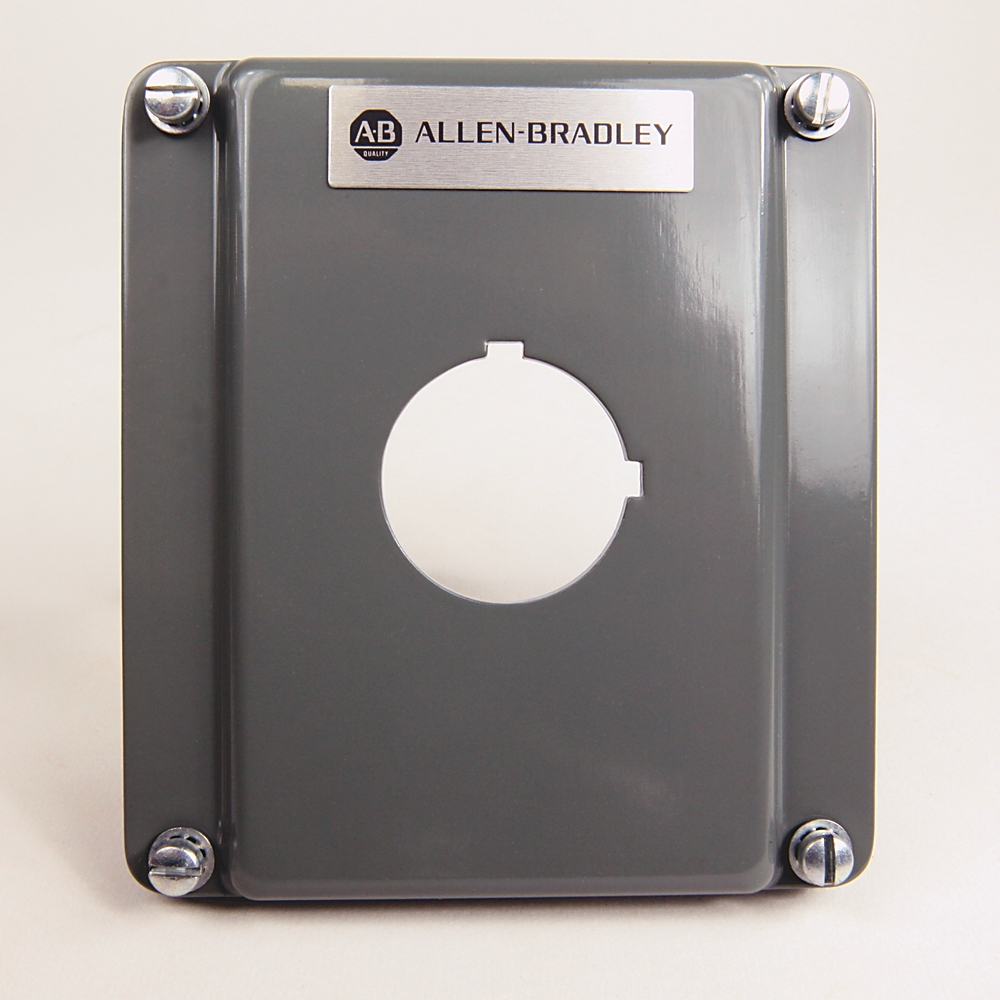

Allen-Bradley Allen-Bradley 30mm Push Button Station 800T PB 800T-3TDG
Allen-Bradley Allen-Bradley 30mm Push Button Station 800T PB 800T-3TF2R

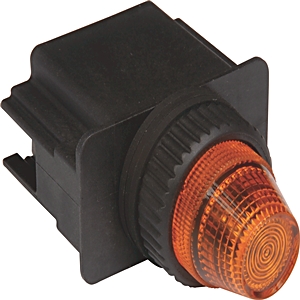

Allen-Bradley Allen-Bradley 18 mm Indicator Indicator 800L P-L 800L-18L20B
