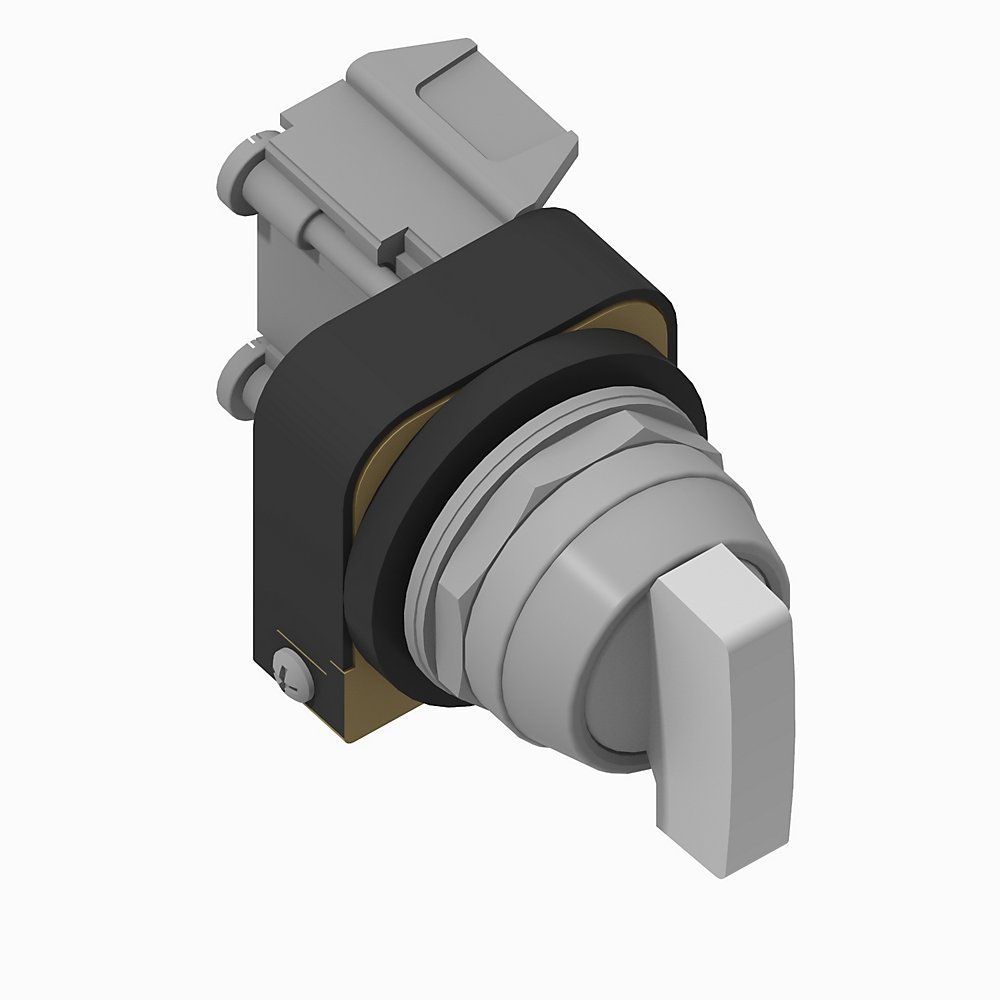

Allen-Bradley 30mm Selector Switch 800T PB 800T-24HW17KB6
Allen-Bradley 800T-24HW17KB6 - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Selector Switch.
This listing covers the Allen-Bradley 800T-24HW17KB6, a part number in the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Type: 30mm Selector Switch; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum (except logic reed); Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Selector switch; Enclosure compatibility (NEMA type): 1, 4, 12, 13; Hazardous location rating: false; Hole diameter: 30.5 mm. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 24V AC/DC |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Full voltage |
| Lifecycle Status | Active |
| Number of switch positions | 2 |
| Operating Temperature | -25 °C |
| Operator cam code | KB6 |
| Operator cap color | White |
| Operator cap type | Knob lever |
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator function | Maintained |
| Operator mechanical design life (cycles, min.) | 200000 |
| Operator Type | Selector switch |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Terminations with finger safe covers | false |
| Type | 30mm Selector Switch |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum (except logic reed) |
Frequently Asked Questions
How do I get pricing for 800T-24HW17KB6?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800T-24HW17KB6?
800T-24HW17KB6 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800T-24HW17KB6?
Key specifications include Build America, Buy America: No; Enclosure compatibility (NEMA type): 1, 4, 12, 13; Hazardous location rating: false; Hole diameter: 30.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 800T-24HW17KB6 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

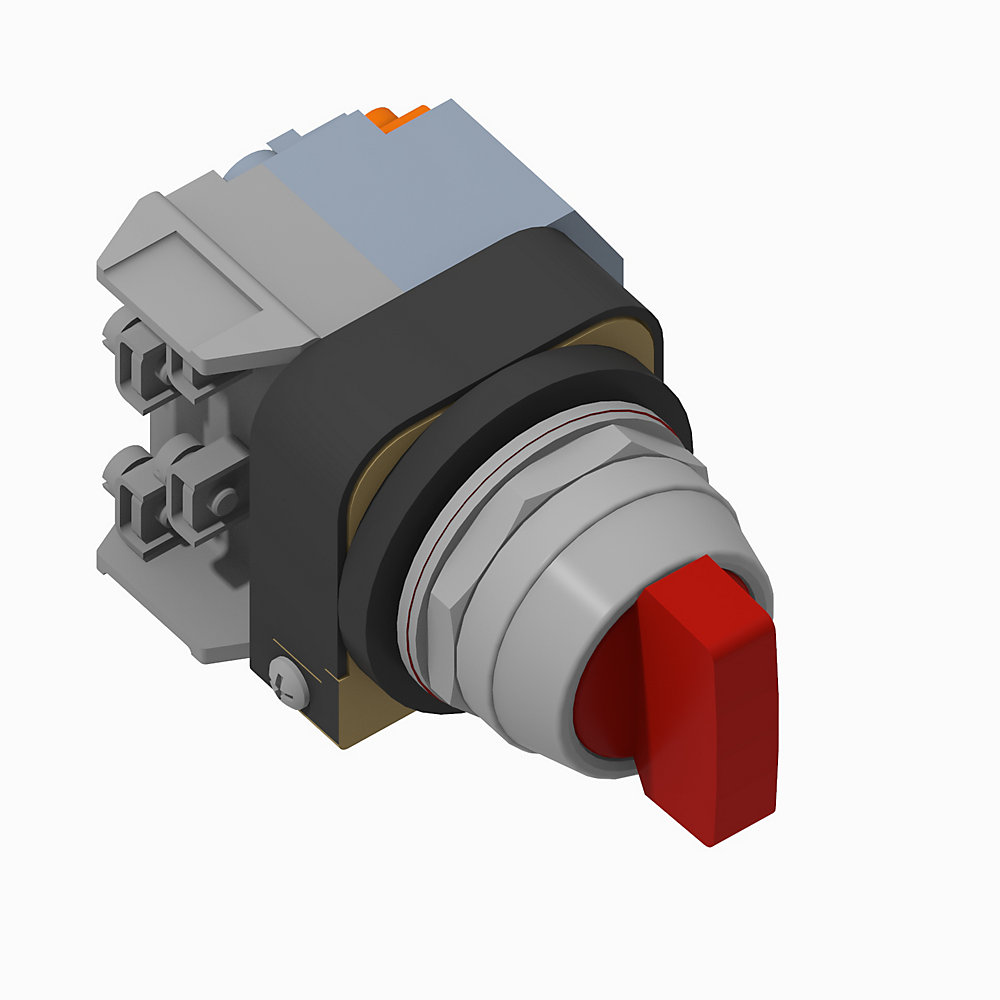

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-16JRH5KC1AX

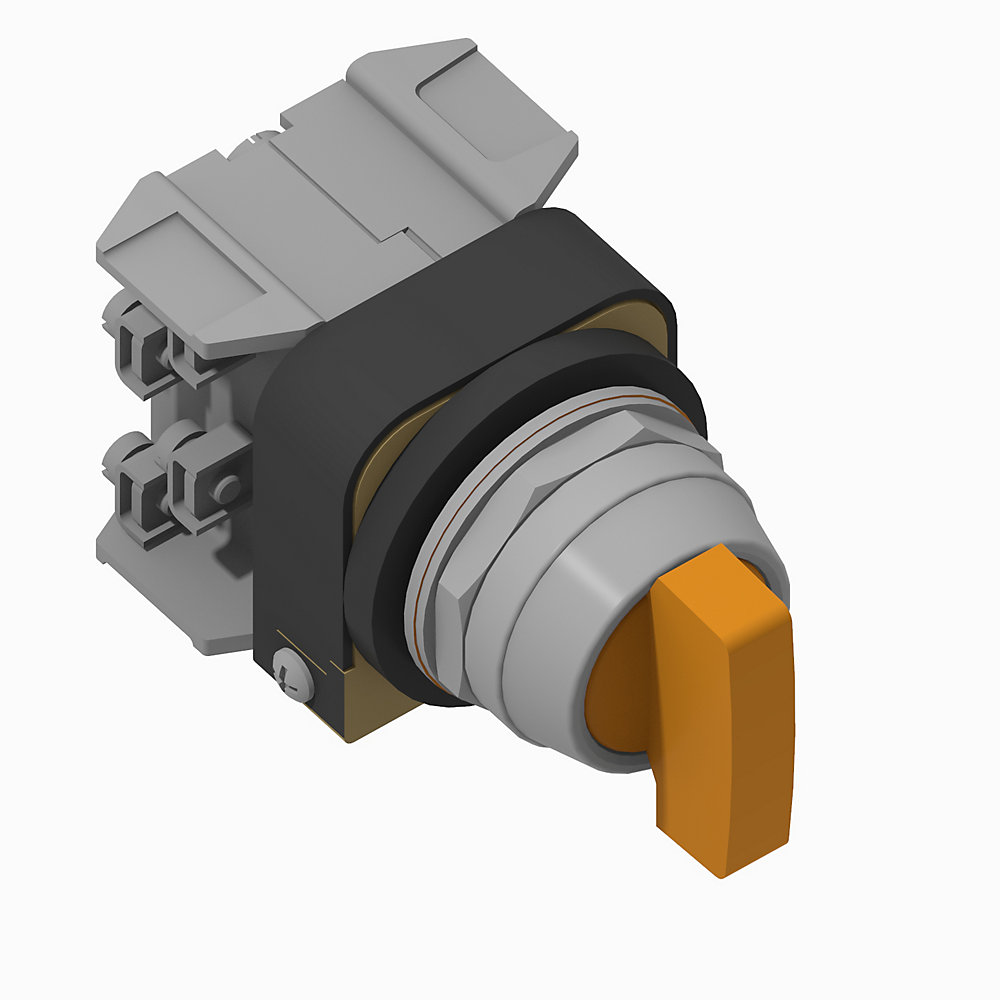

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-24JA20KB7TX
Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-16JR2KB7TT

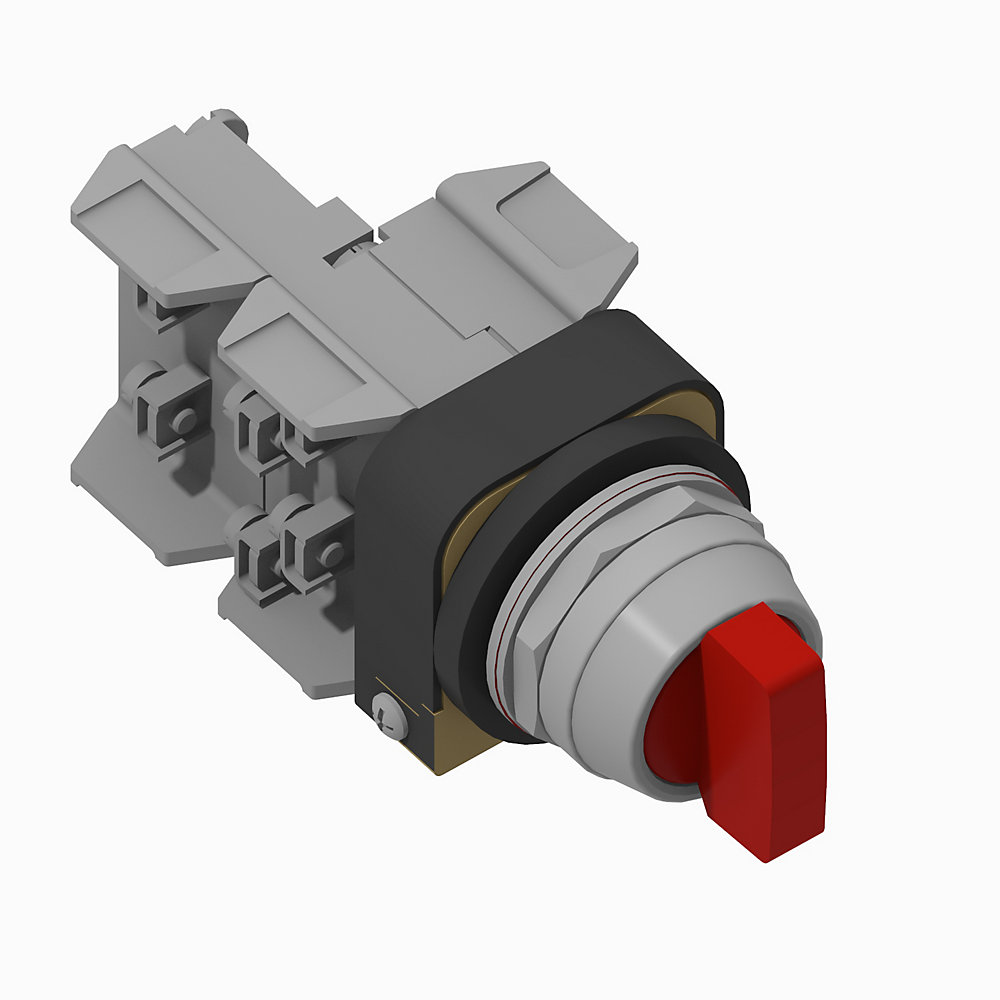

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-24JR5KB7AJ

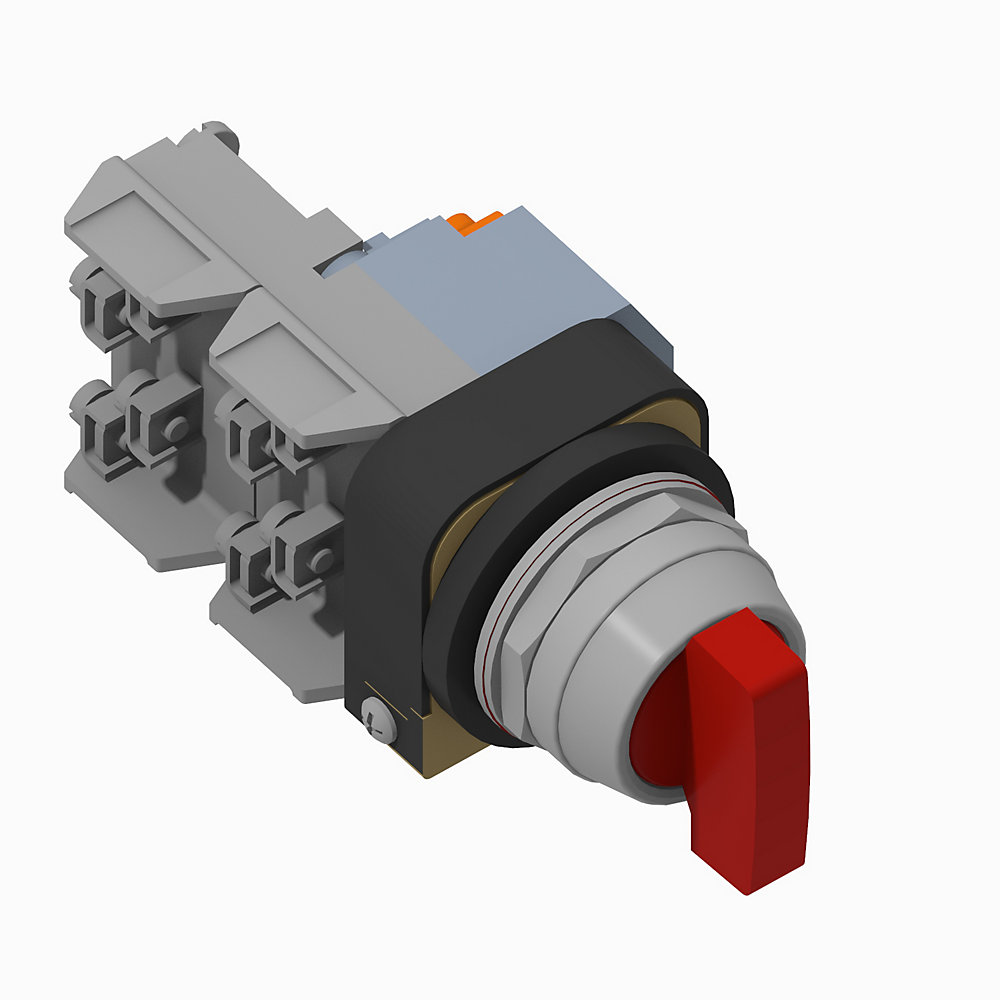

Allen-Bradley Allen-Bradley 30mm Selector Switch 800T PB 800T-16JR17KC1TT
