Allen-Bradley 30 mm Push-Button Station 800R PB 800R-1HB4TL
Allen-Bradley 800R-1HB4TL - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30 mm Push-Button Station.
The 800R-1HB4TL from Allen-Bradley is listed under Pushbuttons & Pilot Devices in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 30 mm Push-Button Station; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Material: Stainless Steel; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Conduit entry | 3/4 in, 14 NPT |
| Contact block configuration | 1-NO 1-NC standard contacts |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Enclosure Material | Stainless Steel |
| Enclosure mounting | Surface mount |
| Hazardous location rating | Class I, Div. 2 |
| Humidity | 50 % |
| Lifecycle Status | Active |
| Number of push buttons | 1 |
| Operating Temperature | -25 °C |
| Operator cap type | Flush head |
| Operator legend text | START |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator mounting hole dimension | 30.5 mm |
| Operator special function | None |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Station type | Push button |
| Storage Temperature | -40 °C |
| Termination style | Screw |
| Type | 30 mm Push-Button Station |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800R-1HB4TL?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800R-1HB4TL?
800R-1HB4TL is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800R-1HB4TL?
Key specifications include Build America, Buy America: No; Conduit entry: 3/4 in, 14 NPT; Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000. The full specification table on this page lists every published attribute for this part.
How quickly can 800R-1HB4TL ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30 mm Push-Button Station 800R PB 800R-1HB4RL
Allen-Bradley Allen-Bradley 30 mm Push-Button Station 800R PB 800R-1HG4T
Allen-Bradley Allen-Bradley 30 mm Push-Button Station 800R PB 800R-1HX4T
Allen-Bradley Allen-Bradley 30 mm Push-Button Station 800R PB 800R-1HA4TL

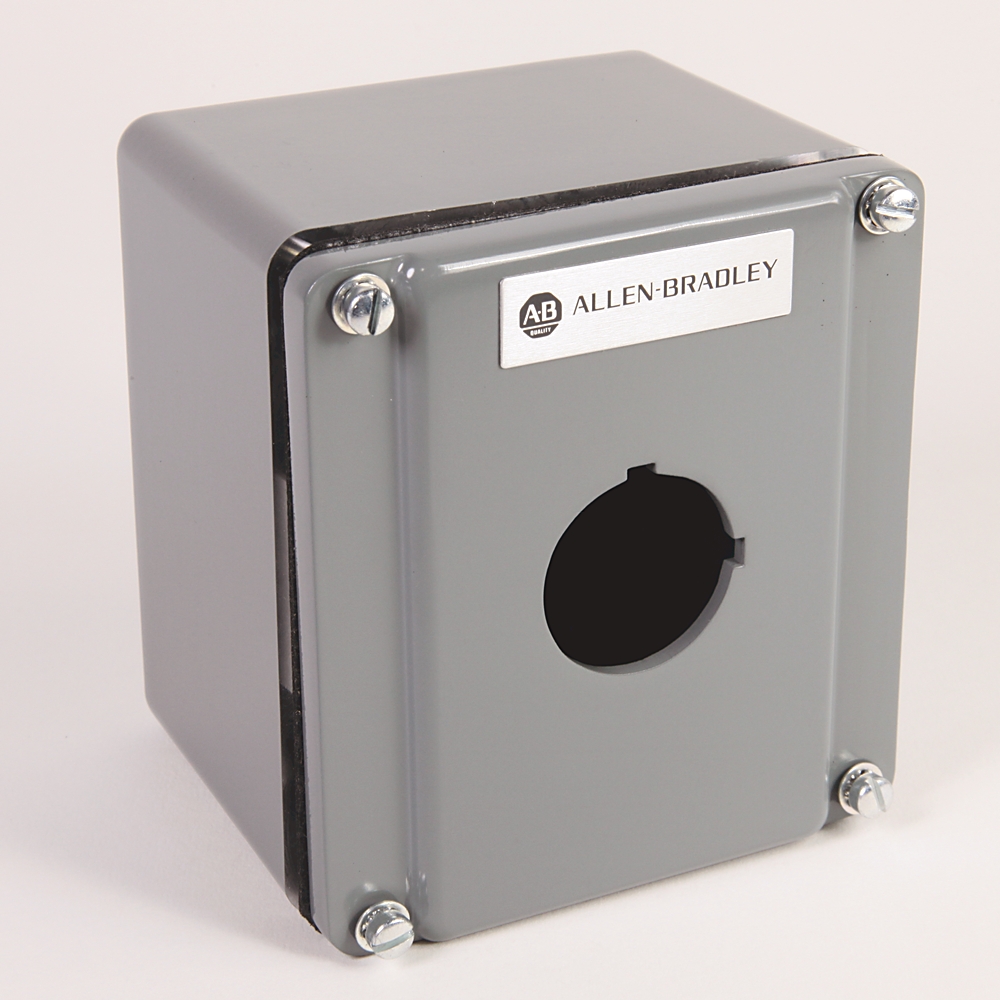

Allen-Bradley Allen-Bradley 30 mm Push-Button Station 800R PB 800R-1TB
