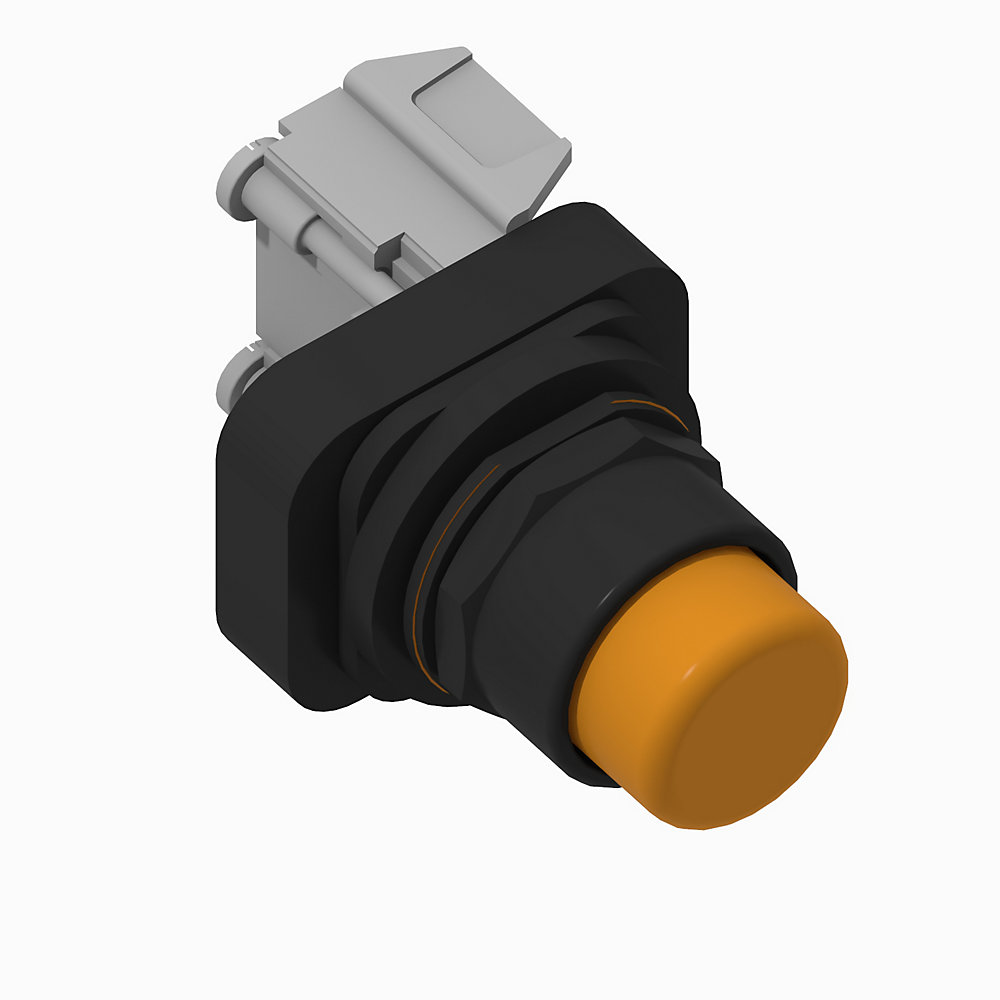

Allen-Bradley 30mm Momentary Push Button 800H PB 800H-QRB24AX
Allen-Bradley 800H-QRB24AX - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Momentary Push Button.
Allen-Bradley 800H-QRB24AX is a Pushbuttons & Pilot Devices catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 30mm Momentary Push Button; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Push button; Contact block configuration: No contacts; Enclosure compatibility (NEMA type): 1, 4, 4X, 12, 13; Hazardous location rating: false. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | No contacts |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 24V AC/DC |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 17 - 18 AWG (x2) |
| Illumination module type | Full voltage |
| Lifecycle Status | Discontinued |
| Operating Temperature | -25 °C |
| Operator cap color | Amber |
| Operator cap type | Extended head without guard |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator construction/material | Plastic |
| Operator function | Momentary contact |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator Type | Push button |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Terminations with finger safe covers | false |
| Type | 30mm Momentary Push Button |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800H-QRB24AX?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-QRB24AX?
800H-QRB24AX is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800H-QRB24AX?
Key specifications include Build America, Buy America: No; Contact block configuration: No contacts; Enclosure compatibility (NEMA type): 1, 4, 4X, 12, 13; Hazardous location rating: false. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-QRB24AX ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30mm Momentary Push Button 800H PB 800H-QRB24AA2

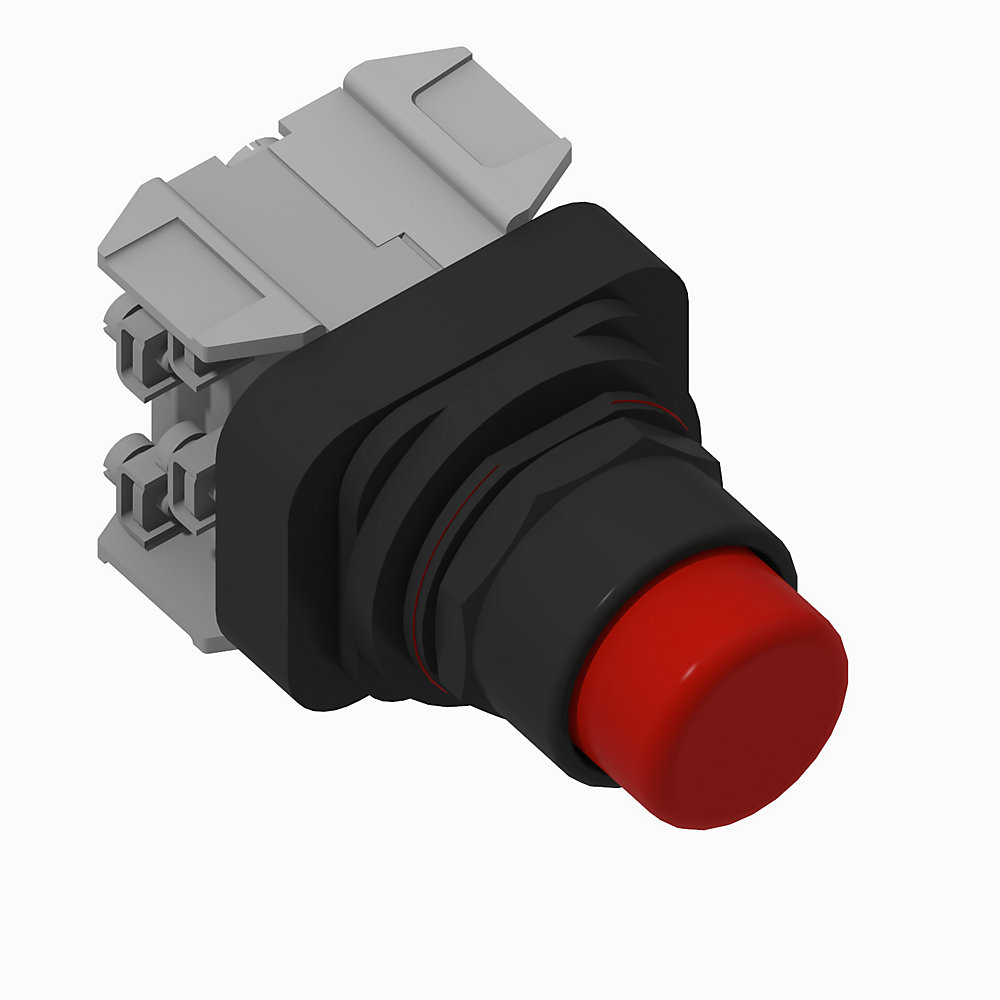

Allen-Bradley Allen-Bradley 30mm Momentary Push Button 800H PB 800H-QRB24RA2
Allen-Bradley Allen-Bradley 30mm Momentary Push Button 800H PB 800H-QRB20WA2

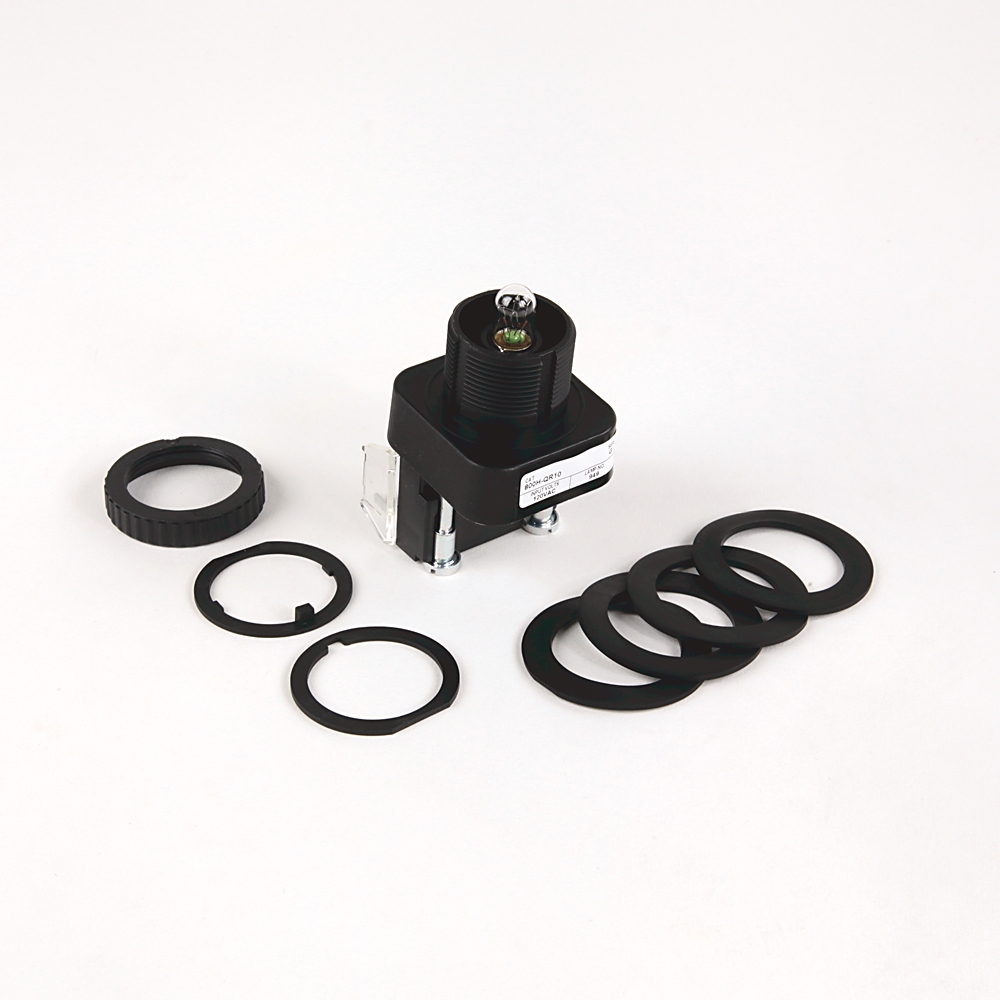

Allen-Bradley Allen-Bradley 30mm Momentary Push Button 800H PB 800H-QRB24RA2R
