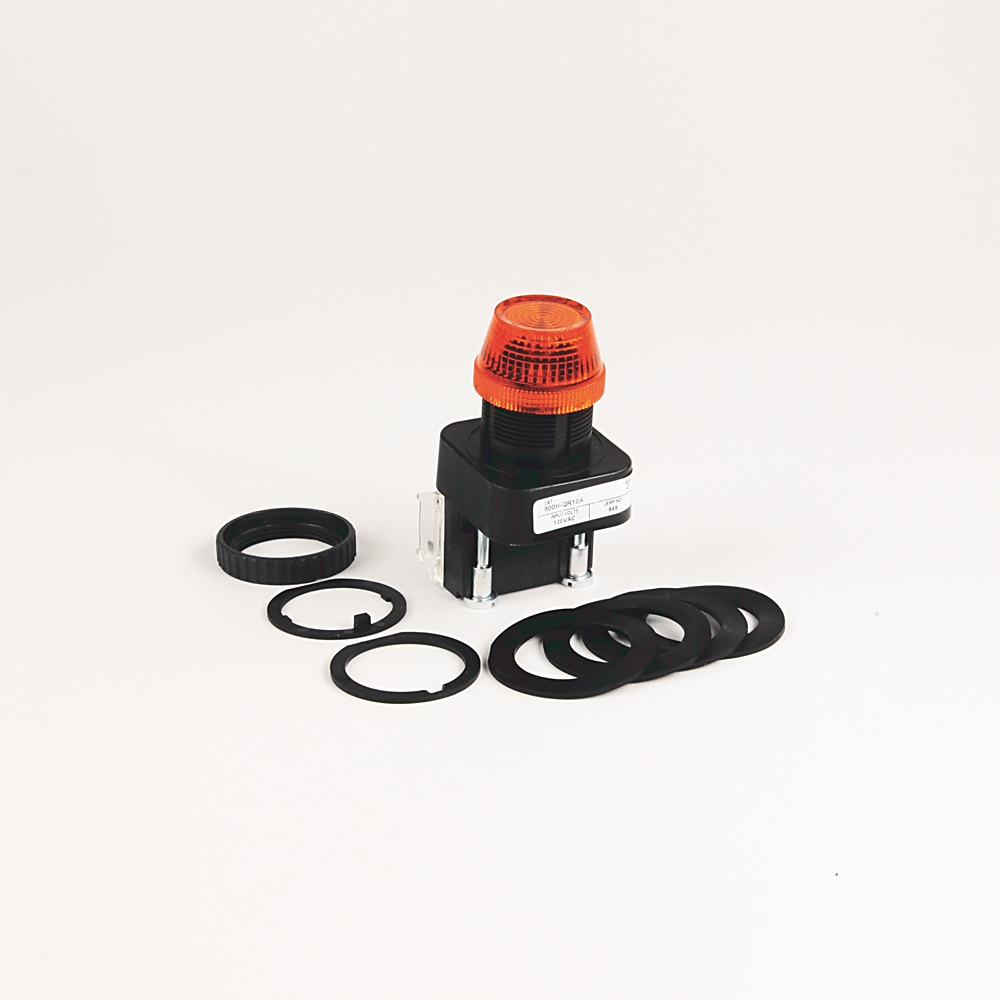

Allen-Bradley 30mm Pilot Light 800H PB 800H-QR20G
Allen-Bradley 800H-QR20G - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Pilot Light.
The Allen-Bradley 800H-QR20G is part of the Pushbuttons & Pilot Devices range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 30mm Pilot Light; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of indicator lights: 1; Shock: 100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Pilot light; Enclosure compatibility (NEMA type): 1, 4, 4X, 12, 13; Hazardous location rating: Class I, div. 2. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Hazardous location rating | Class I, div. 2 |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 240V AC/DC |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Full voltage |
| Lifecycle Status | Active |
| Number of indicator lights | 1 |
| Operating Temperature | -25 °C |
| Operator cap color | Green |
| Operator cap type | Fresnal |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator construction/material | Plastic |
| Operator illuminated | true |
| Operator Type | Pilot light |
| Repair Options Available | No |
| Shock | 100 G (no damage) |
| Storage Temperature | -40 °C |
| Terminations with finger safe covers | false |
| Type | 30mm Pilot Light |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800H-QR20G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-QR20G?
800H-QR20G is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800H-QR20G?
Key specifications include Build America, Buy America: No; Enclosure compatibility (NEMA type): 1, 4, 4X, 12, 13; Hazardous location rating: Class I, div. 2; Hole diameter: 30.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-QR20G ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30mm Pilot Light 800H PB 800H-QR12G

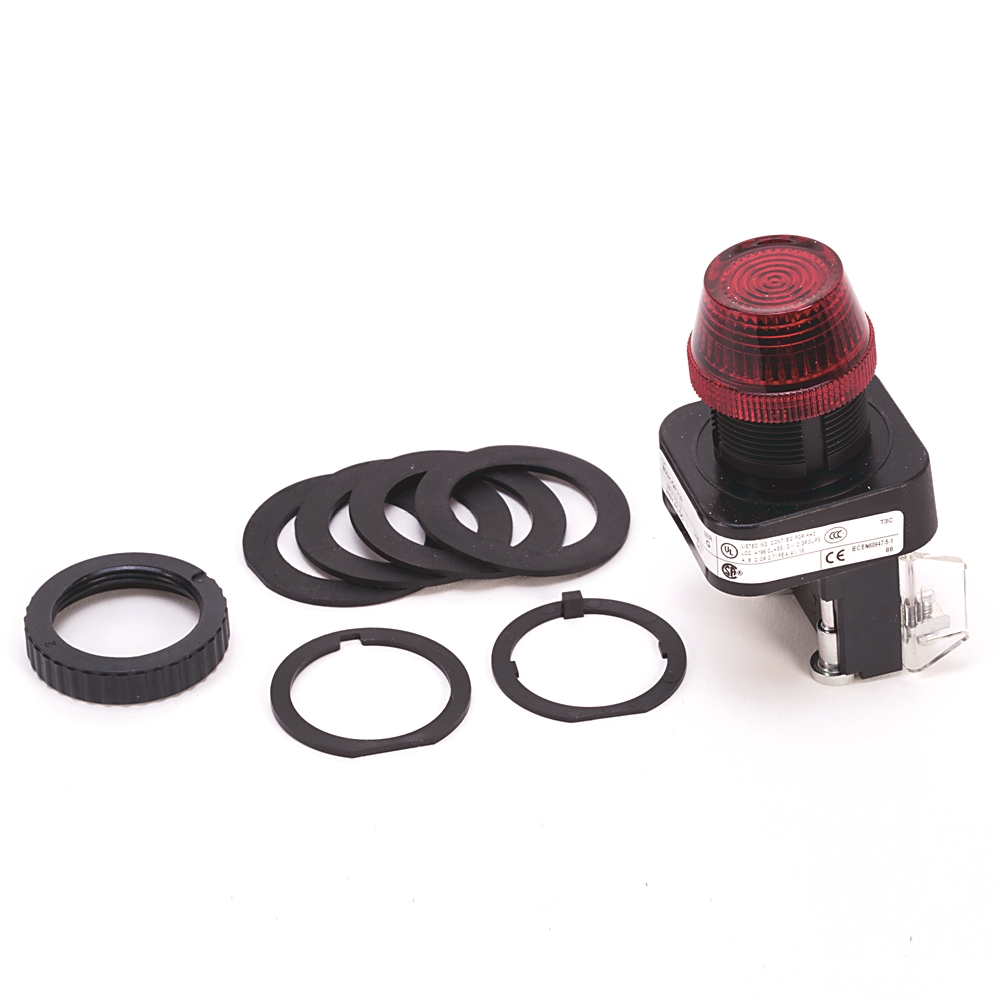

Allen-Bradley Allen-Bradley 30mm Pilot Light 800H PB 800H-QR20R
Allen-Bradley Allen-Bradley 30mm Pilot Light 800H PB 800H-QR12A

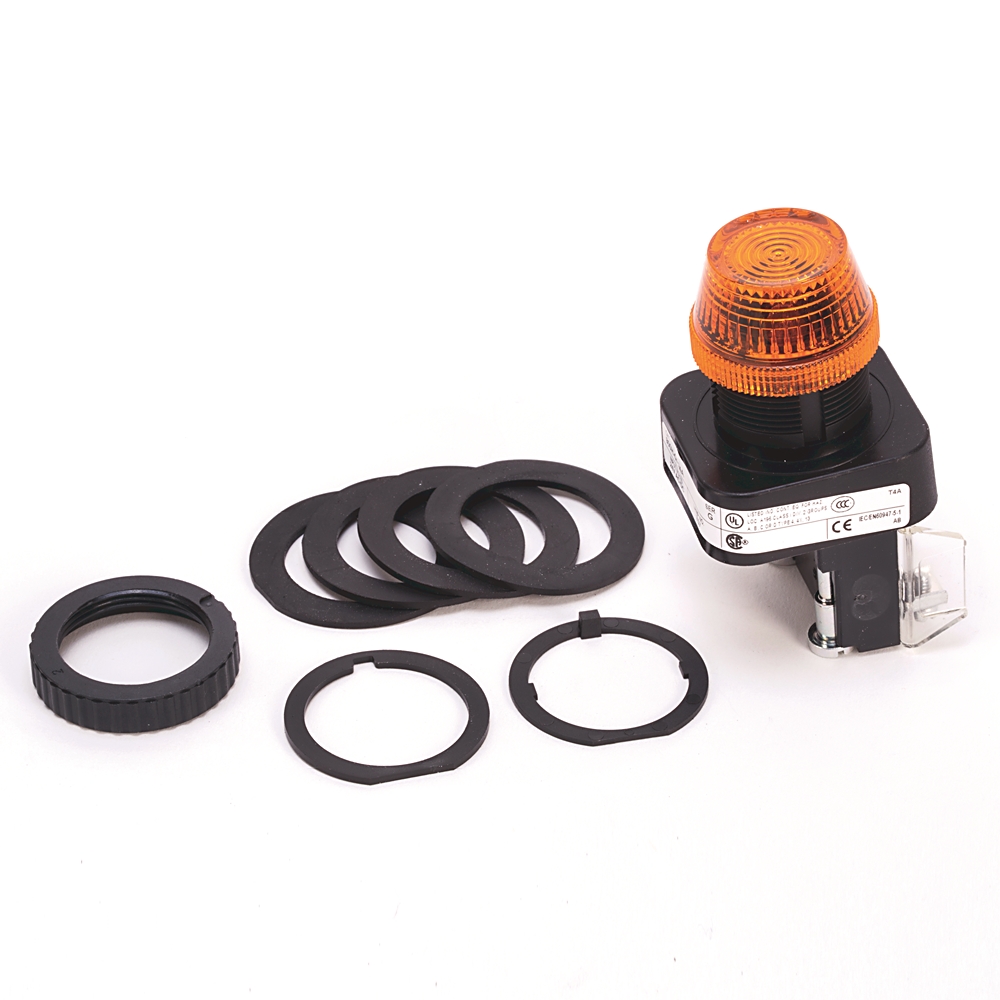

Allen-Bradley Allen-Bradley 30mm Pilot Light 800H PB 800H-QR24A
