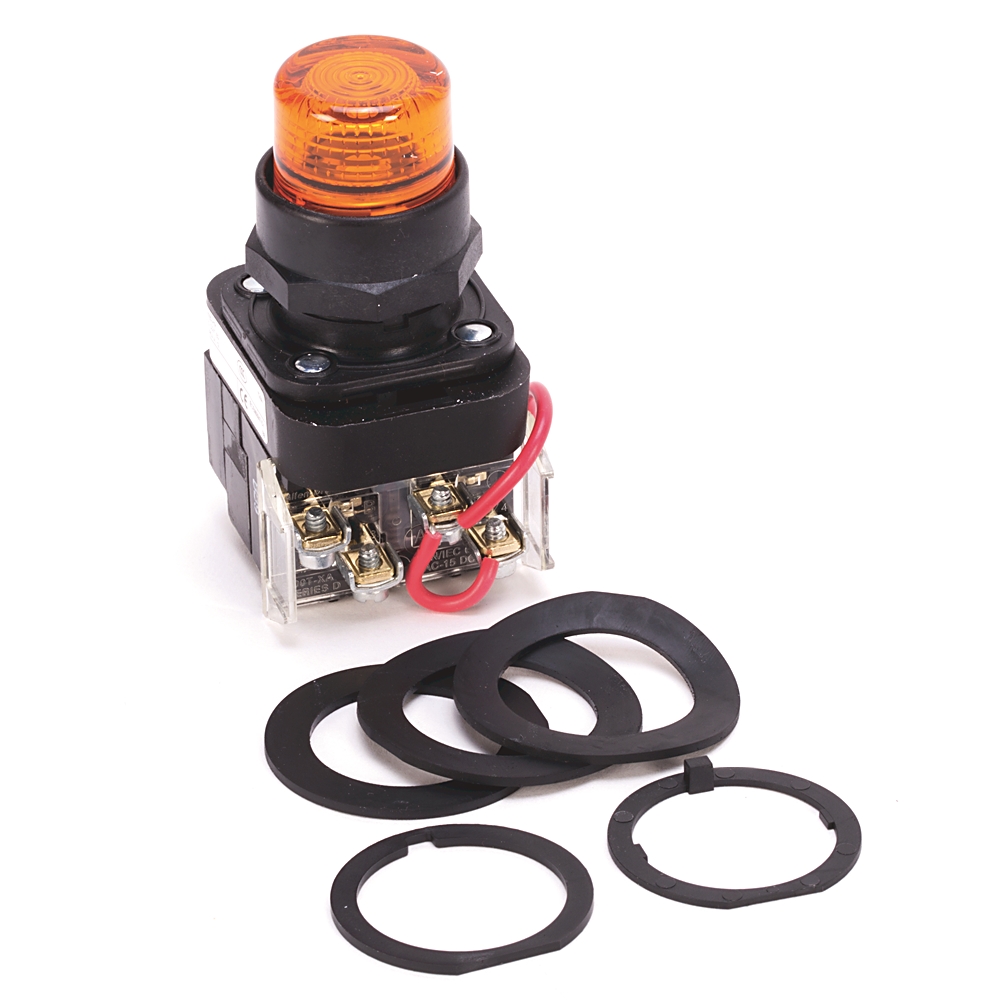

Allen-Bradley Type 7_9 Momentary Push Button 800H PB 800H-QPBH2MD1
Allen-Bradley 800H-QPBH2MD1 - Pushbuttons & Pilot Devices - Operating Temperature: -20 °C; Storage Temperature: -40 °C; Degree of protection: Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories).
The 800H-QPBH2MD1 from Allen-Bradley is listed under Pushbuttons & Pilot Devices in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -20 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Degree of protection: Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories); Type: Type 7&9; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Dielectric strength: 2200V @ 1min, 1300V @ 1min (Logic Reed); Electrical life cycle: 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed); Mechanical life operations: 250000 minimum; Shock: 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G; Vibration: 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed); Humidity: 50% @ 104°F (40 °C); Type of electric connection: Screw connection. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Bull Number Modifier | No Guards - on Terminals |
| Colour button | Other |
| Construction type lens | Round |
| Contact block | 1 NO, standard contact block (800T-XD1) |
| Contact operation for Logic Reed contact blocks | Snap action |
| Contact operation for low voltage contact blocks | Slow, double make and break |
| Contact operation for mini contact blocks | Slow, double make and break |
| Contact operation for sealed switch contact blocks | Snap action |
| Degree of protection | Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories) |
| Dielectric strength | 2200V @ 1min, 1300V @ 1min (Logic Reed) |
| Electrical life cycle | 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed) |
| Finger-safe guards | No guards on terminals |
| Humidity | 50% @ 104°F (40 °C) |
| Lamp Test | Standard |
| Lamp test type | Standard |
| Lamp type | LED lA |
| Lens color | Multi-color insert packet |
| Lifecycle Status | Active |
| Material front ring | Plastic |
| Mechanical life operations | 250000 minimum |
| Operating Temperature | -20 °C |
| Operational voltage (Ue), max | 600V AC @ 600V DC |
| Operator Type | Momentary, illuminated |
| Position 4 contact block | No Block This Position |
| Power Input Type | Full Voltage Type |
| Power module type | Full voltage or universal |
| Rated operational current | 69VA @ 28...600V DC |
| Rated operational current, break | 720VA @ 72...120V AC |
| Rated operational current, make | 7200VA @ 120...600V AC |
| Rated supply voltage | 12...130V AC/DC |
| Repair Options Available | No |
| Shock | 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G |
| Spring-return | true |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Terminal screw torque | 6 in-lb |
| Thermal continuous current (Ith), max | 10A AC @ 2.5A DC |
| Type | Type 7&9 |
| Type of electric connection | Screw connection |
| Typical operating force for 2-position push-pull | 9 lb maximum push or pull |
| Typical operating force for 3-position push-pull | 12 lb maximum push to in position or pull to center position (15 lb maximum pull to out position) |
| Typical operating force for flush, extended, standard mushroom operator without contact blocks | 2.9 lb maximum |
| Typical operating force for jumbo mushroom operator without contact blocks | 2.9 lb maximum |
| Typical operating force for Logic Reed contact blocks | 1 lb maximum |
| Typical operating force for sealed switch contact blocks | 3 lb maximum at 0.205 in plunger travel |
| Typical operating force for stackable sealed switch contact blocks | 1 lb maximum |
| Typical operating force for standard contact blocks (800T-XA) | 1 lb |
| Utilization category | AC-15 per IEC, DC-13 per IEC |
| Vibration | 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed) |
| Wire gauge | 18 AWG |
| With front ring | true |
