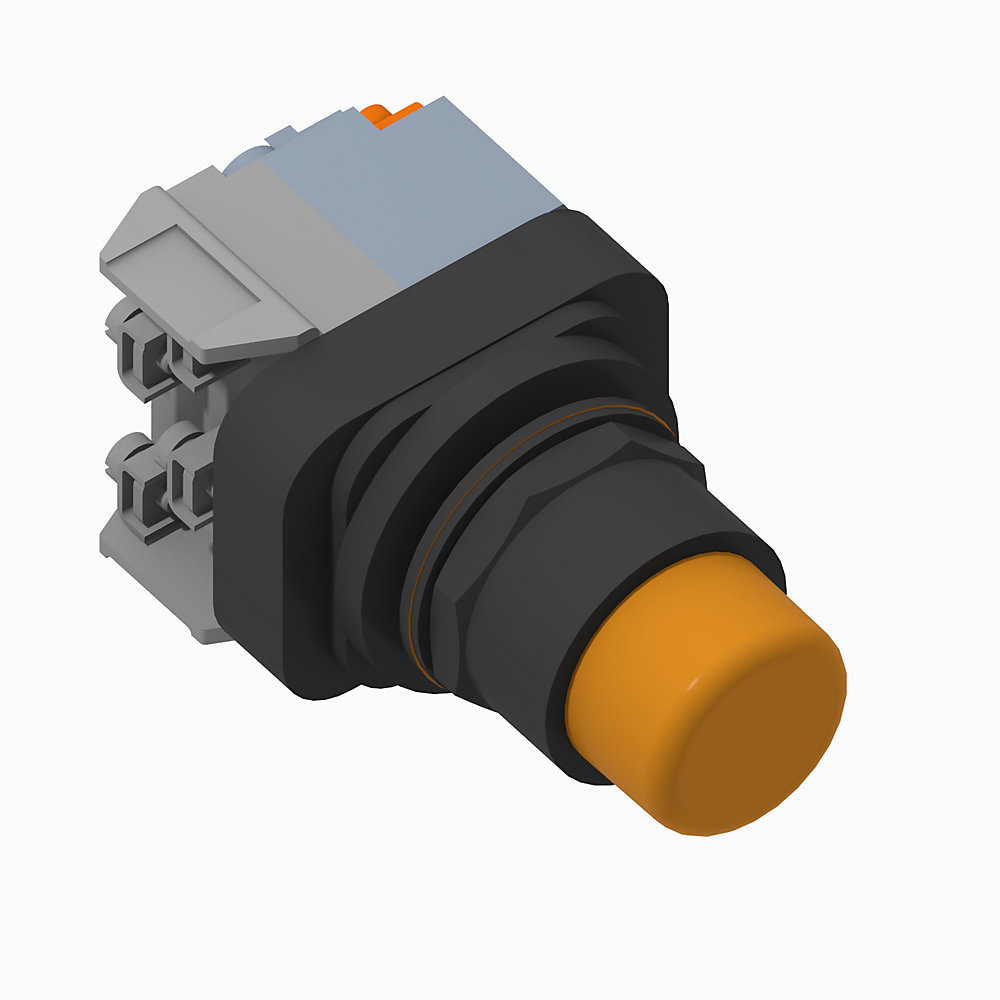

Allen-Bradley 30mm Pilot Light 800H PB 800H-PRT56A
Allen-Bradley 800H-PRT56A - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30mm Pilot Light.
The 800H-PRT56A from Allen-Bradley is listed under Pushbuttons & Pilot Devices in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 30mm Pilot Light; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Pilot light, with lA test feature; Contact block configuration: 1-NO 1-NC standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 1-NO 1-NC standard contacts |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 600V AC @ 50/60Hz |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Illumination module type | Transformer |
| Lifecycle Status | Active |
| Operating Temperature | -25 °C |
| Operator cap color | Amber |
| Operator cap type | Fresnal |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator construction/material | Plastic |
| Operator function | Push-to-test |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator Type | Pilot light, with lA test feature |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Terminations with finger safe covers | false |
| Type | 30mm Pilot Light |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
