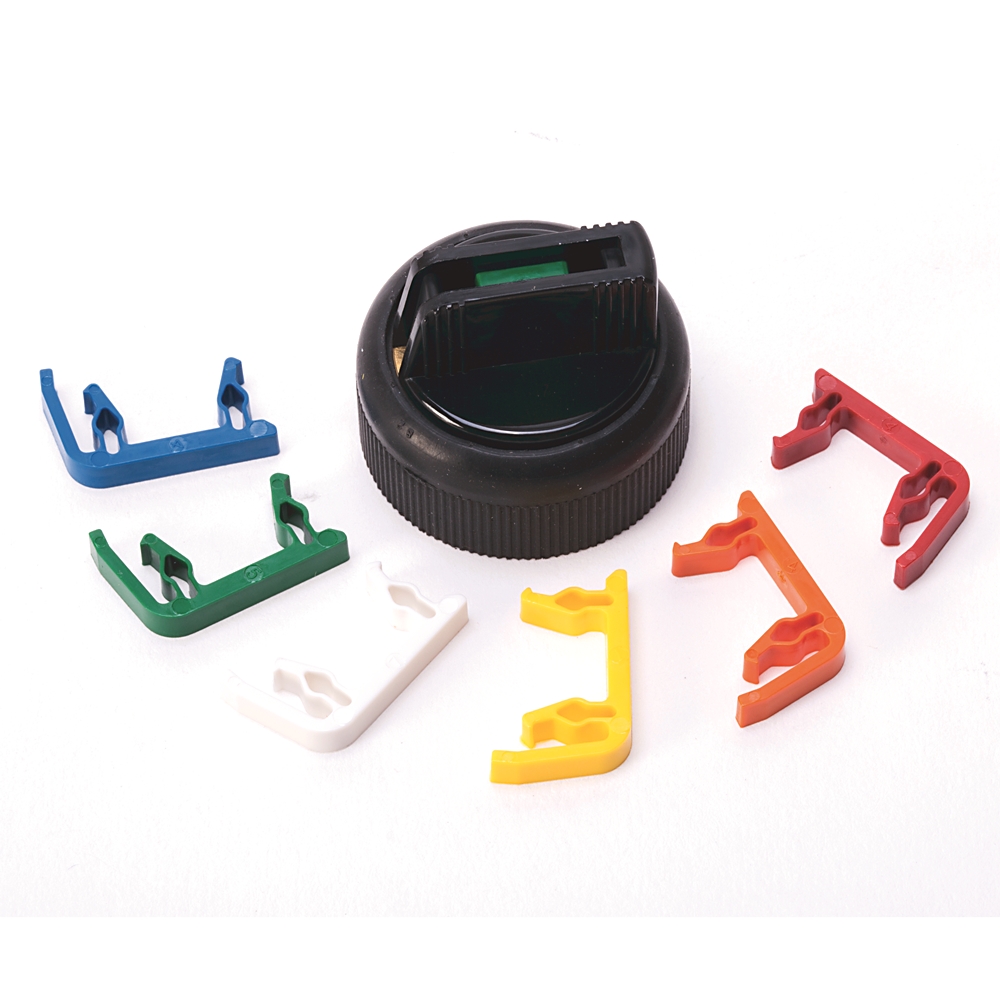

Allen-Bradley 30mm Selector Switch 800H PB 800H-NR3KG4DAXA
Allen-Bradley 800H-NR3KG4DAXA - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 30 mm Selector Switch.
The 800H-NR3KG4DAXA from Allen-Bradley is listed under Pushbuttons & Pilot Devices in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 30 mm Selector Switch; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: Custom configuration - consult factory; Humidity: 50 %; Type of electric connection: Screw connection; Operator Type: Selector switch; Contact block configuration: Custom configuration - consult factory; Contact block electrical design life (cycles, at max. load): Custom configuration - consult factory; Contact block operational voltage, max: Custom configuration - consult factory. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | Custom configuration - consult factory |
| Contact block electrical design life (cycles, at max. load) | Custom configuration - consult factory |
| Contact block operational voltage, max | Custom configuration - consult factory |
| Contact block termination tightening torque | Custom configuration - consult factory |
| Contact block termination wire range | Custom configuration - consult factory |
| Contact block thermal current rating | Custom configuration - consult factory |
| Contact block utilization category (AC) | Custom configuration - consult factory |
| Contact block utilization category (DC) | Custom configuration - consult factory |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Hazardous location rating | Custom configuration - consult factory |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Lifecycle Status | Discontinued |
| Number of switch positions | 4 |
| Operating Temperature | -25 °C |
| Operator cam code | KG4 |
| Operator cap color | Black with white insert |
| Operator cap type | Standard knob |
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator function | Spring return from position 1 to 2 |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Selector switch |
| Position 1 contact block | 1 NO, standard contact block (800T-XD1) |
| Position 2 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 3 contact block | No block this position |
| Position 4 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Terminations with finger safe covers | false |
| Type | 30 mm Selector Switch |
| Type of electric connection | Screw connection |
| Vibration | Custom configuration - consult factory |
Frequently Asked Questions
How do I get pricing for 800H-NR3KG4DAXA?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-NR3KG4DAXA?
800H-NR3KG4DAXA is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800H-NR3KG4DAXA?
Key specifications include Build America, Buy America: No; Contact block configuration: Custom configuration - consult factory; Contact block electrical design life (cycles, at max. load): Custom configuration - consult factory; Contact block operational voltage, max: Custom configuration - consult factory. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-NR3KG4DAXA ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30mm Selector Switch 800H PB 800H-NR3KF4

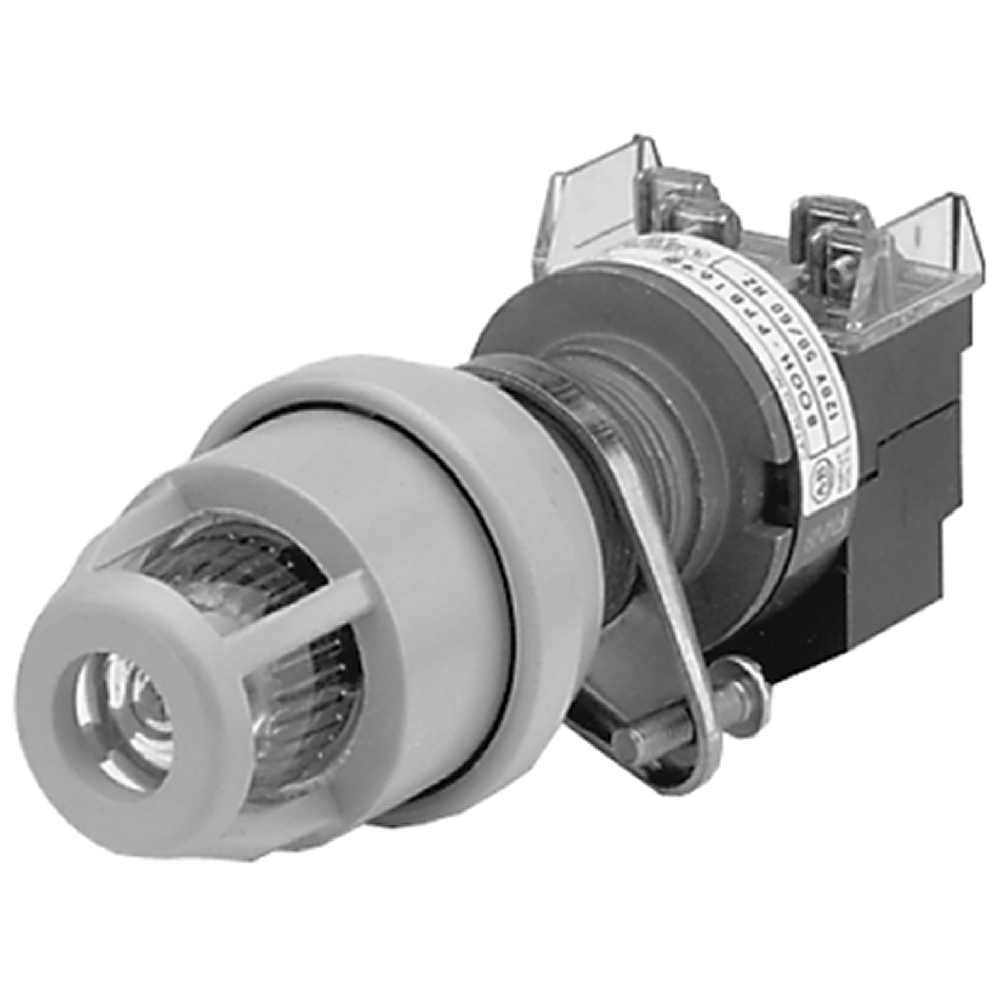

Allen-Bradley Allen-Bradley Type 7_9 Momentary Push Button 800H PB 800H-PPBH16M
Allen-Bradley Allen-Bradley 30mm Selector Switch 800H PB 800H-NR2KP4DDXG

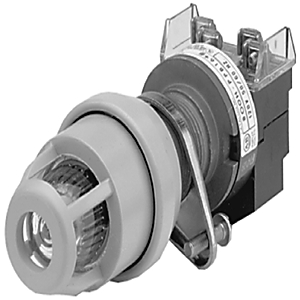

Allen-Bradley Allen-Bradley Type 7_9 Momentary Push Button 800H PB 800H-PPBH26MD1P

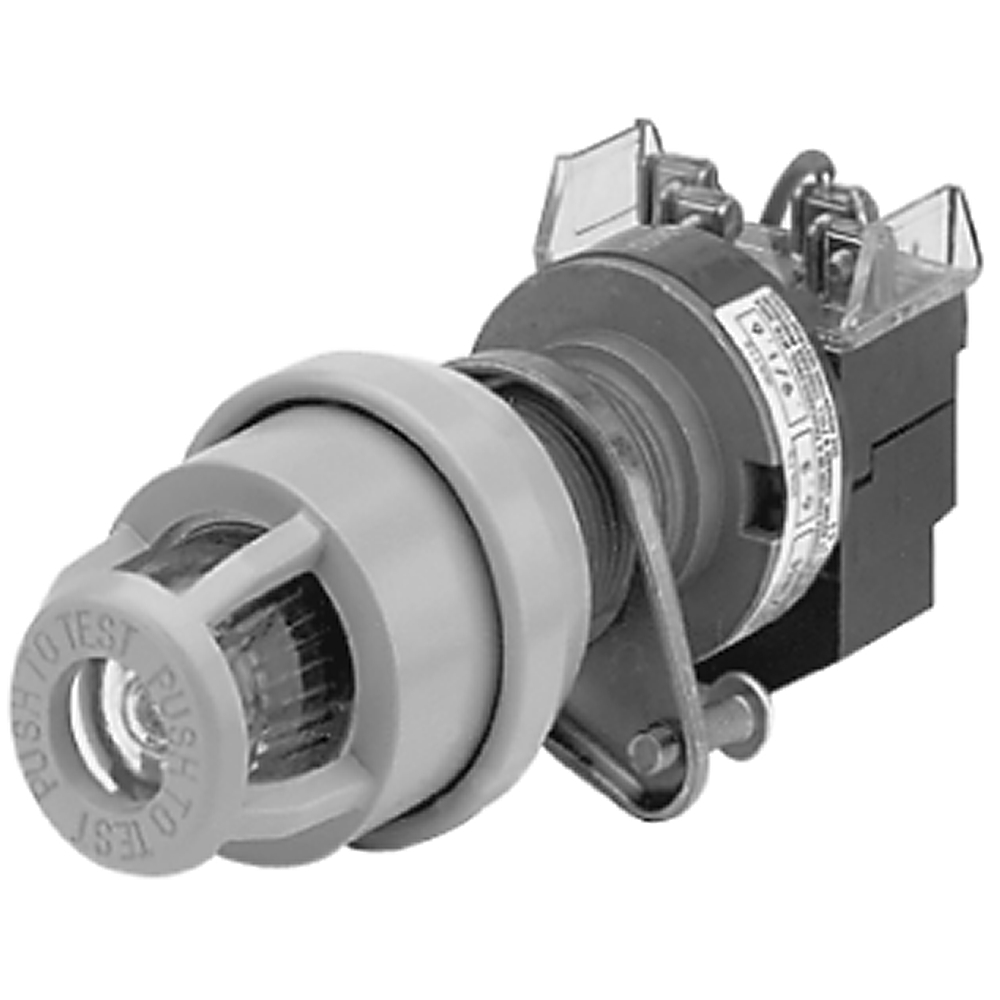

Allen-Bradley Allen-Bradley Type 7_9 Pilot Light 800H PB 800H-PPTH16M
