Allen-Bradley Type 7&9 Selector Switch 800H PB 800H-NPX9KP4AAAA
Allen-Bradley 800H-NPX9KP4AAAA - Pushbuttons & Pilot Devices - Operating Temperature: -20 °C; Storage Temperature: -40 °C; Degree of protection: Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories).
This listing covers the Allen-Bradley 800H-NPX9KP4AAAA, a part number in the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -20 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Degree of protection: Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories); Type: Type 7&9 Selector Switch; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Dielectric strength: 2200V @ 1min, 1300V @ 1min (Logic Reed); Electrical life cycle: 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed); Mechanical life operations: 200000 minimum; Type of control element: Key; Shock: 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G; Vibration: 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed); Humidity: 50% @ 104°F (40 °C). The complete technical table is shown in the Specifications tab on this page.
| 2-position cam options | Not applicable |
|---|---|
| 3-position cam options | Not applicable |
| 4-position cam options | KP4 cam |
| Build America, Buy America | No |
| Bull Number Modifier | No Guards - on Terminals |
| Contact operation | Slow, double make and break |
| Degree of protection | Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories) |
| Dielectric strength | 2200V @ 1min, 1300V @ 1min (Logic Reed) |
| Electrical life cycle | 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed) |
| Finger-safe guards | No guards on terminals |
| Hole diameter | 30.5 mm |
| Humidity | 50% @ 104°F (40 °C) |
| Insert lever color | Multi-color insert packet (blue, green, orange, red, and yellow) |
| Lifecycle Status | Discontinued |
| Material front ring | Plastic |
| Mechanical life operations | 200000 minimum |
| Number of switch positions | 4 |
| Operating Temperature | -20 °C |
| Operational voltage (Ue), max | 600V AC @ 600V DC |
| Operator Type & Function | Standard knob, spring return from position 4 to 3 (4-position only) |
| Position 1 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 2 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 3 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 4 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 5 contact block | Not applicable |
| Rated operational current | 69VA @ 28...600V DC |
| Rated operational current, break | 720VA @ 72...120V AC |
| Rated operational current, make | 7200VA @ 120...600V AC |
| Repair Options Available | No |
| Shock | 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G |
| Spring-return | true |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Switching function latching | false |
| Terminal screw torque | 6 in-lb |
| Thermal continuous current (Ith), max | 10A AC @ 2.5A DC |
| Type | Type 7&9 Selector Switch |
| Type of control element | Key |
| Type of electric connection | Screw connection |
| Typical operating force for spring return selector switches | 5 in-lb to stop, 0.2 in-lb to return |
| Typical operating forces operator without contact blocks | Maintained selector switch: 4 in-lb maximum |
| Typical operating forces with contact blocks | 800T-XA: 1 lb |
| Utilization category | AC-15 per IEC, DC-13 per IEC |
| Vibration | 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed) |
| Wire gauge | 18 AWG |
| With front ring | true |
| With light source | false |
Frequently Asked Questions
How do I get pricing for 800H-NPX9KP4AAAA?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-NPX9KP4AAAA?
800H-NPX9KP4AAAA is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800H-NPX9KP4AAAA?
Key specifications include 2-position cam options: Not applicable; 3-position cam options: Not applicable; 4-position cam options: KP4 cam; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-NPX9KP4AAAA ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30mm Booted Sel. Sw. Knob 800H PB 800H-NR100
Allen-Bradley Allen-Bradley Type 7&9 Selector Switch 800H PB 800H-NPX9KP4
Allen-Bradley Allen-Bradley 30mm Booted Sel. Sw. Knob 800H PB 800H-NR101

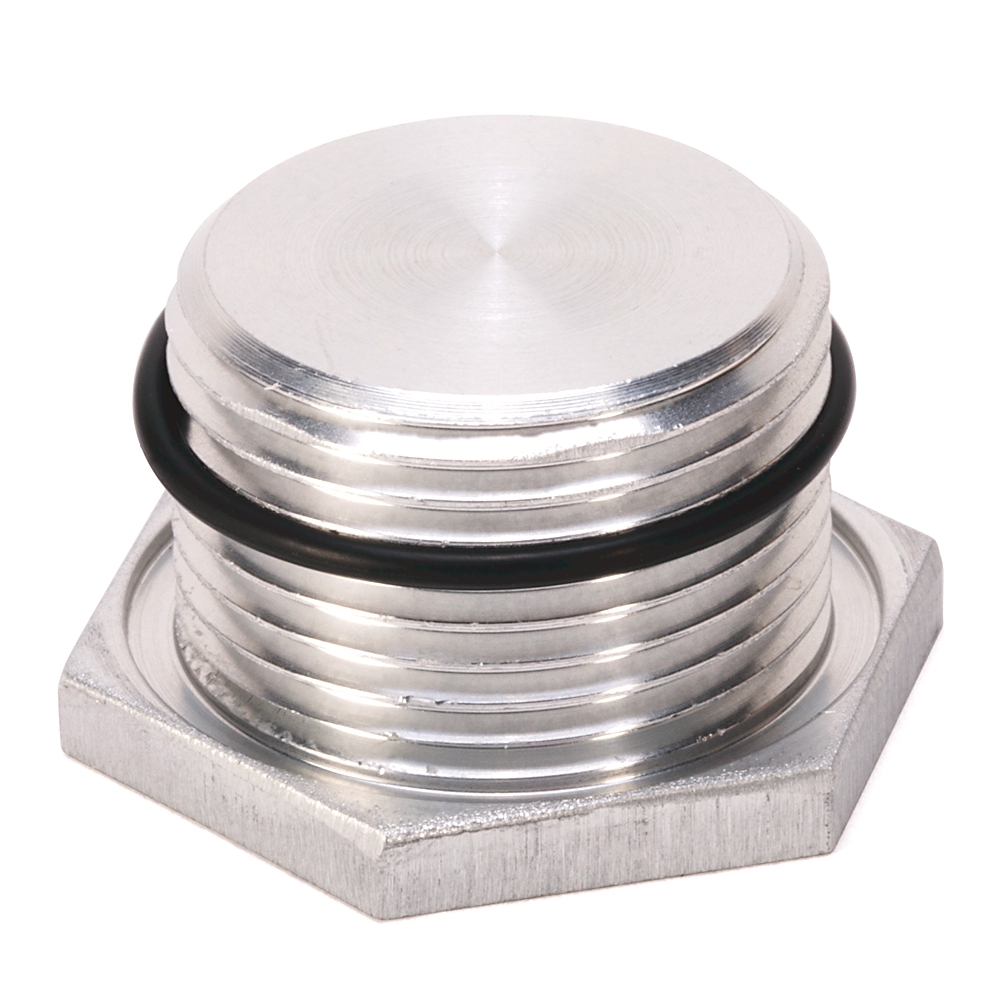

Allen-Bradley Allen-Bradley 800H NEMA 7/9 Push-Button Accessory 800H-NPRD92

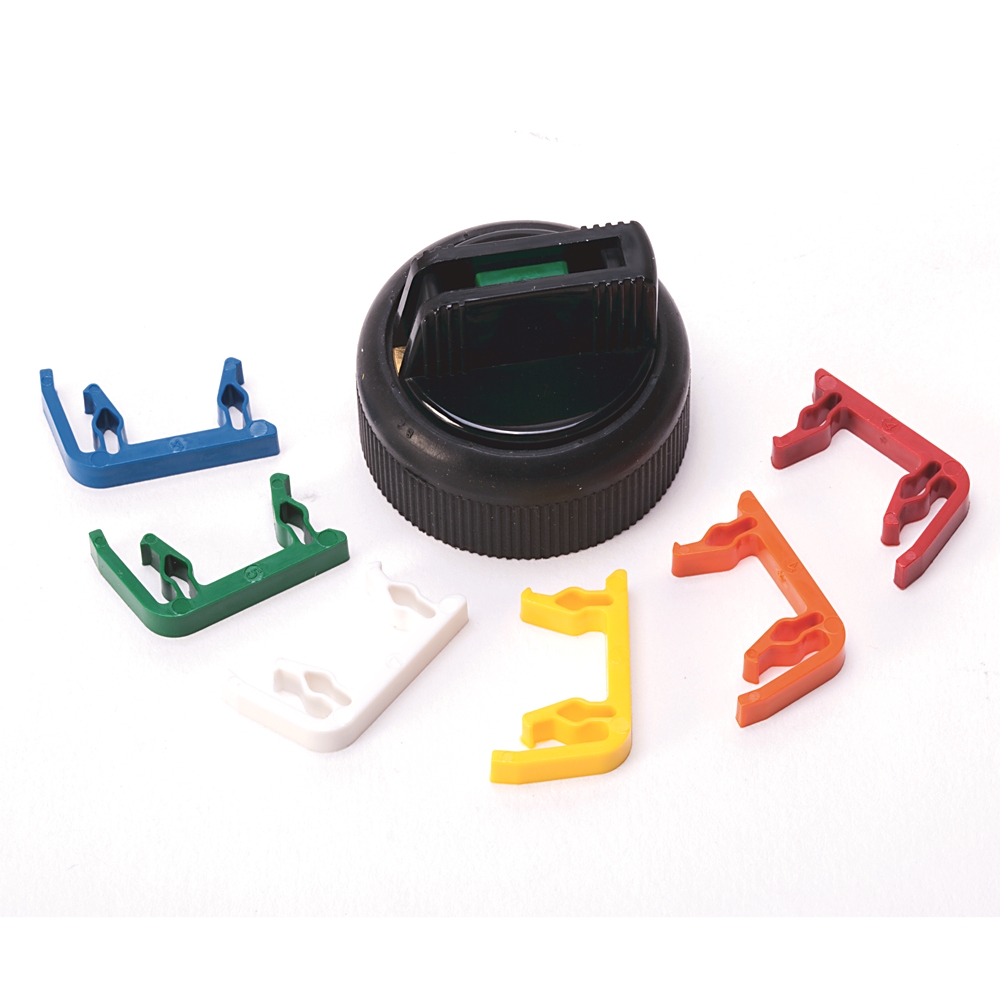

Allen-Bradley Allen-Bradley 800H 30 mm Push-Button Accessory 800H-NR103
