Allen-Bradley 30mm Selector Switch 800H PB 800H-HR2A2
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 2-NO standard contacts |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Enclosure compatibility (NEMA type) | 1, 4, 4X, 12, 13 |
| Hazardous location rating | false |
| Hole diameter | 30.5 mm |
| Humidity | 50 % |
| Lifecycle Status | Active |
| Number of switch positions | 2 |
| Operating Temperature | -25 °C |
| Operator cap color | Black with white Insert |
| Operator cap type | Standard knob |
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator function | Maintained |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Selector switch |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Terminations with finger safe covers | false |
| Type | 30 mm Selector Switch |
| Type of electric connection | Screw connection |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800H-HR2A2?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-HR2A2?
800H-HR2A2 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800H-HR2A2?
Key specifications include Build America, Buy America: No; Contact block configuration: 2-NO standard contacts; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC @ 600V DC. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-HR2A2 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 30mm Selector Switch 800H PB 800H-HR2AR
Allen-Bradley Allen-Bradley 30mm Selector Switch 800H PB 800H-HR2A
Allen-Bradley Allen-Bradley 30mm Selector Switch 800H PB 800H-HR2AV

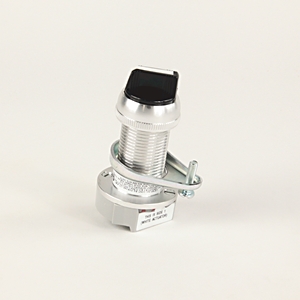

Allen-Bradley Allen-Bradley Type 7&9 Selector Switch 800H PB 800H-HPX5KL8AXXX

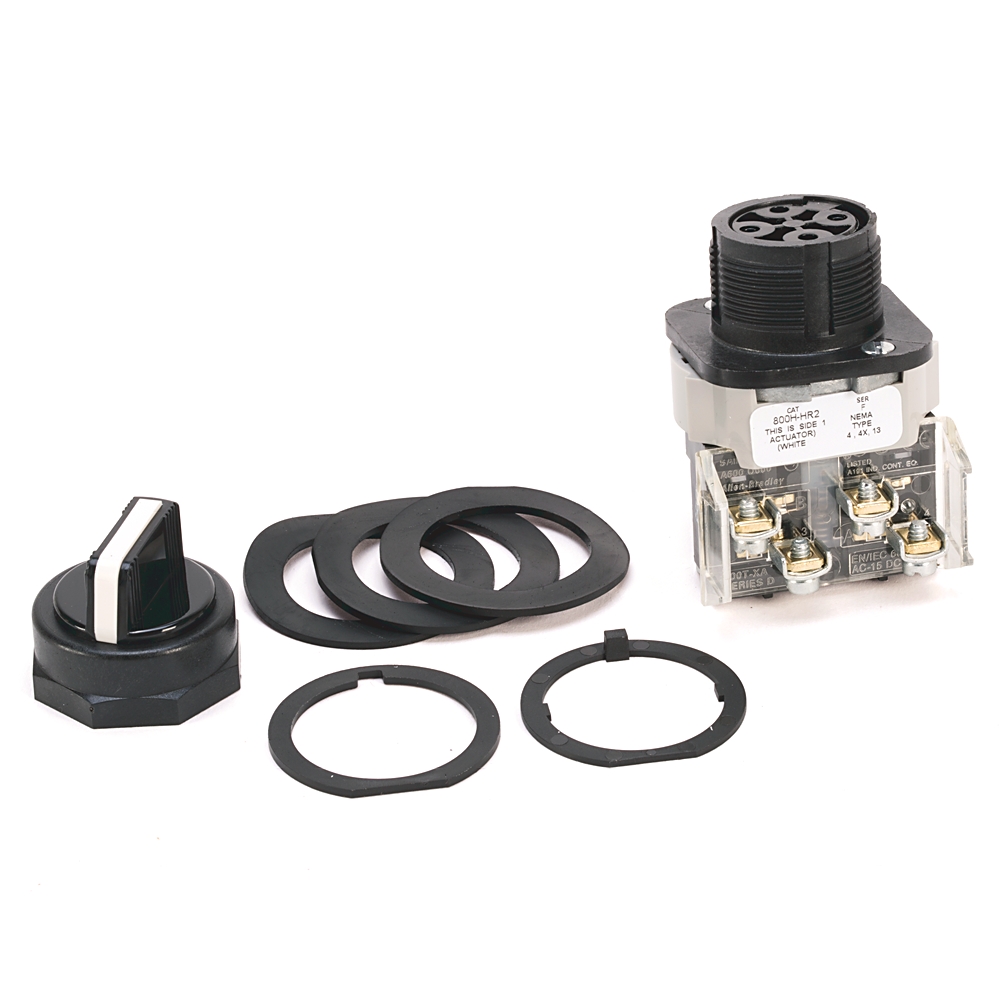

Allen-Bradley Allen-Bradley 30mm Selector Switch 800H PB 800H-HR2AY
