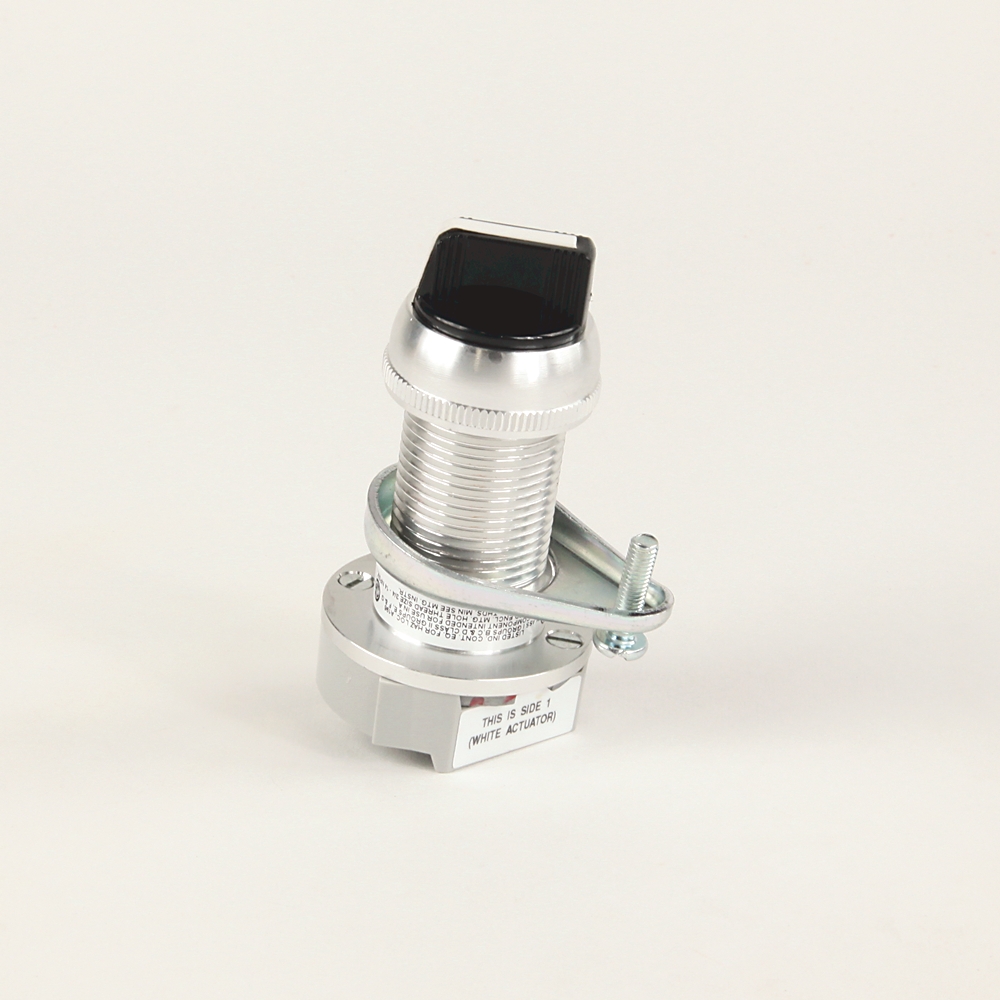

Allen-Bradley Type 7&9 Selector Switch 800H PB 800H-HP4808KL8DXXX
| 2-position cam options | KL8 cam |
|---|---|
| 2-position lock/function | Spring return from right, lock in left position, standard key |
| Build America, Buy America | No |
| Contact operation | Slow, double make and break |
| Degree of protection | Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories) |
| Dielectric strength | 2200V @ 1min, 1300V @ 1min (Logic Reed) |
| Electrical life cycle | 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed) |
| Finger-safe guards | No guards on terminals |
| Hole diameter | 30.5 mm |
| Humidity | 50% @ 104°F (40 °C) |
| Key options | D111 |
| Lifecycle Status | Discontinued |
| Material front ring | Plastic |
| Mechanical life operations | 200000 min |
| Number of contacts as normally open contact | 1 |
| Number of positions | 2-position selector switch |
| Number of switch positions | 2 |
| Operating Temperature | -20 °C |
| Operational voltage (Ue), max | 600V AC @ 600V DC |
| Position 1 contact block | 1 NO, standard contact block (800T-XD1) |
| Position 2 contact block | No block this position |
| Position 3 contact block | No block this position |
| Position 4 contact block | No block this position |
| Rated operational current | 69VA @ 28...600V DC |
| Rated operational current, break | 720VA @ 72...120V AC |
| Rated operational current, make | 7200VA @ 120...600V AC |
| Repair Options Available | No |
| Shock | 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G |
| Spring-return | true |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Switching function latching | false |
| Terminal screw torque | 6 in-lb |
| Thermal continuous current (Ith), max | 10A AC @ 2.5A DC |
| Type of control element | Key |
| Type of electric connection | Screw connection |
| Typical operating forces with spring-return selector switches | 5 in-lb to stop, 0.2 in-lb to return |
| Utilization category | AC-15 per IEC, DC-13 per IEC |
| Vibration | 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed) |
| Wire gauge | 18 to 14 AWG |
| With front ring | true |
| With light source | false |
Frequently Asked Questions
How do I get pricing for 800H-HP4808KL8DXXX?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-HP4808KL8DXXX?
800H-HP4808KL8DXXX is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800H-HP4808KL8DXXX?
Key specifications include 2-position cam options: KL8 cam; 2-position lock/function: Spring return from right, lock in left position, standard key; Build America, Buy America: No; Contact operation: Slow, double make and break. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-HP4808KL8DXXX ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Type 7&9 Selector Switch 800H PB 800H-HP4806KL8AAXX
Allen-Bradley Allen-Bradley Type 7&9 Selector Switch 800H PB 800H-HP4810KL8DXXX

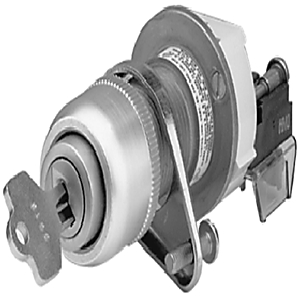

Allen-Bradley Allen-Bradley Type 7&9 Selector Switch 800H PB 800H-HP4812KL8AAXX
