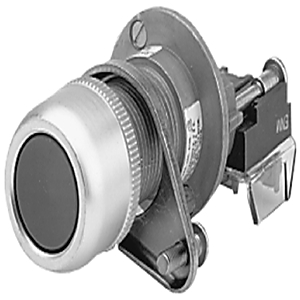

Allen-Bradley Type 7&9 800H PB 800H-BP9B
Allen-Bradley 800H-BP9B - Pushbuttons & Pilot Devices - Operating Temperature: -20 °C; Storage Temperature: -40 °C; Degree of protection: Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories).
Allen-Bradley 800H-BP9B is a Pushbuttons & Pilot Devices catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -20 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Degree of protection: Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories); Type: Type 7&9; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Dielectric strength: 2200V @ 1min, 1300V @ 1min (Logic Reed); Electrical life cycle: 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed); Mechanical life operations: 250000 minimum; Shock: 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G; Vibration: 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed); Humidity: 50% @ 104°F (40 °C); Type of electric connection: Screw connection. The complete technical table is shown in the Specifications tab on this page.
| Additional operator features | Standard |
|---|---|
| Build America, Buy America | No |
| Bull Number Modifier | No Guards - on Terminals |
| Button Color | Yellow |
| Colour button | Yellow |
| Construction type lens | Round |
| Contact block | 2 NO, 2 NC, standard contact block (800T-XA) |
| Contact operation for Logic Reed contact blocks | Snap action |
| Contact operation for low voltage contact blocks | Slow, double make and break |
| Contact operation for mini contact blocks | Slow, double make and break |
| Contact operation for sealed switch contact blocks | Snap action |
| Degree of protection | Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories) |
| Dielectric strength | 2200V @ 1min, 1300V @ 1min (Logic Reed) |
| Electrical life cycle | 1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed) |
| Finger-safe guards | No guards on terminals |
| Humidity | 50% @ 104°F (40 °C) |
| Lifecycle Status | Discontinued |
| Material front ring | Plastic |
| Mechanical life operations | 250000 minimum |
| Number of command positions | 1 |
| Operating Temperature | -20 °C |
| Operational voltage (Ue), max | 600V AC @ 600V DC |
| Operator Type | Extended head |
| Position 2 contact block | 1-NO 1-NC Standard Contacts |
| Position 4 contact block | No Block This Position |
| Rated operational current | 69VA @ 28...600V DC |
| Rated operational current, break | 720VA @ 72...120V AC |
| Rated operational current, make | 7200VA @ 120...600V AC |
| Repair Options Available | No |
| Shock | 1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G |
| Spring-return | true |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Terminal screw torque | 6 in-lb |
| Thermal continuous current (Ith), max | 10A AC @ 2.5A DC |
| Type | Type 7&9 |
| Type of electric connection | Screw connection |
| Typical operating force for flush, extended, standard mushroom operator without contact blocks | 2.9 lb maximum |
| Typical operating force for Logic Reed contact blocks | 1 lb maximum |
| Typical operating force for sealed switch contact blocks | 3 lb maximum at 0.205 in plunger travel |
| Typical operating force for stackable sealed switch contact blocks | 1 lb maximum |
| Typical operating force for standard contact blocks (800T-XA) | 1 lb |
| Utilization category | AC-15 per IEC, DC-13 per IEC |
| Vibration | 10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed) |
| Wire gauge | 18 AWG |
| With front ring | true |
Frequently Asked Questions
How do I get pricing for 800H-BP9B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800H-BP9B?
800H-BP9B is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800H-BP9B?
Key specifications include Additional operator features: Standard; Build America, Buy America: No; Bull Number Modifier: No Guards - on Terminals; Button Color: Yellow. The full specification table on this page lists every published attribute for this part.
How quickly can 800H-BP9B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
