Allen-Bradley 22mm Selector Switch 800F PB 800FP-LSM24MN5RX11
Allen-Bradley 800FP-LSM24MN5RX11 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
This listing covers the Allen-Bradley 800FP-LSM24MN5RX11, a part number in the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Type of control element: Short thumb-grip; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Type of electric connection: Screw connection; Operator Type: Illuminated selector switch; Contact block configuration: 1 NO/1 NC; Contact block operational voltage, max: 600V (A600, Q600) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 1 NO/1 NC |
| Contact block durability | 1.0E7 |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Standard |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Enclosure compatibility | IP66, Type 4/4X/13 (Round plastic operator) |
| Hazardous location rating | false |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | LED |
| Illumination module input voltage | 120V AC |
| Illumination module mounting style | Latch |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Illumination module type | LED |
| Lamp type | Red LED |
| Latch material | Metal |
| Lifecycle Status | Active |
| Material front ring | Plastic |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of switch positions | 2 |
| Operating Temperature | -25 °C |
| Operator cap color | Red |
| Operator cap/button material | Plastic |
| Operator construction/material | Plastic |
| Operator function | Maintained, 2 position |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Illuminated selector switch |
| Packaging | Standard pack (1 per package) |
| Power module type | Integrated LED module |
| Repair Options Available | No |
| Shock | 100 G |
| Spring-return | false |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Supply voltage | 120 V |
| Switch orientation | Standard |
| Switching function latching | true |
| Termination style | Screw |
| Type of control element | Short thumb-grip |
| Type of electric connection | Screw connection |
| Vibration | 10 G |
| With light source | true |
Frequently Asked Questions
How do I get pricing for 800FP-LSM24MN5RX11?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FP-LSM24MN5RX11?
800FP-LSM24MN5RX11 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800FP-LSM24MN5RX11?
Key specifications include Build America, Buy America: No; Contact block configuration: 1 NO/1 NC; Contact block durability: 1.0E7; Contact block mounting style: Latch. The full specification table on this page lists every published attribute for this part.
How quickly can 800FP-LSM24MN5RX11 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

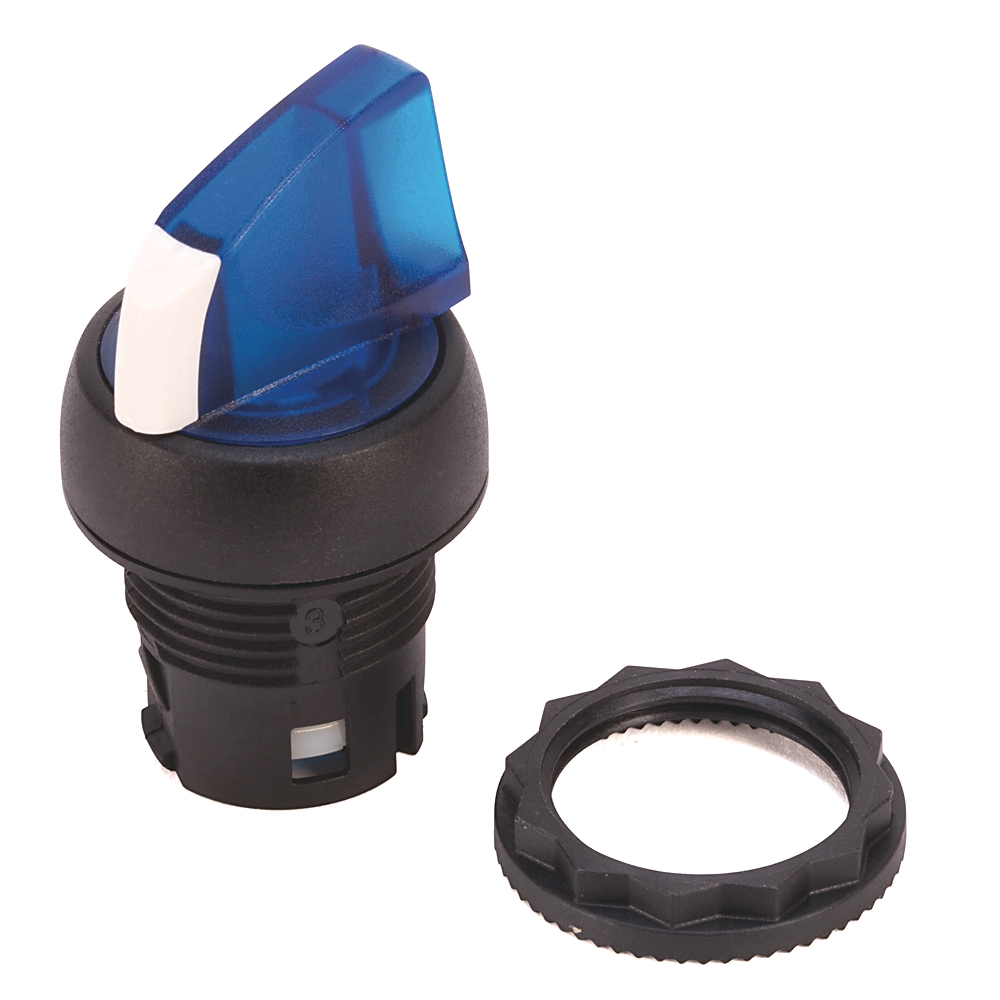

Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FP-LSM23PN7GX11
