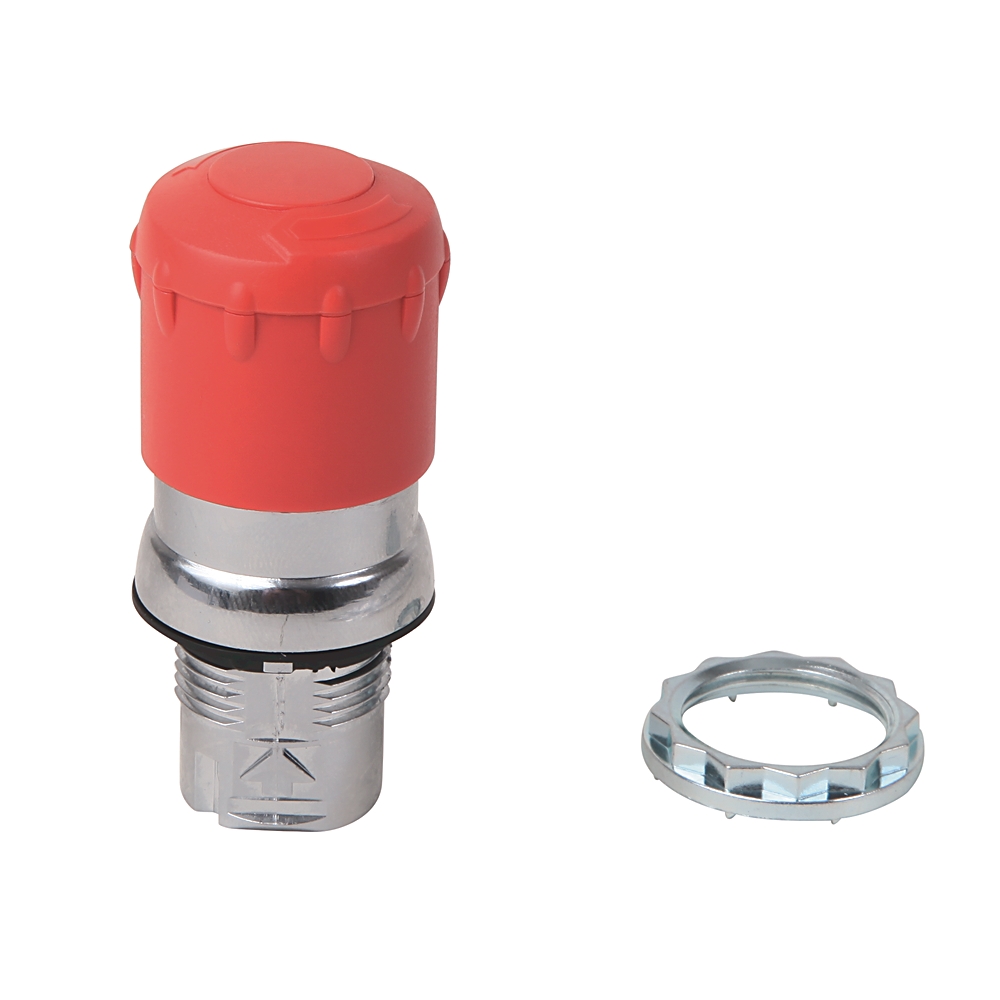

Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-MT34PX01S
Allen-Bradley 800FM-MT34PX01S - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
The 800FM-MT34PX01S from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Mounting method: Surface mounting; Operator Type: 30 mm twist to release; Contact block configuration: 1 NC; Contact block operational voltage, max: 600V (A600, Q600) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²). See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Connection type auxiliary circuit | Screw connection |
| Contact block configuration | 1 NC |
| Contact block durability | 10000000 cycles |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Self monitoring |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Diameter cap | 30 mm |
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | No power module |
| Illumination module input voltage | No power module |
| Illumination module type | No power module |
| Latch material | Plastic |
| Lifecycle Status | Active |
| Mounting method | Surface mounting |
| Number of contacts as normally closed contact | 1 |
| Operating Temperature | -25 °C |
| Operator cap color | Red |
| Operator cap type | Mushroom head |
| Operator cap/button material | Metal |
| Operator cap/button size | 30 mm twist to release |
| Operator construction/material | Metal |
| Operator function | 22 mm twist to release E-stop |
| Operator mechanical design life (cycles, min.) | 300000 |
| Operator Type | 30 mm twist to release |
| Repair Options Available | No |
| Shock | 100 G |
| Storage Temperature | -40 °C |
| Termination style | Screw contact block |
| Unlocking method | Turn-release |
| Vibration | 10 G |
| With lighting | false |
Frequently Asked Questions
How do I get pricing for 800FM-MT34PX01S?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FM-MT34PX01S?
800FM-MT34PX01S is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800FM-MT34PX01S?
Key specifications include Build America, Buy America: No; Connection type auxiliary circuit: Screw connection; Contact block configuration: 1 NC; Contact block durability: 10000000 cycles. The full specification table on this page lists every published attribute for this part.
How quickly can 800FM-MT34PX01S ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

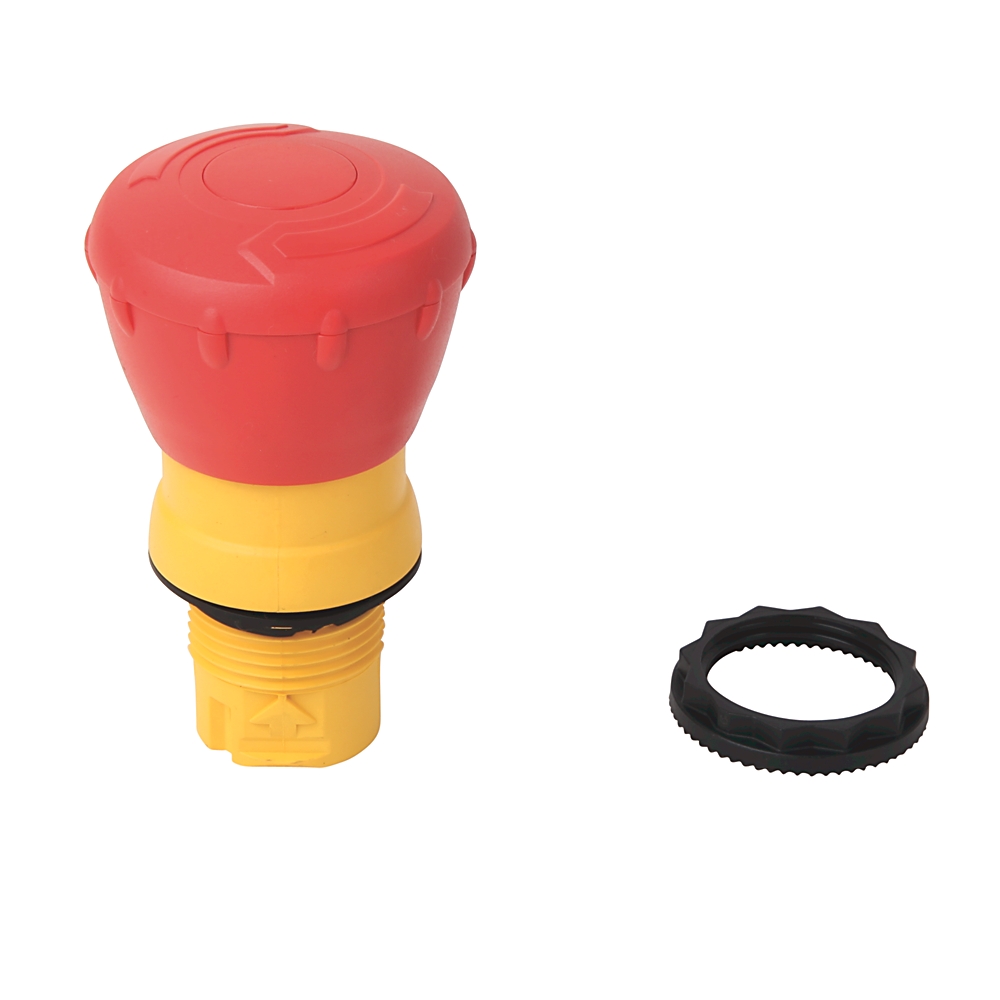

Allen-Bradley Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-MT34MX22
Allen-Bradley Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-MT34PX22
Allen-Bradley Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-MT34MX11S

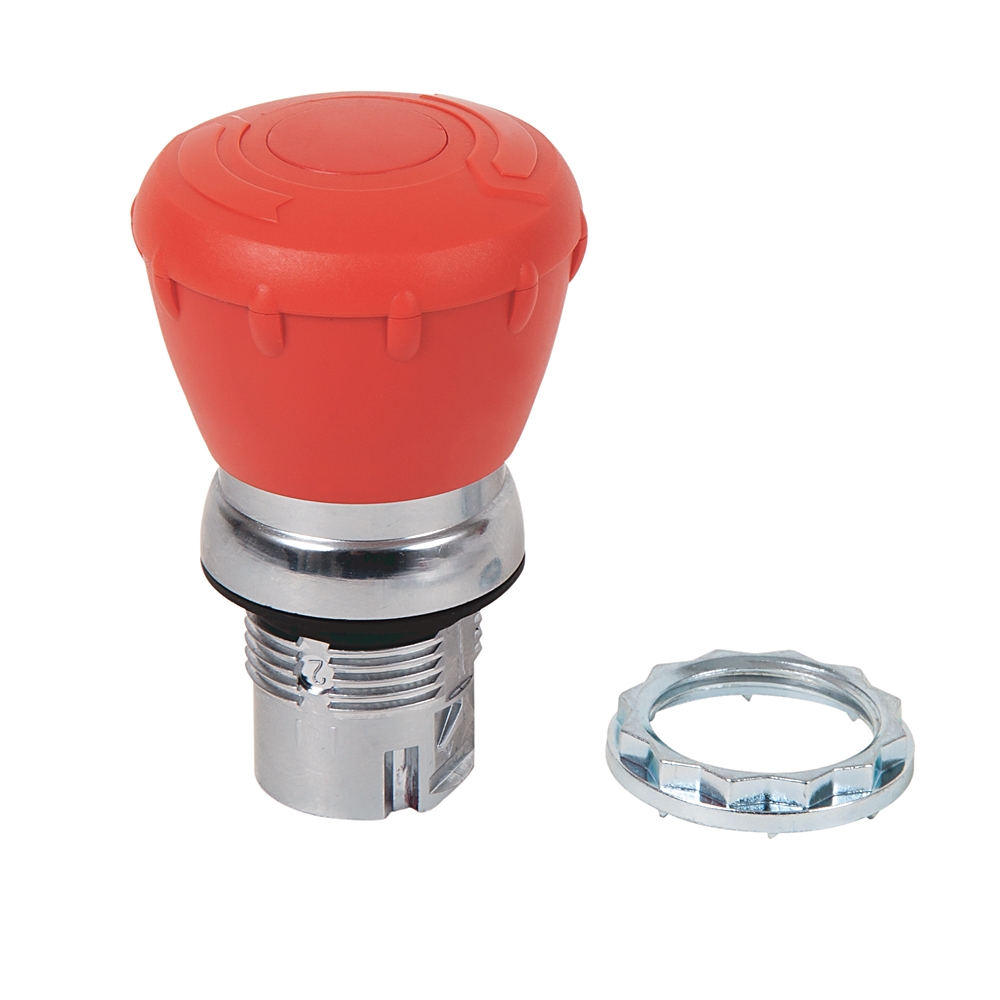

Allen-Bradley Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-MT44EMX03S
