Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-LMT64MN3RX02
Allen-Bradley 800FM-LMT64MN3RX02 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
The Allen-Bradley 800FM-LMT64MN3RX02 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Mounting method: Surface mounting; Operator Type: 60 mm twist to release lit; Contact block configuration: 2 NC; Contact block operational voltage, max: 600V (A600, Q600) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²). The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Connection type auxiliary circuit | Screw connection |
| Contact block configuration | 2 NC |
| Contact block durability | 10000000 cycles |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Standard |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Diameter cap | 60 mm |
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | Red LED |
| Illumination module input voltage | 24V AC/DC (incandescent or LED) |
| Illumination module mounting style | Latch |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Illumination module type | Integrated LED module |
| Latch material | Metal |
| Lifecycle Status | Active |
| Mounting method | Surface mounting |
| Number of contacts as normally closed contact | 2 |
| Operating Temperature | -25 °C |
| Operator cap color | Red |
| Operator cap type | Mushroom head |
| Operator cap/button material | Metal |
| Operator cap/button size | 60 mm twist to release lit |
| Operator construction/material | Metal |
| Operator function | 22 mm twist to release E-stop |
| Operator mechanical design life (cycles, min.) | 300000 |
| Operator Type | 60 mm twist to release lit |
| Repair Options Available | No |
| Shock | 100 G |
| Storage Temperature | -40 °C |
| Termination style | Screw contact block |
| Unlocking method | Turn-release |
| Vibration | 10 G |
| With lighting | true |
Frequently Asked Questions
How do I get pricing for 800FM-LMT64MN3RX02?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FM-LMT64MN3RX02?
800FM-LMT64MN3RX02 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800FM-LMT64MN3RX02?
Key specifications include Build America, Buy America: No; Connection type auxiliary circuit: Screw connection; Contact block configuration: 2 NC; Contact block durability: 10000000 cycles. The full specification table on this page lists every published attribute for this part.
How quickly can 800FM-LMT64MN3RX02 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-LMT44PN5RX11

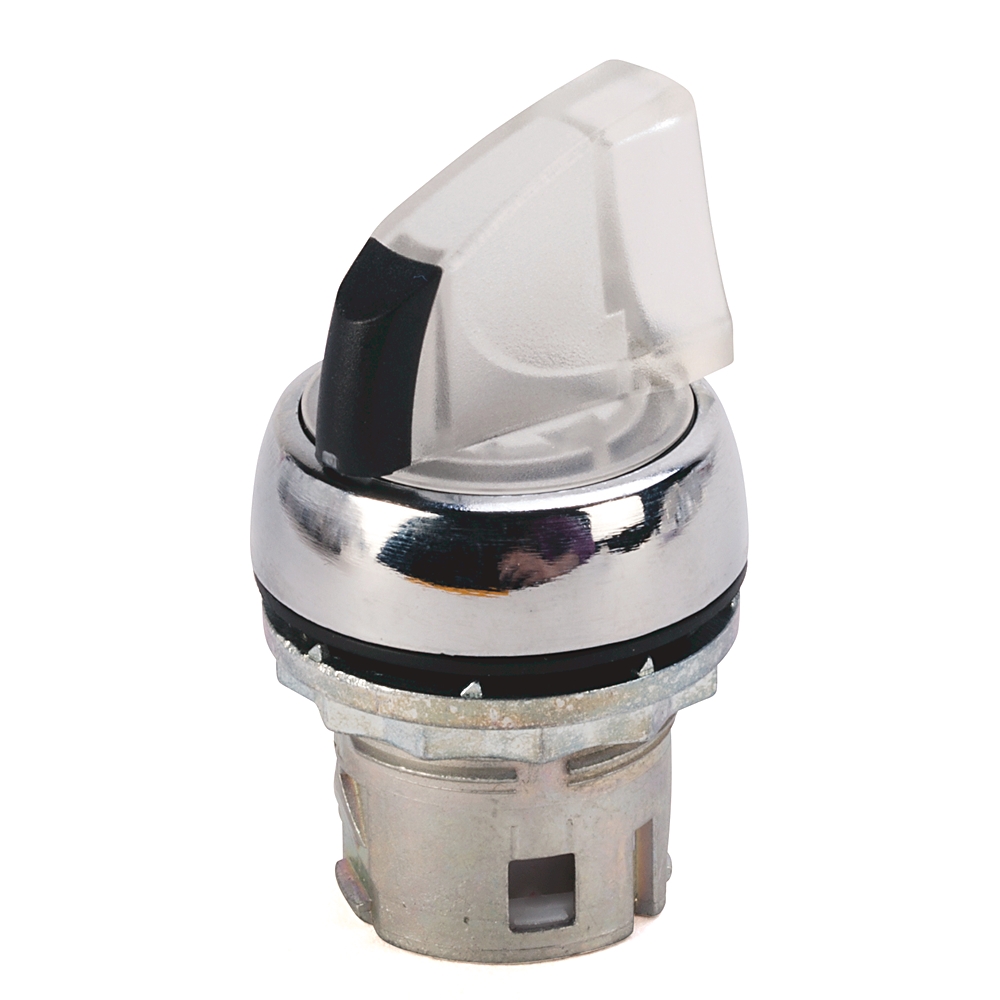

Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-LSB37PN3WX20

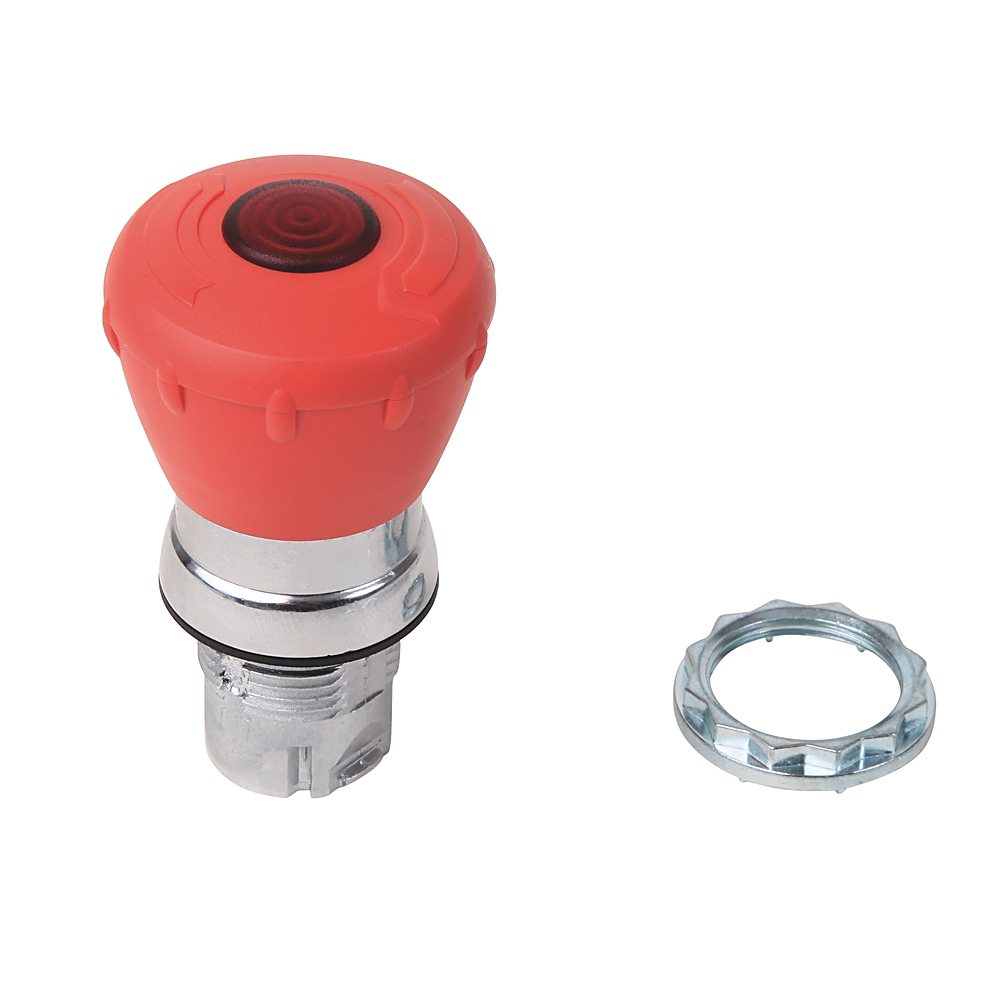

Allen-Bradley Allen-Bradley 22mm Twist To Release E-Stop 800F PB 800FM-LMT44PN3RX13
