Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM34MX22
Allen-Bradley 800FM-KM34MX22 - industrial components - Product Series: A; Operating Temperature: -25 °C; Storage Temperature: -40 °C.
The 800FM-KM34MX22 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Product Series: A and Operating Temperature: -25 °C.
The specification set recorded for this part number covers Storage Temperature: -40 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Environmental Compliance: See Details | Submit Inquiry; SVHC Information: View Guidance; Type of control element: Key; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Type of electric connection: Screw connection; Operator Type: Keyed selector switch. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 2 NO/2 NC |
| Contact block durability | 300000 cycles |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - Screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Standard |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Environmental Compliance | <a href='https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html'>See Details</a> | <a href='#modal-submit-inquiry'>Submit Inquiry</a> |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Key lock, standard | 3825 |
| Key removal position | Center |
| Latch material | Metal |
| Lifecycle Status | Active |
| Material front ring | Metal |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 2 |
| Number of switch positions | 3 |
| Operating Temperature | -25 °C |
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator function | Maintained, 3 position |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Keyed selector switch |
| Product Series | A |
| Repair Options Available | No |
| Shock | 100 G |
| Spring-return | false |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| SVHC Information | <a href='https://literature.rockwellautomation.com/idc/groups/literature/documents/td/pec-td011_-en-e.pdf'>View Guidance</a> |
| Switching function latching | true |
| Termination style | Screw |
| Type of control element | Key |
| Type of electric connection | Screw connection |
| Vibration | 10 G |
| With front ring | true |
| With light source | false |
Frequently Asked Questions
How do I get pricing for 800FM-KM34MX22?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FM-KM34MX22?
800FM-KM34MX22 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800FM-KM34MX22?
Key specifications include Build America, Buy America: No; Contact block configuration: 2 NO/2 NC; Contact block durability: 300000 cycles; Contact block mounting style: Latch. The full specification table on this page lists every published attribute for this part.
How quickly can 800FM-KM34MX22 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM34MX21
Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM34MX40
Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM34MX20

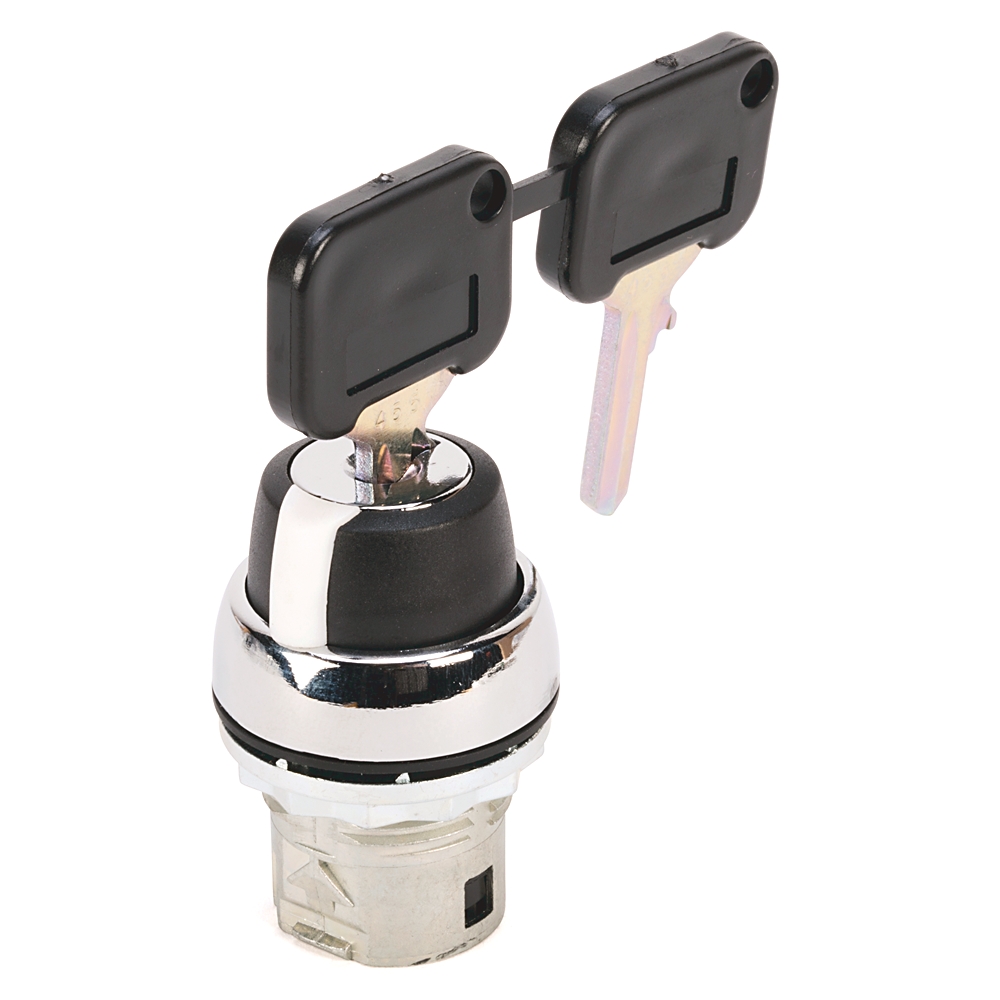

Allen-Bradley Allen-Bradley 22mm Selector Switch 800F PB 800FM-KM34PX20
