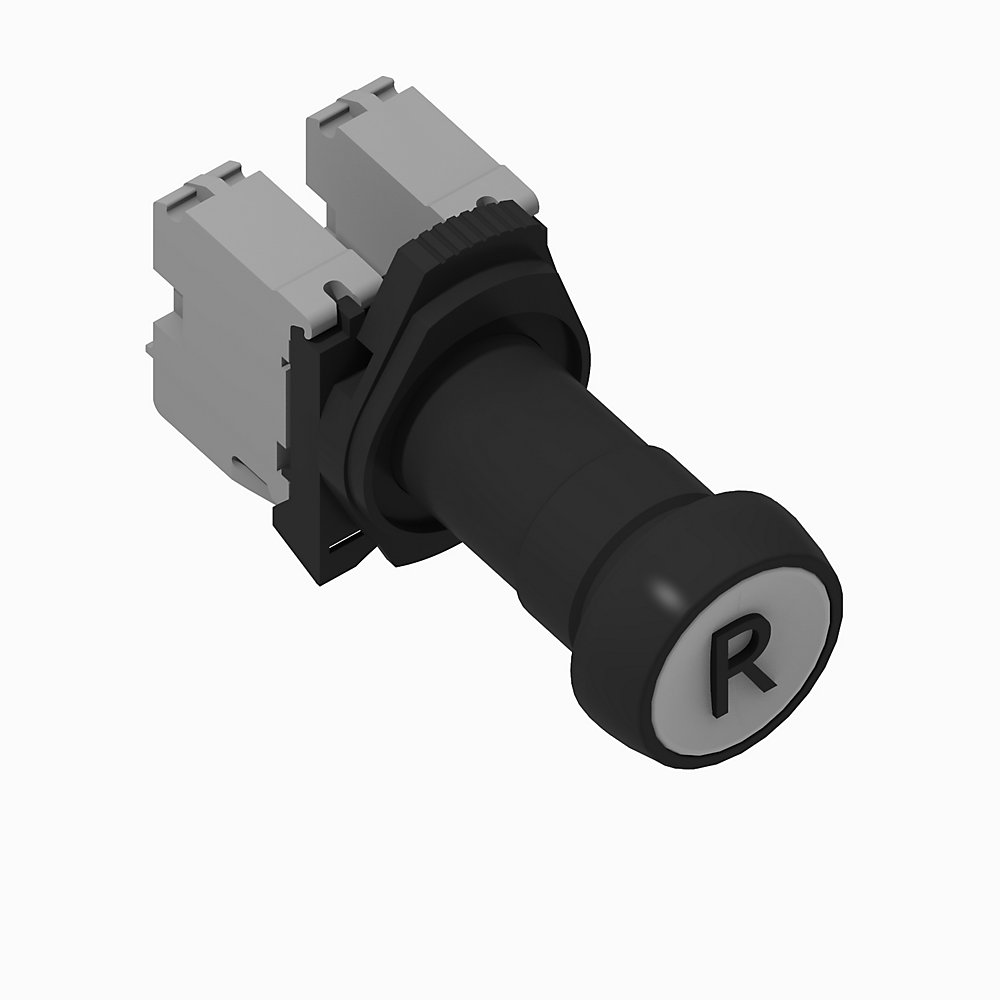

Allen-Bradley 22mm Momentary Push Button 800F PB 800FD-F111X20
Allen-Bradley 800FD-F111X20 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
This listing covers the Allen-Bradley 800FD-F111X20, a part number in the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Type of electric connection: Screw connection; Operator Type: Push button; Contact block configuration: 2 NO; Contact block operational voltage, max: 300V AC @ 300V DC (B300, R300) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²). The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 2 NO |
| Contact block durability | 300000 |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 300V AC @ 300V DC (B300, R300) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 5 A |
| Contact block utilization category (AC) | B300, AC 15 - screw termination |
| Contact block utilization category (DC) | R300, DC-13 - screw termination |
| Enclosure compatibility | IP66 (Type 3/3R/4/4X/12/13) |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Latch material | Plastic |
| Lifecycle Status | Active |
| Number of contacts as normally open contact | 2 |
| Operating Temperature | -25 °C |
| Operator cap color (lens) | White |
| Operator cap text/symbol | R |
| Operator cap type | Flush push-button |
| Operator cap/button material | Plastic |
| Operator cap/button shape | Round |
| Operator construction/material | Plastic |
| Operator function | 22 mm momentary push button |
| Operator Type | Push button |
| Repair Options Available | No |
| Shock | 100 G |
| Storage Temperature | -40 °C |
| Suitable for illumination | false |
| Termination style | Screw |
| Type of electric connection | Screw connection |
| Vibration | 10 G |
Frequently Asked Questions
How do I get pricing for 800FD-F111X20?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800FD-F111X20?
800FD-F111X20 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800FD-F111X20?
Key specifications include Build America, Buy America: No; Contact block configuration: 2 NO; Contact block durability: 300000; Contact block mounting style: Latch. The full specification table on this page lists every published attribute for this part.
How quickly can 800FD-F111X20 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

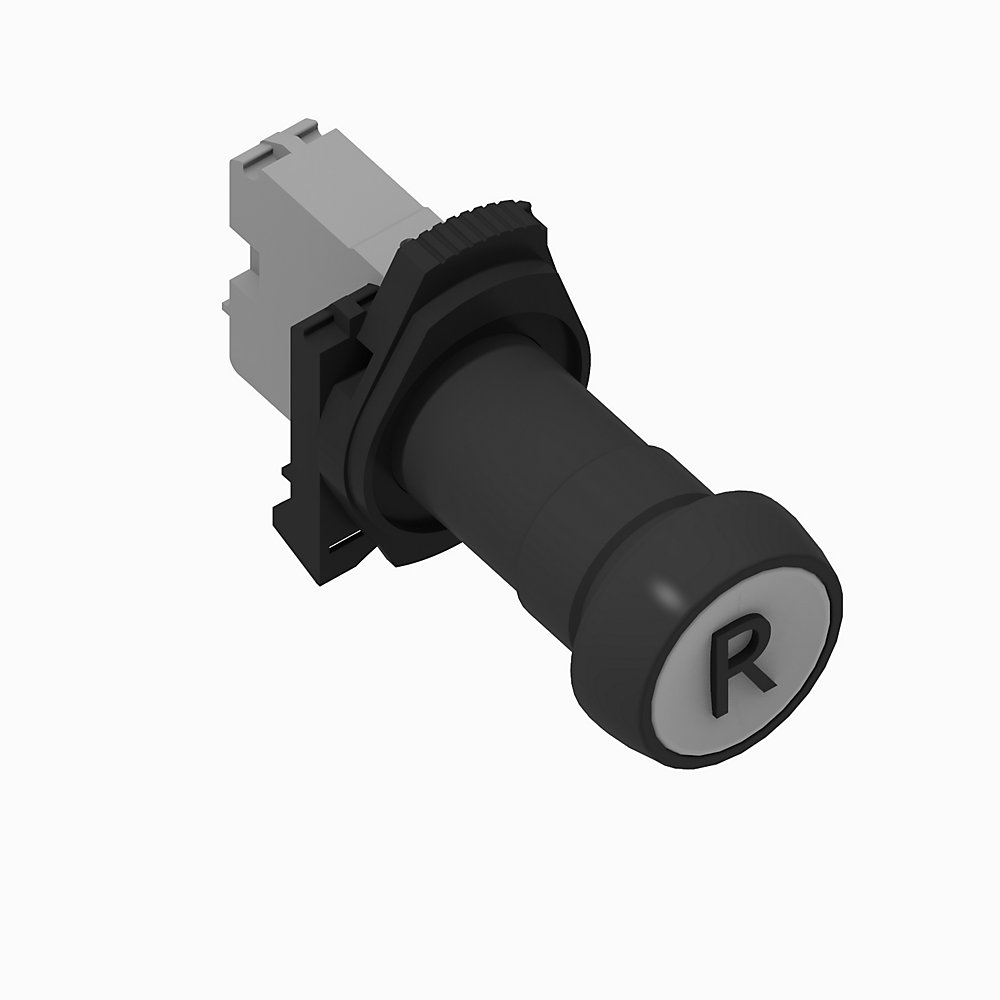

Allen-Bradley Allen-Bradley 22mm Momentary Push Button 800F PB 800FD-F111X01

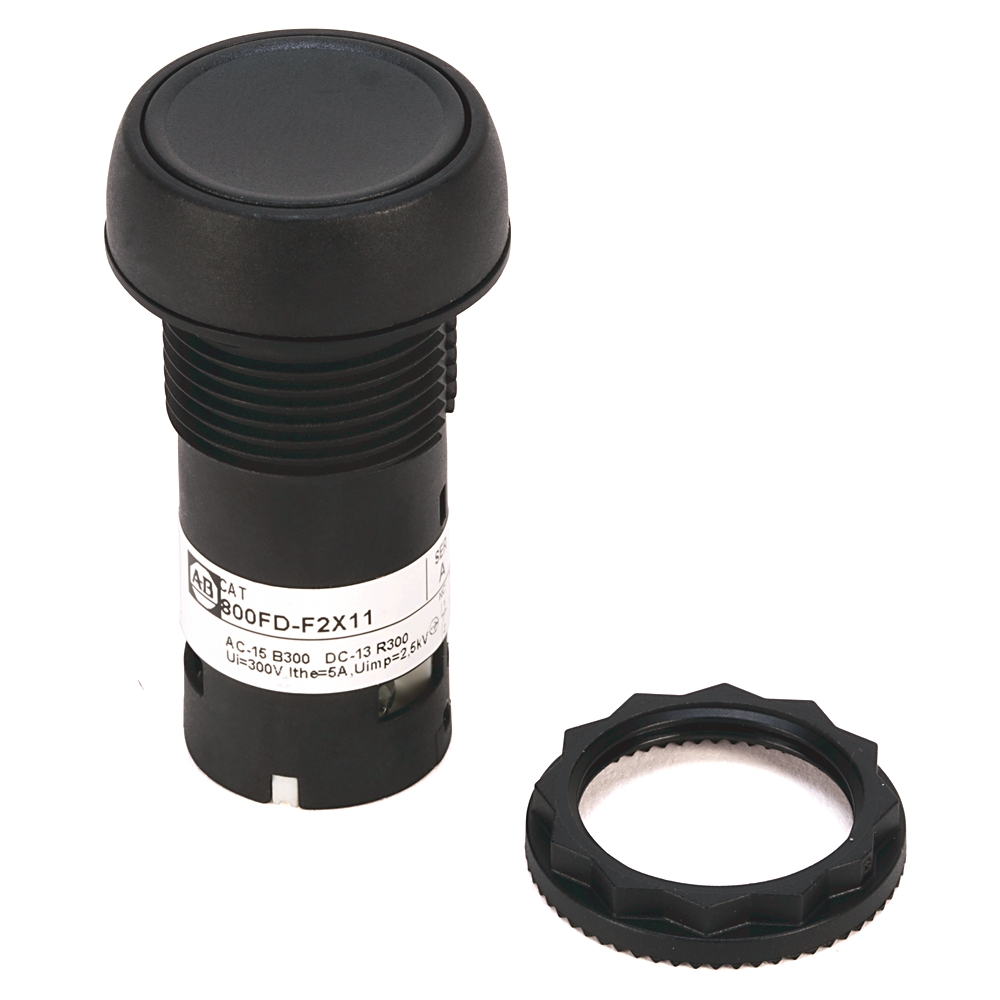

Allen-Bradley Allen-Bradley 22mm Momentary Push Button 800F PB 800FD-F211X10
Allen-Bradley Allen-Bradley 22mm Momentary Push Button 800F PB 800FD-F108X02

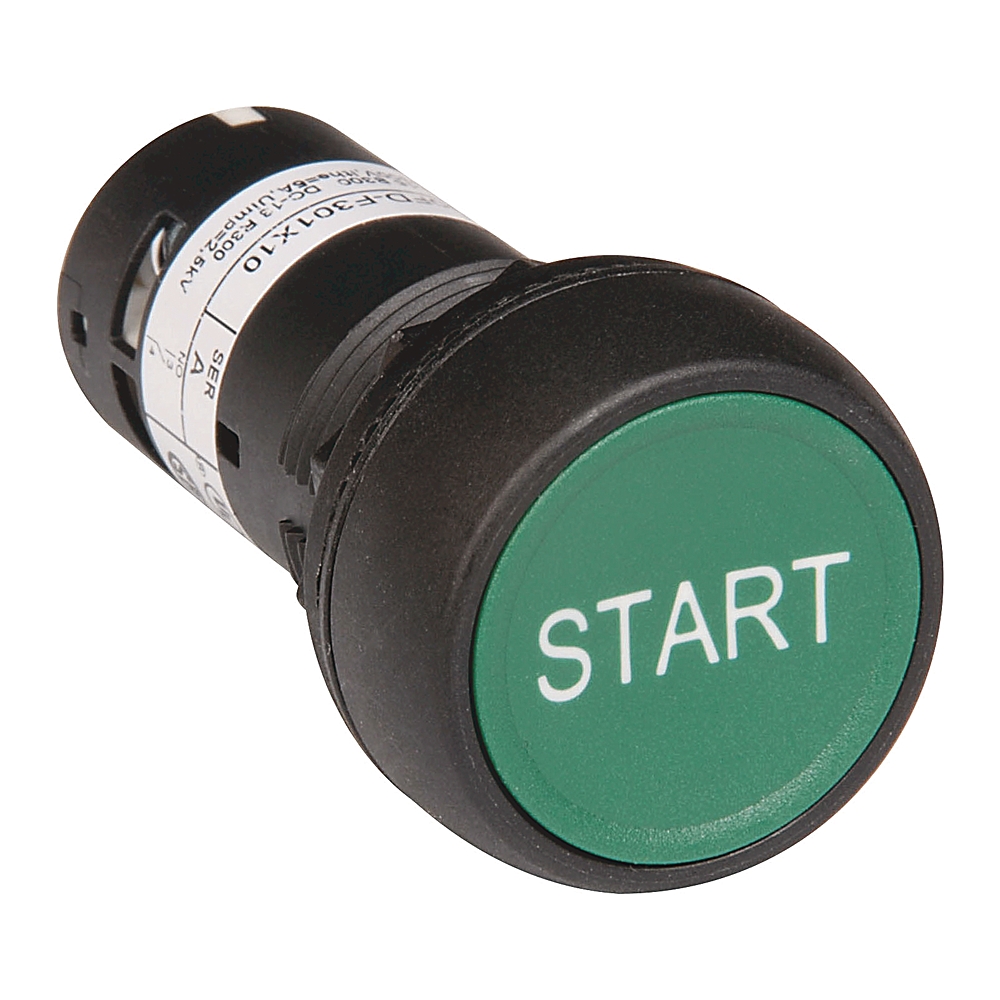

Allen-Bradley Allen-Bradley 22mm Momentary Push Button 800F PB 800FD-F301X20
