Allen-Bradley 22mm Contact Block 800F PB, Pack qty.10 800F-X20D
Allen-Bradley 800F-X20D - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Contact Block.
The Allen-Bradley 800F-X20D is part of the Pushbuttons & Pilot Devices range in our industrial catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Type: 22mm Contact Block; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 100 g; Vibration: 10 g; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Contact block configuration: 2 NO; Contact block operational voltage, max: 600V (A600, Q600) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Contact block termination wire range: #18...12 AWG (0.75...2.5 mm²); Contact block thermal current rating: 10 A. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 2 NO |
| Contact block durability | 1.0E7 |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Double circuit |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Latch material | Plastic / metal |
| Lifecycle Status | Active |
| Number of contacts as normally open contact | 2 |
| Operating Temperature | -25 °C |
| Operator mounting hole dimension | 22.5 mm |
| Packaging | Standard pack (1 per package) |
| Repair Options Available | No |
| Shock | 100 g |
| Storage Temperature | -40 °C |
| Termination style | Screw |
| Type | 22mm Contact Block |
| Vibration | 10 g |
Frequently Asked Questions
How do I get pricing for 800F-X20D?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800F-X20D?
800F-X20D is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800F-X20D?
Key specifications include Build America, Buy America: No; Contact block configuration: 2 NO; Contact block durability: 1.0E7; Contact block mounting style: Latch. The full specification table on this page lists every published attribute for this part.
How quickly can 800F-X20D ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 22mm Contact Block 800F PB, Pack qty.10 800F-X11D
Allen-Bradley Allen-Bradley 22 mm Accessory 800F PB 800F-XD7

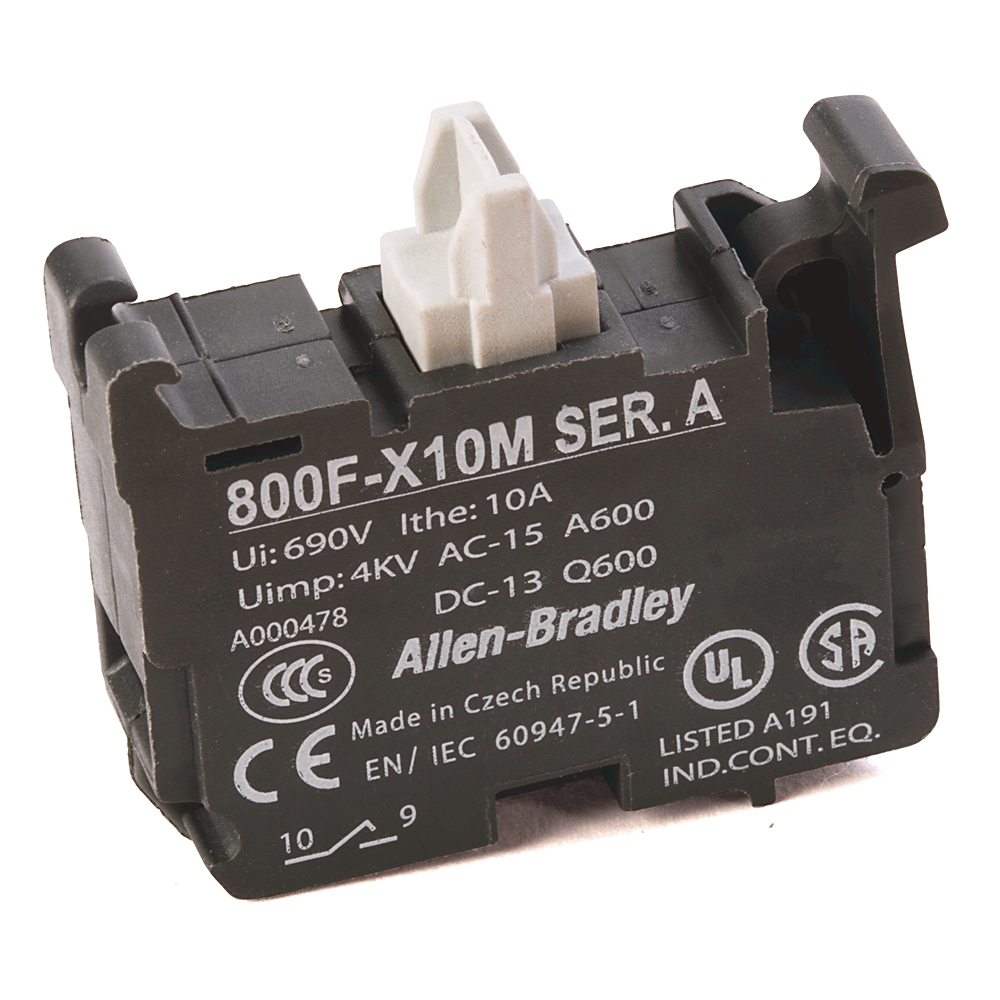

Allen-Bradley Allen-Bradley 800F Contact Block 800F-X10M

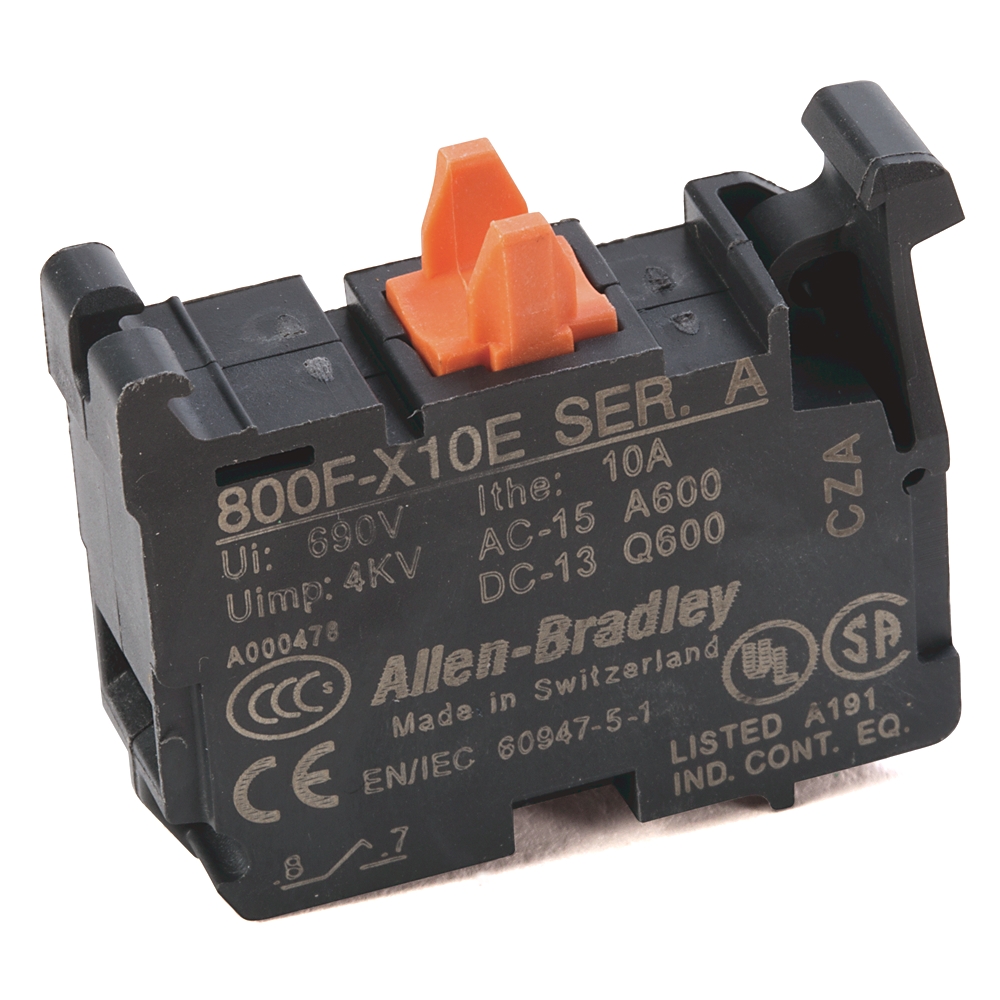

Allen-Bradley Allen-Bradley 22mm Contact Block 800F PB, Pack qty.10 800F-X10E

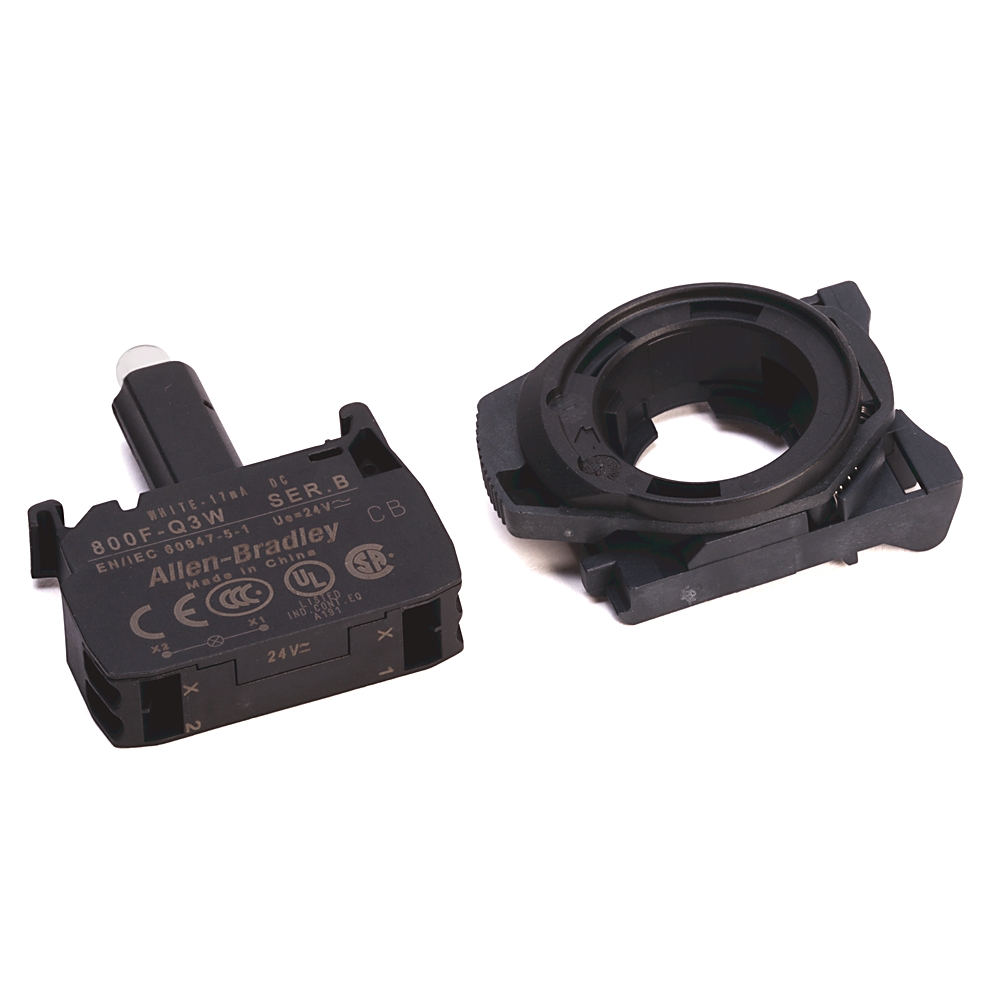

Allen-Bradley Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-PQ3R
