Allen-Bradley 22mm Contact Block 800F PB, Pack qty.10 800F-X01
Allen-Bradley 800F-X01 - Pushbuttons & Pilot Devices - Product Series: A; Operating Temperature: -25 °C; Storage Temperature: -40 °C.
The Allen-Bradley 800F-X01 is part of the Pushbuttons & Pilot Devices range in our industrial catalog. The manufacturer's published data for this part number specifies Product Series: A and Operating Temperature: -25 °C.
Key manufacturer data on file for this item includes Storage Temperature: -40 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Environmental Compliance: See Details | Submit Inquiry; SVHC Information: View Guidance; Shock: 100 g; Vibration: 10 g; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Contact block configuration: 1 NC; Contact block operational voltage, max: 600V (A600, Q600) - screw termination; Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 1 NC |
| Contact block durability | 1.0E7 |
| Contact block mounting style | Latch |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block thermal current rating | 10 A |
| Contact block type | Standard |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Environmental Compliance | <a href='https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html'>See Details</a> | <a href='#modal-submit-inquiry'>Submit Inquiry</a> |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Latch material | Plastic / metal |
| Lifecycle Status | Active |
| Number of contacts as normally closed contact | 1 |
| Operating Temperature | -25 °C |
| Operator mounting hole dimension | 22.5 mm |
| Packaging | Standard pack (1 per package) |
| Product Series | A |
| Repair Options Available | No |
| Shock | 100 g |
| Storage Temperature | -40 °C |
| SVHC Information | <a href='https://literature.rockwellautomation.com/idc/groups/literature/documents/td/pec-td011_-en-e.pdf'>View Guidance</a> |
| Termination style | Screw |
| Vibration | 10 g |
Frequently Asked Questions
How do I get pricing for 800F-X01?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800F-X01?
800F-X01 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800F-X01?
Key specifications include Build America, Buy America: No; Contact block configuration: 1 NC; Contact block durability: 1.0E7; Contact block mounting style: Latch. The full specification table on this page lists every published attribute for this part.
How quickly can 800F-X01 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

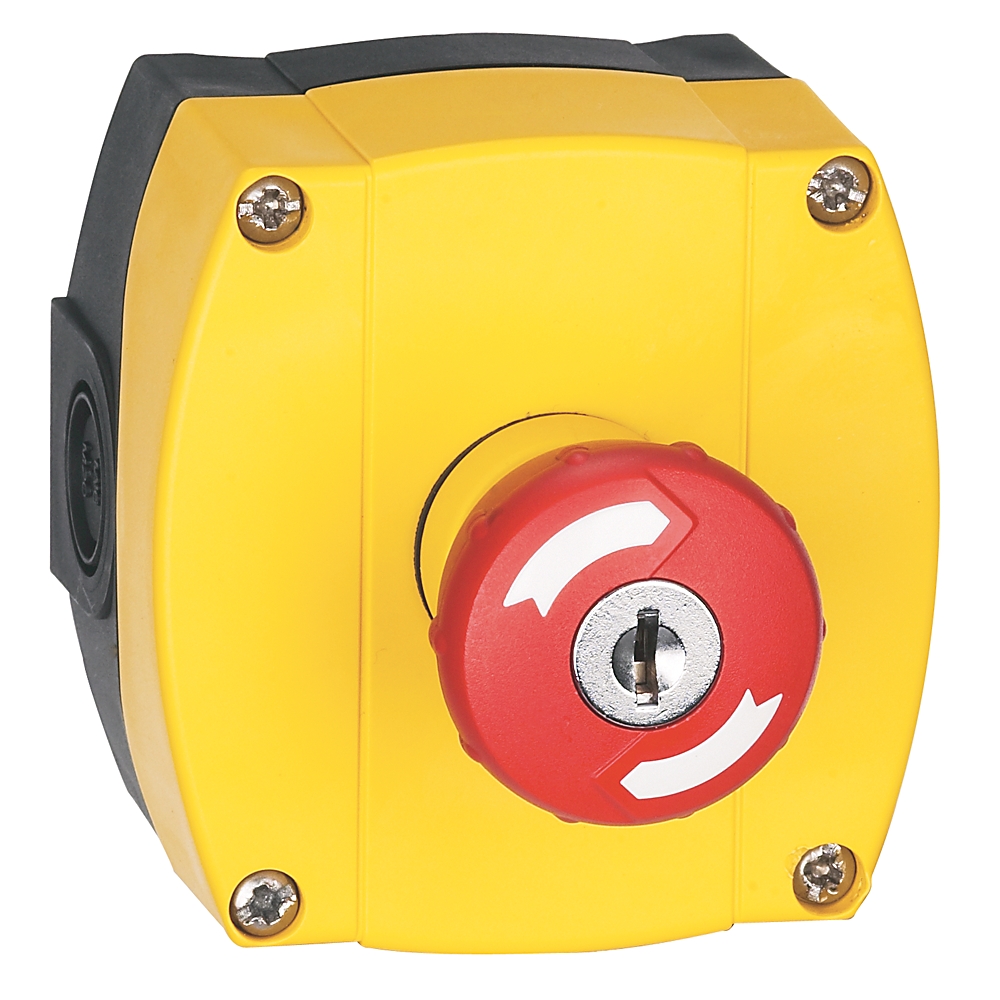

Allen-Bradley Allen-Bradley 22mm Enclosure 800F PB 800F-1YP
Allen-Bradley Allen-Bradley 22mm Contact Block 800F PB, Pack qty.10 800F-X10

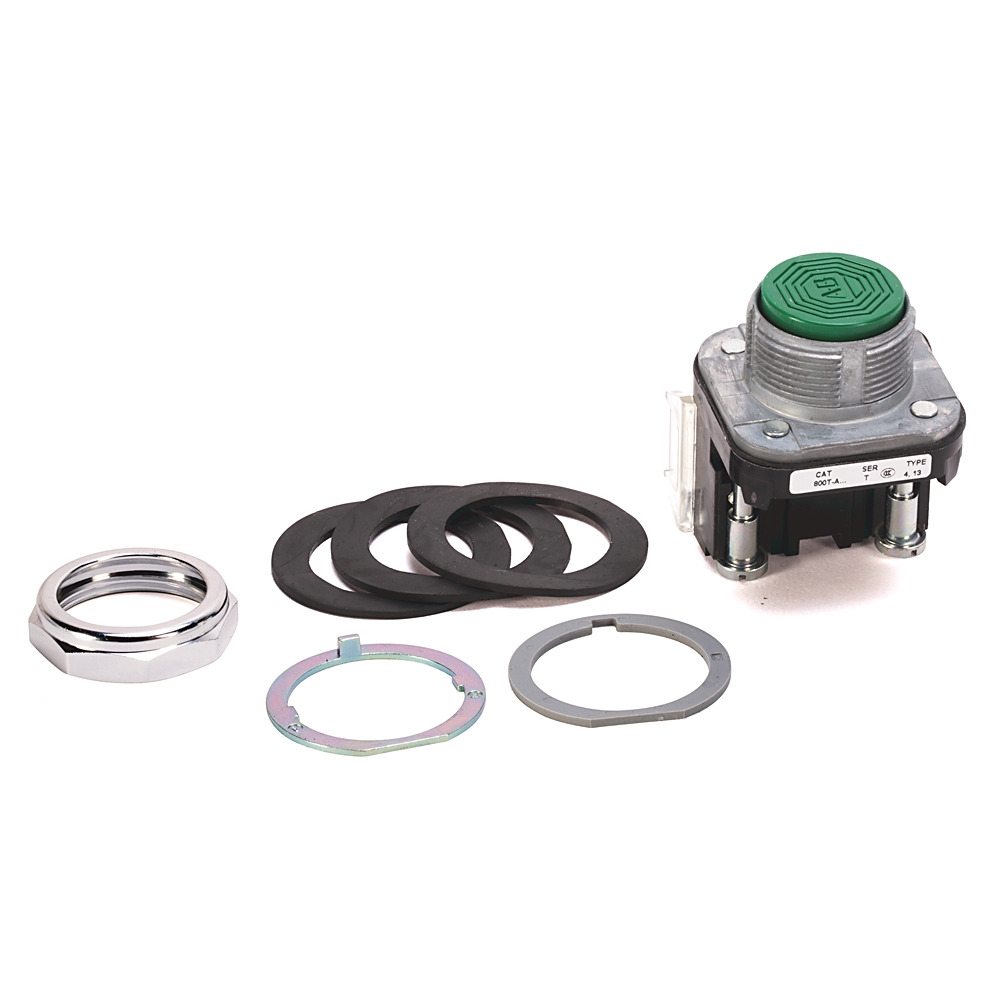

Allen-Bradley Allen-Bradley 30mm Momentary Push Button 800T PB 800T-A2D1
