Allen-Bradley 22mm DeviceNet Station 800F PB 800F-VAW4A3
Allen-Bradley 800F-VAW4A3 - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
The 800F-VAW4A3 from Allen-Bradley is listed under Pushbuttons & Pilot Devices in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 25 G (contact fragility)/100 G (no damage); Vibration: 10 G maximum; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC (A600, Q600) - screw termination; Contact block termination tightening torque: 0.7 to 0.9 Nm; Contact block termination wire range: spring clA termination: #18...14 AWG (0.75...1.5 mm²) one per spring clA, two spring clA per terminal; Contact block thermal current rating: 10 A; Contact block utilization category (AC): AC-15 (A600, Q600): screw termination, AC-15 (A300, Q300): spring clA termination. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Contact block operational voltage, max | 600V AC (A600, Q600) - screw termination |
| Contact block termination tightening torque | 0.7 to 0.9 Nm |
| Contact block termination wire range | spring clA termination: #18...14 AWG (0.75...1.5 mm²) one per spring clA, two spring clA per terminal |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | AC-15 (A600, Q600): screw termination, AC-15 (A300, Q300): spring clA termination |
| Contact block utilization category (DC) | DC 13 to IEC/EN 60947-5-1 and UL 508, 17V @ 5mA minimum |
| Enclosure mounting | Vertical (Selector Switches in a vertical mount enclosure are mounted with a horizontal orientation) |
| Hazardous location rating | false |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| I/O version | No external input/output |
| Lifecycle Status | Active |
| Number of operators | 2 |
| Operating Temperature | -25 °C |
| Operator 1 color | Red |
| Operator 2 color | Green |
| Operator 3 color | None |
| Operator 4 color | None |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
| Operator mounting hole dimension | 22.5 mm |
| Operator type 1 | 40 mm illuminated 2 position push-pull |
| Operator type 2 | Non-illuminated flush button |
| Operator type 3 | None |
| Operator type 4 | None |
| Repair Options Available | No |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Station type | 800F assembled stations with Devicenet |
| Storage Temperature | -40 °C |
| Termination style | Screw |
| Vibration | 10 G maximum |
Frequently Asked Questions
How do I get pricing for 800F-VAW4A3?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800F-VAW4A3?
800F-VAW4A3 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800F-VAW4A3?
Key specifications include Build America, Buy America: No; Contact block electrical design life (cycles, at max. load): 1000000; Contact block operational voltage, max: 600V AC (A600, Q600) - screw termination; Contact block termination tightening torque: 0.7 to 0.9 Nm. The full specification table on this page lists every published attribute for this part.
How quickly can 800F-VAW4A3 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 22mm DeviceNet Station 800F PB 800F-VAL4J7
Allen-Bradley Allen-Bradley 22mm DeviceNet Station 800F PB 800F-VAD4D3
Allen-Bradley Allen-Bradley 22mm DeviceNet Station 800F PB 800F-VAA2K8A
Allen-Bradley Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-PX50

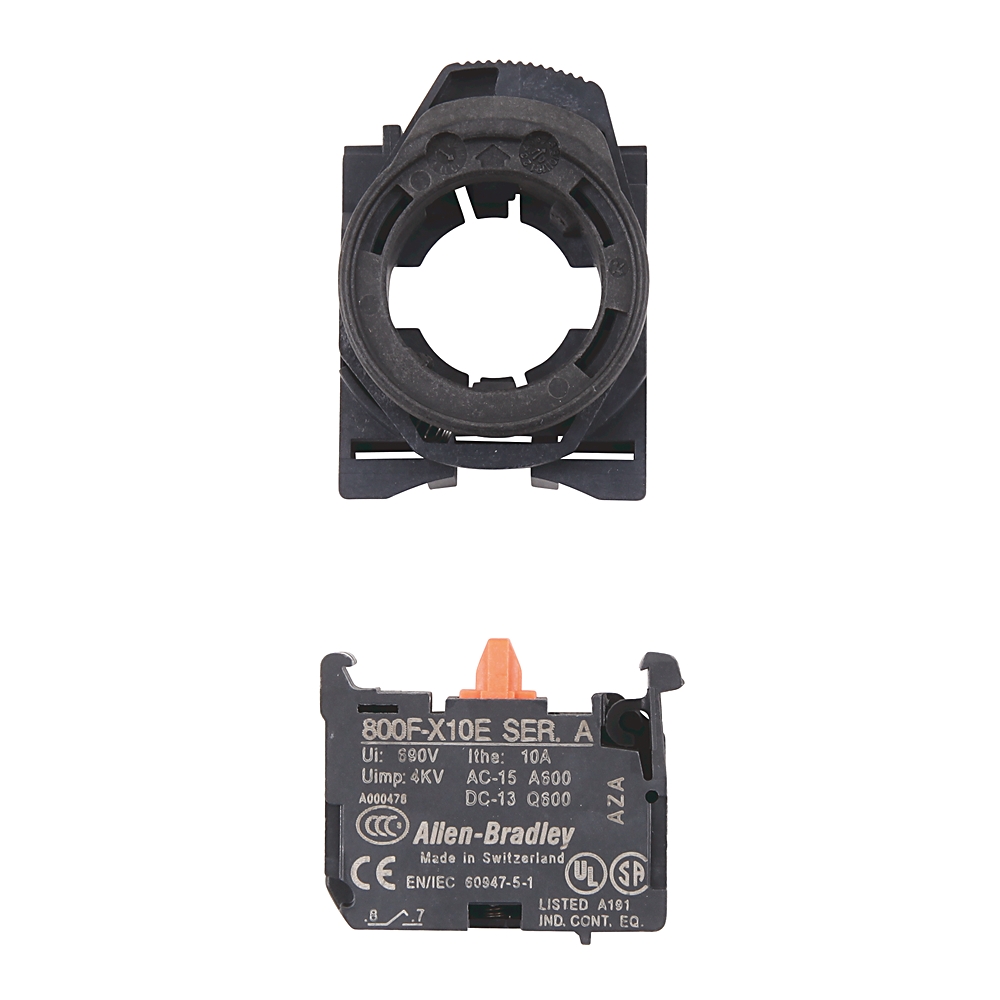

Allen-Bradley Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-PX41
