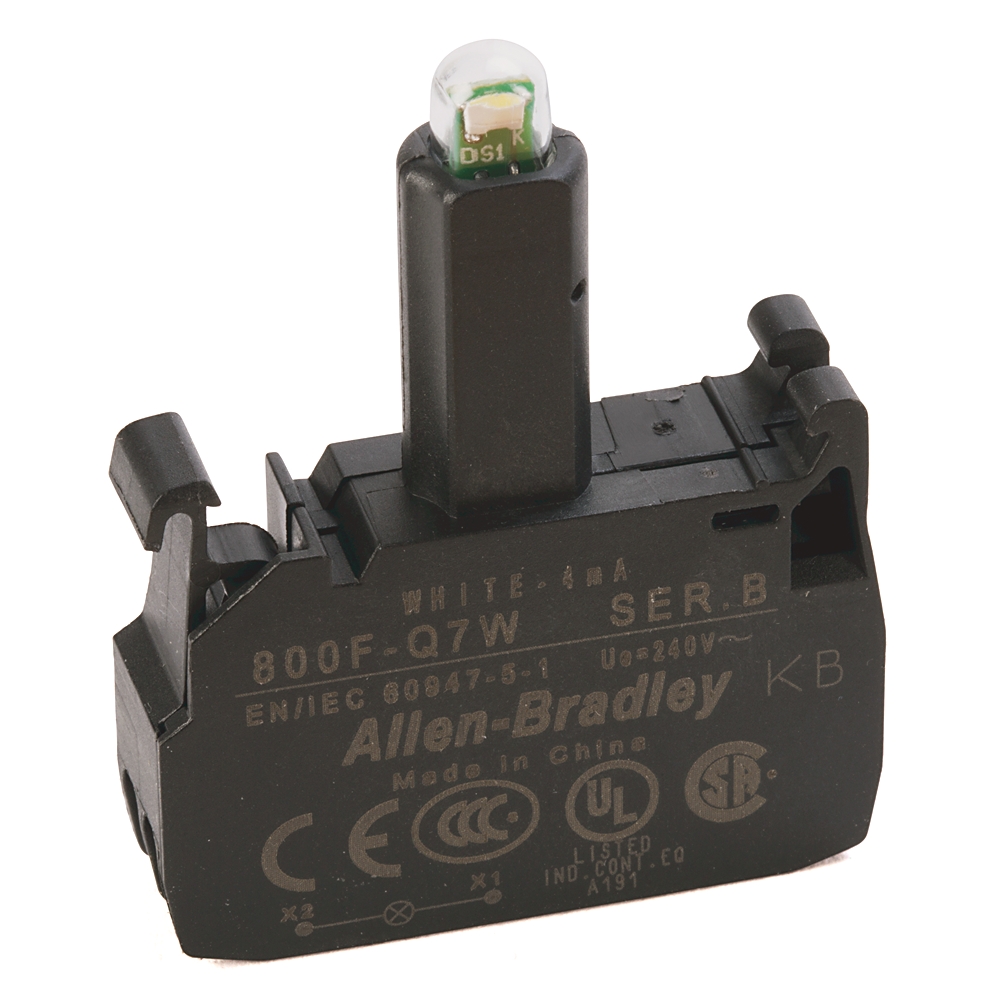

Allen-Bradley 22mm LED Module 800F PB, Pack qty.10 800F-Q7W
Allen-Bradley 800F-Q7W - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
This listing covers the Allen-Bradley 800F-Q7W, a part number in the Pushbuttons & Pilot Devices category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Voltage type for actuating: AC; Shock: 100 g; Vibration: 10 g; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Operator Type: 22 mm LED module; Illumination lamp type: White LED; Illumination module input voltage: 240V AC (LED); Illumination module termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m; Illumination module termination wire range: #18...14 AWG (0.75...1.5 mm²). See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block mounting style | Latch |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | White LED |
| Illumination module input voltage | 240V AC (LED) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | #18...14 AWG (0.75...1.5 mm²) |
| Illumination module type | Spring clA LED |
| Lamp type | LED |
| Latch material | Plastic / metal |
| Lifecycle Status | Active |
| Operating Temperature | -25 °C |
| Operator mounting hole dimension | 22.5 mm |
| Operator Type | 22 mm LED module |
| Repair Options Available | No |
| Shock | 100 g |
| Storage Temperature | -40 °C |
| Vibration | 10 g |
| Voltage type for actuating | AC |
Frequently Asked Questions
How do I get pricing for 800F-Q7W?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800F-Q7W?
800F-Q7W is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800F-Q7W?
Key specifications include Build America, Buy America: No; Contact block mounting style: Latch; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Illumination lamp type: White LED. The full specification table on this page lists every published attribute for this part.
How quickly can 800F-Q7W ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 22mm LED Module 800F PB, Pack qty.10 800F-R3G

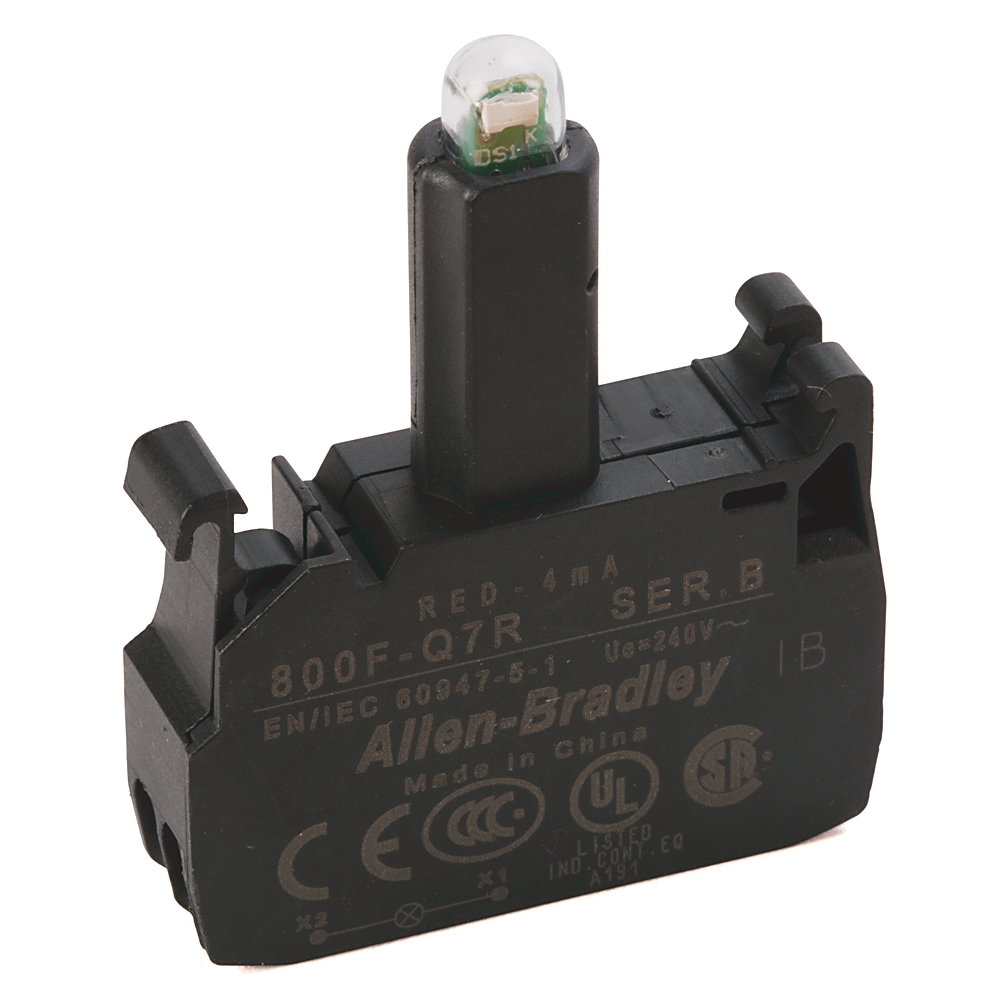

Allen-Bradley Allen-Bradley 22mm LED Module 800F PB, Pack qty.10 800F-Q7R
Allen-Bradley Allen-Bradley 30mm Pilot Light 800H PB 800H-PRTH26C

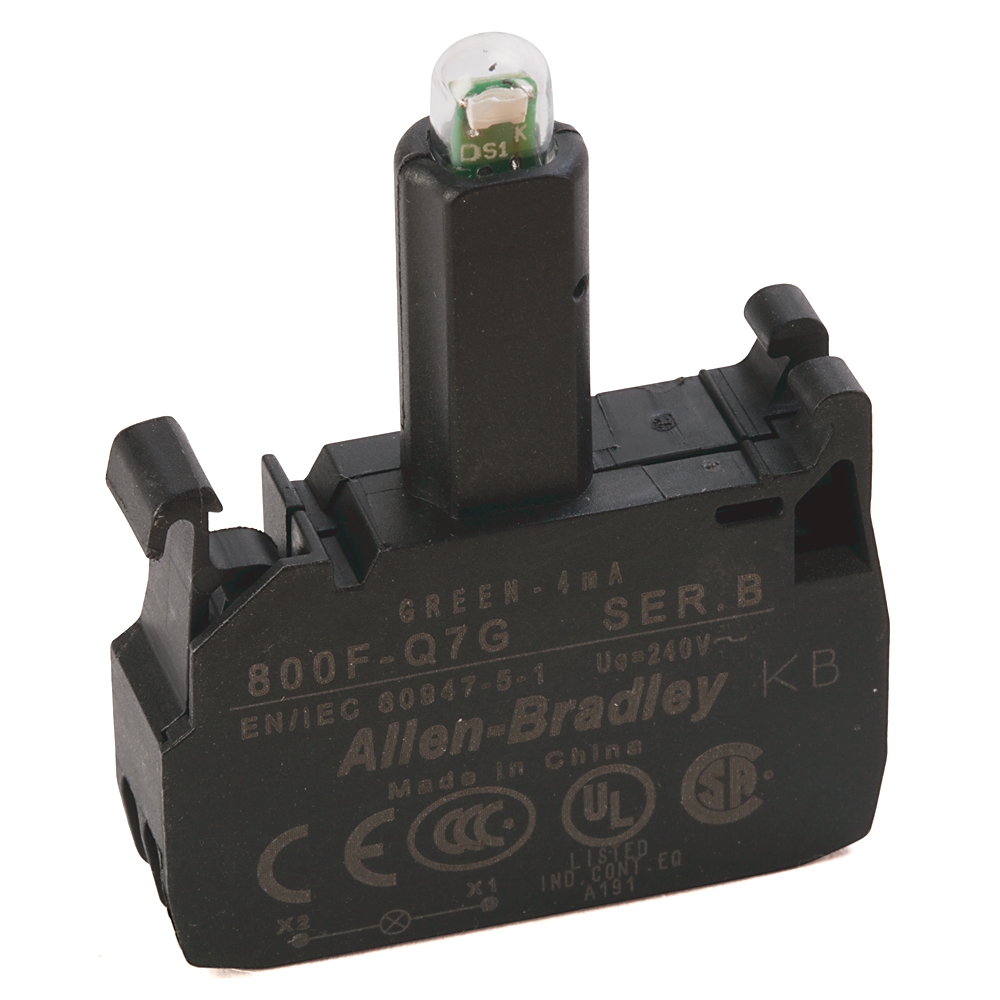

Allen-Bradley Allen-Bradley 22mm LED Module 800F PB, Pack qty.10 800F-Q7G
