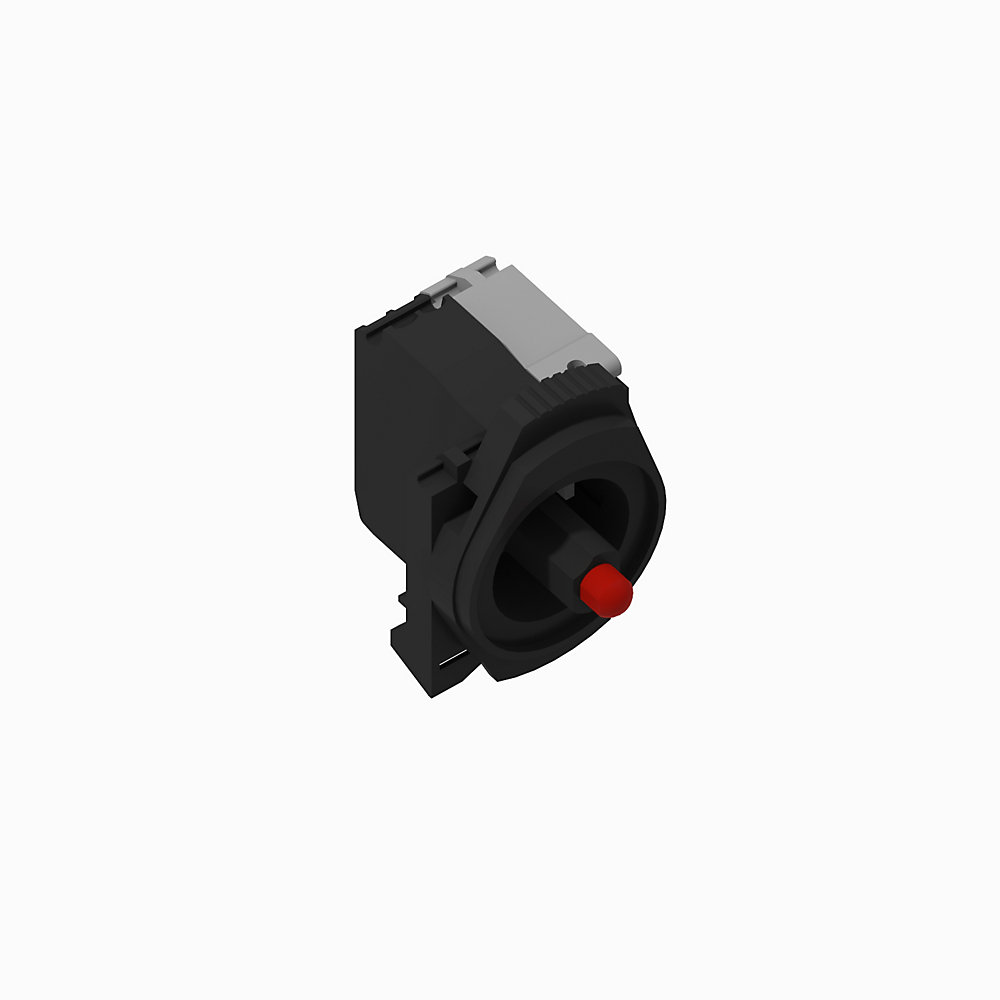

Allen-Bradley 22mm Back of Panel Composite 800F PB 800F-MN5RX01S
Allen-Bradley 800F-MN5RX01S - Pushbuttons & Pilot Devices - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Type: 22mm Back of Panel Composite.
Allen-Bradley 800F-MN5RX01S is a Pushbuttons & Pilot Devices catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Key manufacturer data on file for this item includes Type: 22mm Back of Panel Composite; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Shock: 100 G; Vibration: 10 G; Humidity: ≤95% RH from 25...60 °C (77...140 °F); Type of electric connection: Screw connection; Contact block configuration: 1 NC; Hole diameter: 22.5 mm; Illumination lamp type: Red LED; Illumination module input voltage: 120V AC/DC (incandescent), 120V AC (LED). See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 1 NC |
| Contact block type | Self monitoring |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | Red LED |
| Illumination module input voltage | 120V AC/DC (incandescent), 120V AC (LED) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Illumination module type | LED |
| Latch material | Metal |
| Lifecycle Status | Active |
| Number of contacts as normally closed contact | 1 |
| Operating Temperature | -25 °C |
| Repair Options Available | No |
| Shock | 100 G |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Supply voltage lamp | 120 V |
| Termination style | Screw |
| Type | 22mm Back of Panel Composite |
| Type of electric connection | Screw connection |
| Vibration | 10 G |
Frequently Asked Questions
How do I get pricing for 800F-MN5RX01S?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800F-MN5RX01S?
800F-MN5RX01S is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800F-MN5RX01S?
Key specifications include Build America, Buy America: No; Contact block configuration: 1 NC; Contact block type: Self monitoring; Hole diameter: 22.5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 800F-MN5RX01S ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
