Allen-Bradley Safety IEC Control Relay 700S-EF440EJC
Allen-Bradley 700S-EF440EJC - industrial components - Width: Approximate 110.5 mm mm; Length: Approximate 45 mm ft; Height: Approximate 86 mm mm.
The 700S-EF440EJC from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Width: Approximate 110.5 mm mm and Length: Approximate 45 mm ft.
Key manufacturer data on file for this item includes Height: Approximate 86 mm mm; Ambient temperature: Storage: -60...80 °C ops at nominal current: -40...70 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Rated control supply voltage at AC 50 Hz: 24 V; Rated control supply voltage at AC 60 Hz: 24 V; Voltage type for actuating: AC/DC; Altitude: 3000 m; Rated insulation voltage (Ui): 690V per IEC; Rated control supply voltage at DC: 20 V; Rated frequency: 50/60 Hz. The complete technical table is shown in the Specifications tab on this page.
| AC Coil Voltage | 6 A @ 24-48V, AC-15 |
|---|---|
| Altitude | 3000 m |
| Ambient temperature | Storage: -60...80 °C ops at nominal current: -40...70 °C |
| Build America, Buy America | No |
| Coil voltage pickup | 85...110% AC coils, 80...110% DC coils |
| Connection type | Screw connection |
| Contact Form | 8 poles |
| Contact material | Silver |
| Dielectric withstand | 2.5 kV |
| Electric service life | 1.5 mon (AC-15 240V @ 3A) |
| Energy-efficient coil, hold-in | 1.7VA/1.7 W @ 24-60V AC, 20-60V DC |
| Energy-efficient coil, pick-up | 16VA/12...16 W @ 24-60V AC, 20-60V DC |
| Features | Mechanically linked contacts, Timer and latch ops, Switch up to 690V AC and DC |
| Height | Approximate 86 mm mm |
| Length | Approximate 45 mm ft |
| Lifecycle Status | Active |
| Load | 12V @ 3mA (Silver), minimum |
| Mechanical life | 20 mil |
| Mounting method | DIN-rail/screw |
| Number of contact as normally closed | 4 |
| Number of contact as normally open | 4 |
| Operating limits, dropout | (≤0.60) x Us @ DC control |
| Operating limits, pick-up | (0.85...1.1) x Us @ 50/60 Hz |
| Operating time, closing delay | 40 ms |
| Operating time, opening delay | 11 to 95 ms |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Rated control supply voltage at DC | 20 V |
| Rated frequency | 50/60 Hz |
| Rated impulse strength (Uimp) | 6 kV |
| Rated insulation voltage (Ui) | 690V per IEC |
| Rated thermal current (Ith) | Main contacts: 16 A @ ≤40 °C, AC-12 |
| Rated voltage (Ue) | 24, 48, 120, 230, 400, 500, 690V AC |
| Repair Options Available | No |
| Shock resistance | IEC 60068-2: half sinusoidal shock 11 ms, 25G (in 3 directions) |
| Suitable for manual operation | false |
| Type of protection | IP2X (IEC 60529 and DIN 40050), in connected state |
| Vibration resistance | IEC 60068-2: static >2 G, in normal position no malfunction <5 G |
| Voltage type for actuating | AC/DC |
| Width | Approximate 110.5 mm mm |
Frequently Asked Questions
How do I get pricing for 700S-EF440EJC?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 700S-EF440EJC?
700S-EF440EJC is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 700S-EF440EJC?
Key specifications include AC Coil Voltage: 6 A @ 24-48V, AC-15; Altitude: 3000 m; Ambient temperature: Storage: -60...80 °C ops at nominal current: -40...70 °C; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 700S-EF440EJC ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

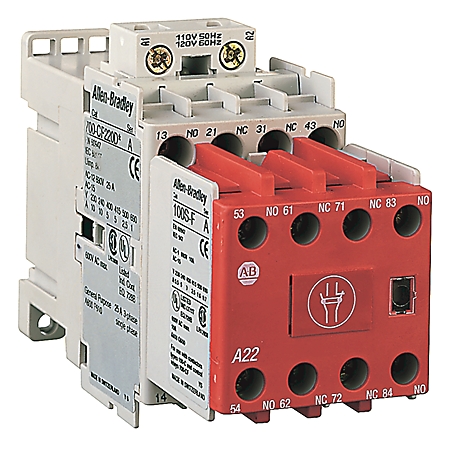

Allen-Bradley Allen-Bradley Safety Industrial Relay 700S-CF440CC

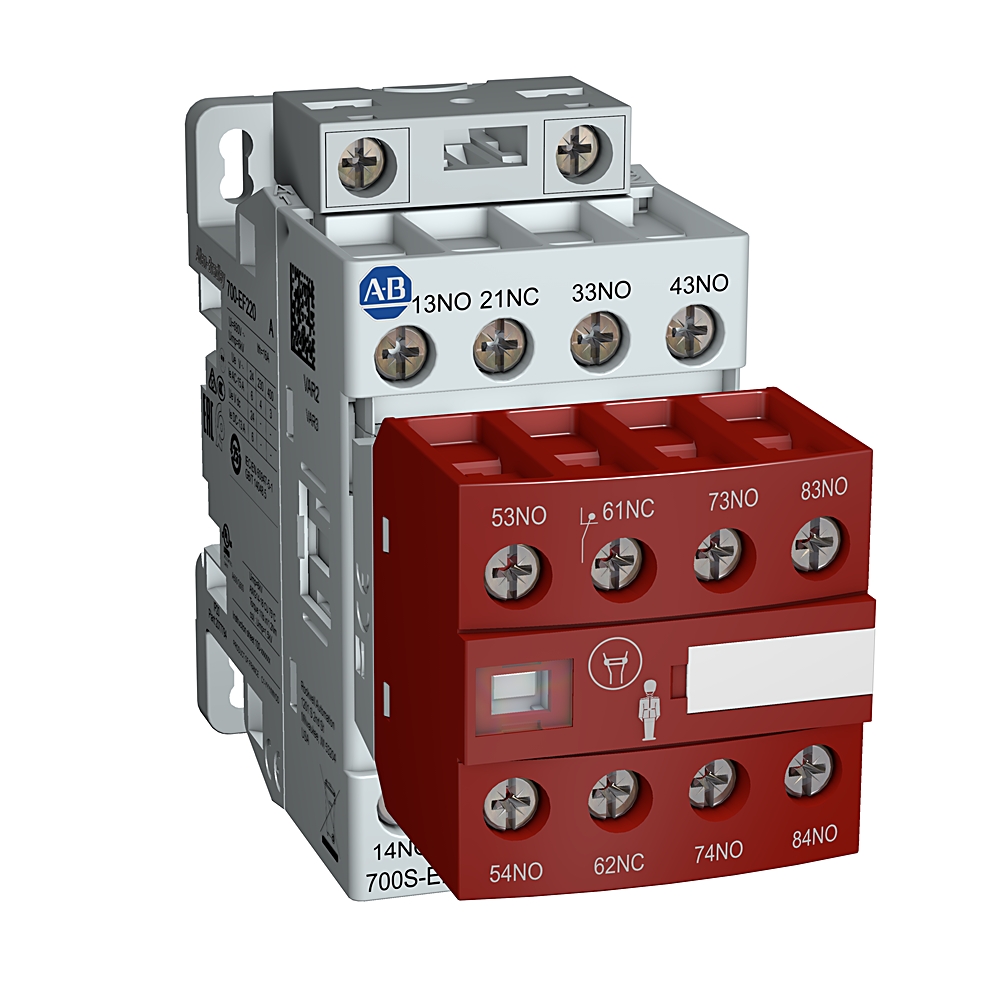

Allen-Bradley Allen-Bradley Safety IEC Control Relay 700S-EF440EQC
Allen-Bradley Allen-Bradley Safety IEC Control Relay 700S-EF440KDC

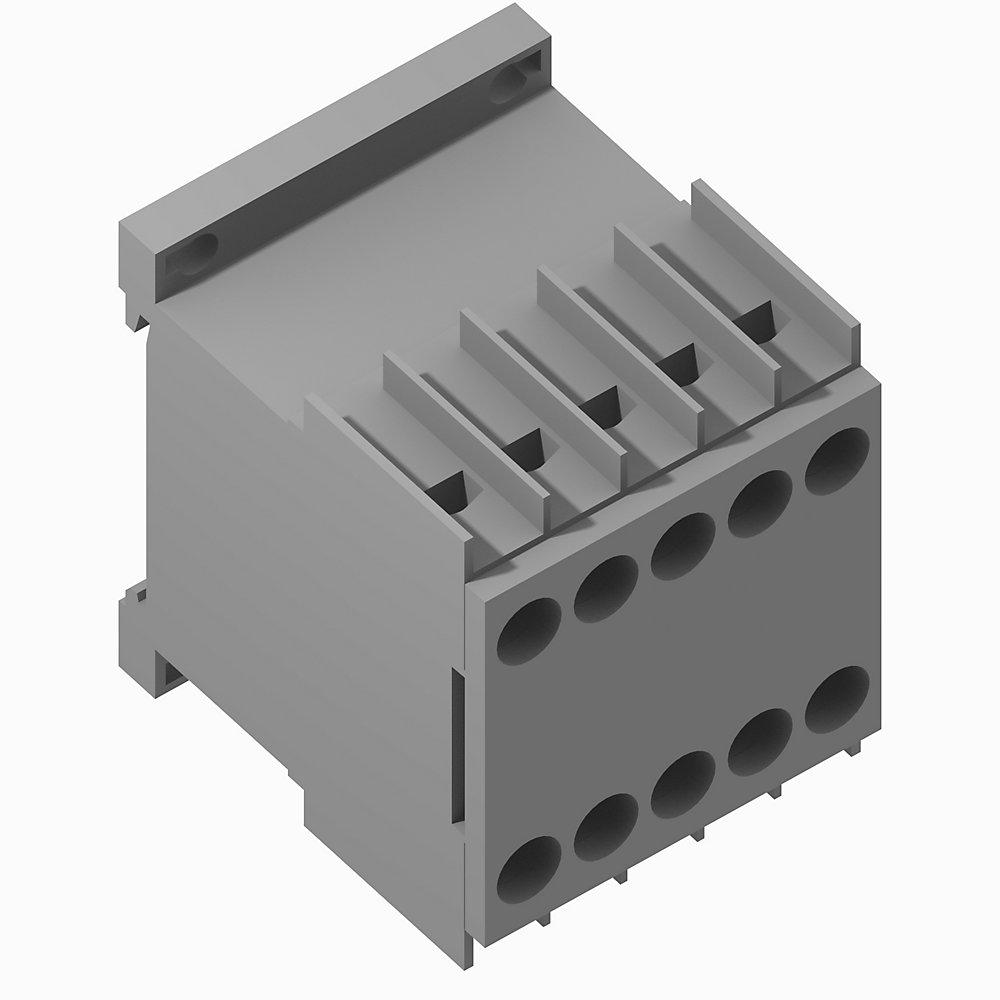

Allen-Bradley Allen-Bradley IEC Miniature Control Relay 700-KL22Z-ZD
