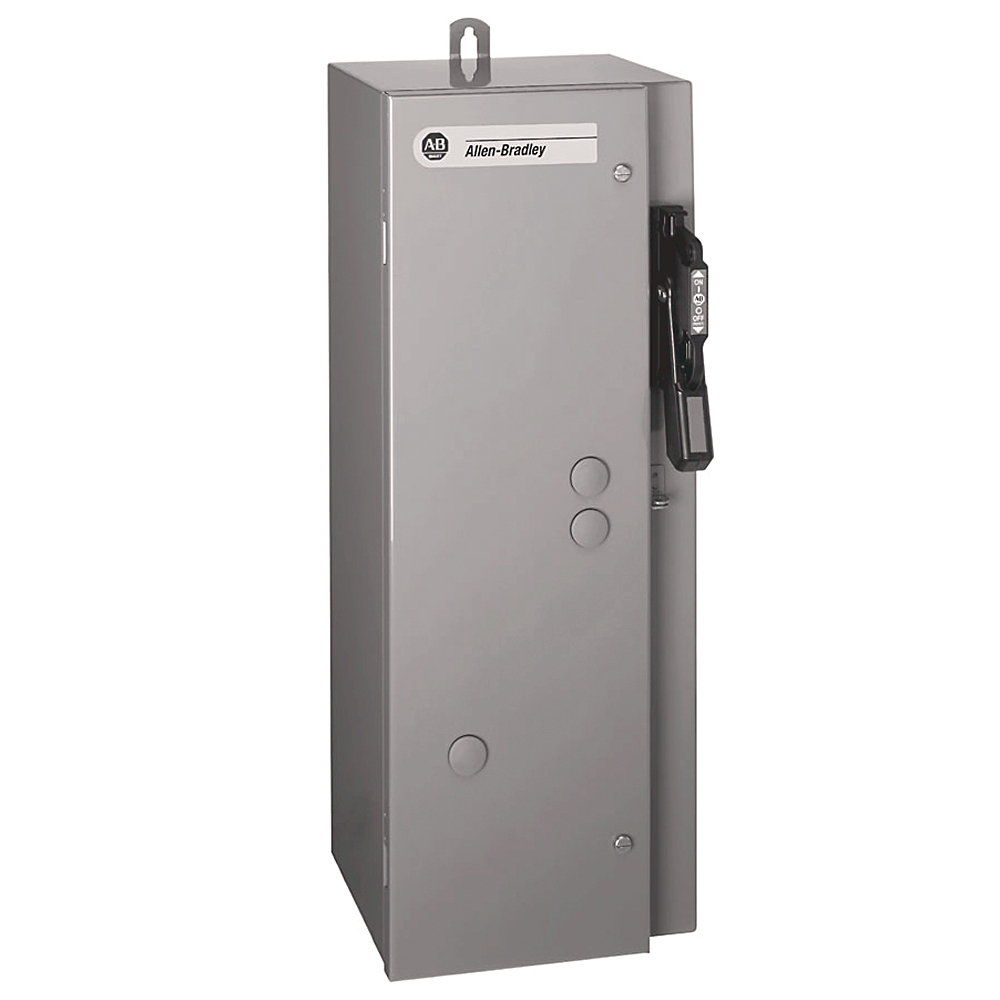

Allen-Bradley NEMA Size 1 COMB Starter Circuit Breaker 513-BUB-A2E-6P-38-137
Allen-Bradley 513-BUB-A2E-6P-38-137 - industrial components - Width: 13.26 mm mm; Height: 15.66 mm mm; Horsepower: 3 Hp HP.
This listing covers the Allen-Bradley 513-BUB-A2E-6P-38-137, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 13.26 mm mm and Height: 15.66 mm mm.
Published specifications for this part include Horsepower: 3 Hp HP; Operating Temperature: -25 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: NEMA 3R/7/9 unilock; Sub Brand: NEMA; Degree of protection (NEMA): 3R; Depth: 15.39 mm; External reset possible: true; Overload relay: E1 plus, manual reset, Class 20, full load current adjustment range 1.6...5.0 A; Overload release current setting: 1.6 A. The complete technical table is shown in the Specifications tab on this page.
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver |
| Available short circuit amperes RMS symmetrical | 65000 A |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 288 A |
| Circuit-Breaker Type | Instantaneous trip, standard |
| Coil operating limits | 85 to 110 % |
| Continuous current rating | 27 A |
| Control Voltage | 120V 60 Hz |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 3R |
| Depth | 15.39 mm |
| Enclosure Type | NEMA 3R/7/9 unilock |
| External reset possible | true |
| Factory installed modifications | Transformer with 2 primary & 1 sary fuse |
| Heat dissipation | 5.9 W |
| Height | 15.66 mm mm |
| Horsepower | 3 Hp HP |
| Lifecycle Status | Active |
| Load voltage | 460V |
| Material housing | Aluminium |
| Mechanical life operations | 1.0E7 |
| NEMA size | Size 1 |
| Number of auxiliary contacts, max | 8 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 14 ms |
| Operating time, pick-up | 22 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Overload relay | E1 plus, manual reset, Class 20, full load current adjustment range 1.6...5.0 A |
| Overload release current setting | 1.6 A |
| Power contact material | Silver alloy |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Release class | CLASS 20 |
| Repair Options Available | No |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Sub Brand | NEMA |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Width | 13.26 mm mm |
| Wire size | For power terminals: 14...8 AWG |
| With fuse | false |
| With short-circuit release | true |
| With transformer | true |
Frequently Asked Questions
How do I get pricing for 513-BUB-A2E-6P-38-137?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 513-BUB-A2E-6P-38-137?
513-BUB-A2E-6P-38-137 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 513-BUB-A2E-6P-38-137?
Key specifications include Altitude: 10000 ft before derating; Auxiliary contact material: Silver; Available short circuit amperes RMS symmetrical: 65000 A; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 513-BUB-A2E-6P-38-137 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
