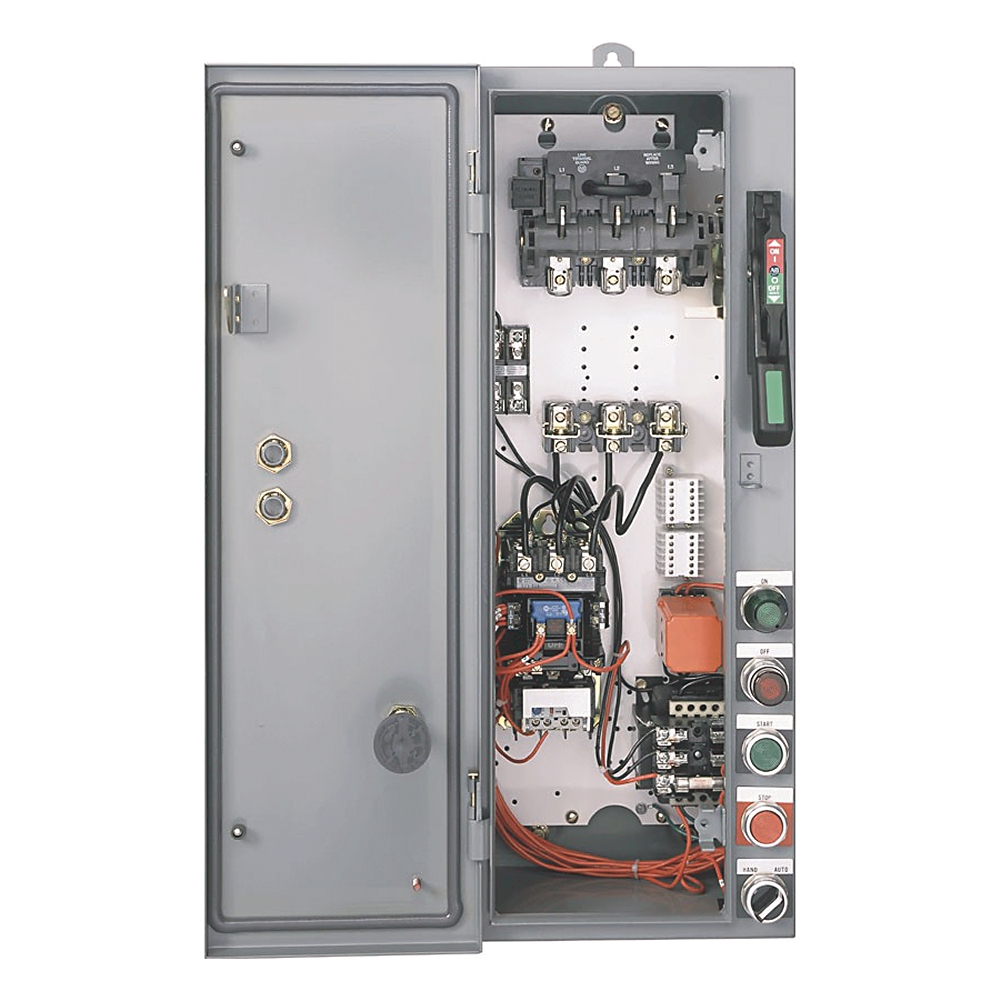

Allen-Bradley NEMA Combination Starter Disconnect 512-BACJ-A2G-3-24J
Allen-Bradley 512-BACJ-A2G-3-24J - NEMA Motor Starters - Width: 10.5 mm mm; Height: 27.5 mm mm; Weight: 40 lb.
The 512-BACJ-A2G-3-24J from Allen-Bradley is listed under NEMA Motor Starters in our catalog. The manufacturer's published data for this part number specifies Width: 10.5 mm mm and Height: 27.5 mm mm.
Published specifications for this part include Weight: 40 lb; Operating Temperature: -25 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: NEMA 1 general purpose; Degree of protection (NEMA): 1; Depth: 8.25 mm; External reset possible: true; Factory installed models: HAND-OFF-AUTO selector switch; Hp rating: 10 Hp; Overload relay: E1 plus, manual reset, Class 20, full load current adjustment range 5.7...18 A. See the Specifications tab on this page for the full technical table.
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver |
| Available short circuit amperes RMS symmetrical | 100000 A |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 288 A |
| Coil operating limits | 85...110% |
| Continuous current | 27 A |
| Control Voltage | 24V 60 Hz |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 1 |
| Depth | 8.25 mm |
| Disconnect Type | Fusible |
| Enclosure Type | NEMA 1 general purpose |
| External reset possible | true |
| Factory installed models | HAND-OFF-AUTO selector switch |
| Fuse clips | 30 A Class J |
| Heat dissipation | 5.9 W |
| Height | 27.5 mm mm |
| Hp rating | 10 Hp |
| Lifecycle Status | Active |
| Load voltage | 575V |
| Material housing | Steel |
| Mechanical life operations | 1.0E7 |
| NEMA size | Size 1 |
| Number of auxiliary contacts, max | 8 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 14 ms |
| Operating time, pick-up | 22 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Overload relay | E1 plus, manual reset, Class 20, full load current adjustment range 5.7...18 A |
| Overload release current setting | 5.7 A |
| Power contact material | Silver Alloy |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Release class | CLASS 20 |
| Repair Options Available | No |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Weight | 40 lb |
| Width | 10.5 mm mm |
| Wire size | For power terminals: 14...8 AWG |
| With fuse | true |
| With short-circuit release | true |
| With transformer | false |
