Allen-Bradley NEMA Combination Starter Disconnect 512-AFBJ-3-4RG-6P-24R
Allen-Bradley 512-AFBJ-3-4RG-6P-24R - NEMA Motor Starters - Width: 10.5 mm mm; Height: 27.5 mm mm; Weight: 40 lb.
The 512-AFBJ-3-4RG-6P-24R from Allen-Bradley is listed under NEMA Motor Starters in our catalog. The manufacturer's published data for this part number specifies Width: 10.5 mm mm and Height: 27.5 mm mm.
Key manufacturer data on file for this item includes Weight: 40 lb; Operating Temperature: -25 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: NEMA 3R/4/12 non-metal handle; Sub Brand: NEMA; Degree of protection (NEMA): 12; Depth: 8.25 mm; External reset possible: true; Factory installed models: Transformer with 2 primary & 1 sary fuse; Hp rating: 5 Hp. See the Specifications tab on this page for the full technical table.
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver |
| Available short circuit amperes RMS symmetrical | 100000 A |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 140 A |
| Coil operating limits | 85 to 110 % |
| Continuous current rating | 18 A |
| Control Voltage | 24V 60 Hz |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 12 |
| Depth | 8.25 mm |
| Disconnect Type | Fusible |
| Enclosure Type | NEMA 3R/4/12 non-metal handle |
| External reset possible | true |
| Factory installed models | Transformer with 2 primary & 1 sary fuse |
| Fuse clips | 30 A Class R |
| Heat dissipation | 5.9 W |
| Height | 27.5 mm mm |
| Hp rating | 5 Hp |
| Lifecycle Status | Active |
| Load voltage | 460V |
| Material housing | Steel |
| Mechanical life operations | 1.0E7 |
| NEMA size | Size 0 |
| Number of auxiliary contacts, max | 8 |
| Number of indicator lights | 2 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 16 ms |
| Operating time, pick-up | 21 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Overload relay | Eutectic alloy overload relay |
| Power contact material | Silver Alloy |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Repair Options Available | No |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Sub Brand | NEMA |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Weight | 40 lb |
| Width | 10.5 mm mm |
| Wire size | For power terminals: 14...10 AWG |
| With fuse | true |
| With short-circuit release | true |
| With transformer | true |
Frequently Asked Questions
How do I get pricing for 512-AFBJ-3-4RG-6P-24R?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 512-AFBJ-3-4RG-6P-24R?
512-AFBJ-3-4RG-6P-24R is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 512-AFBJ-3-4RG-6P-24R?
Key specifications include Altitude: 10000 ft before derating; Auxiliary contact material: Silver; Available short circuit amperes RMS symmetrical: 100000 A; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 512-AFBJ-3-4RG-6P-24R ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

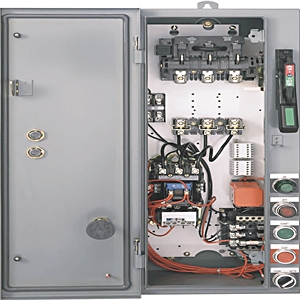

Allen-Bradley Allen-Bradley NEMA Combination Starter Disconnect 512-AFBJ-3-4GR-6P-24R-901
Allen-Bradley Allen-Bradley NEMA Combination Starter Disconnect 512-AFBJ-A2E-3-6P-24R

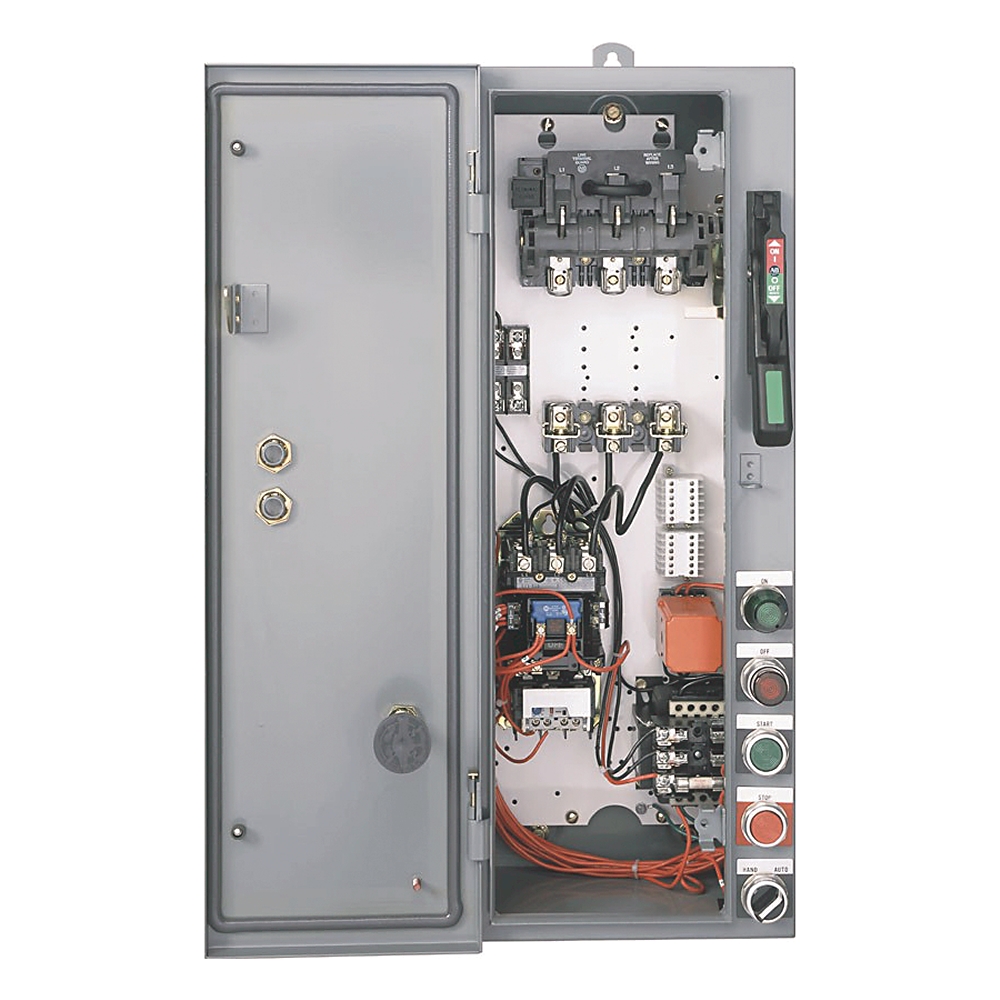

Allen-Bradley Allen-Bradley NEMA Combination Starter Disconnect 512-AFB-XXX-3E-6XP-24-901
