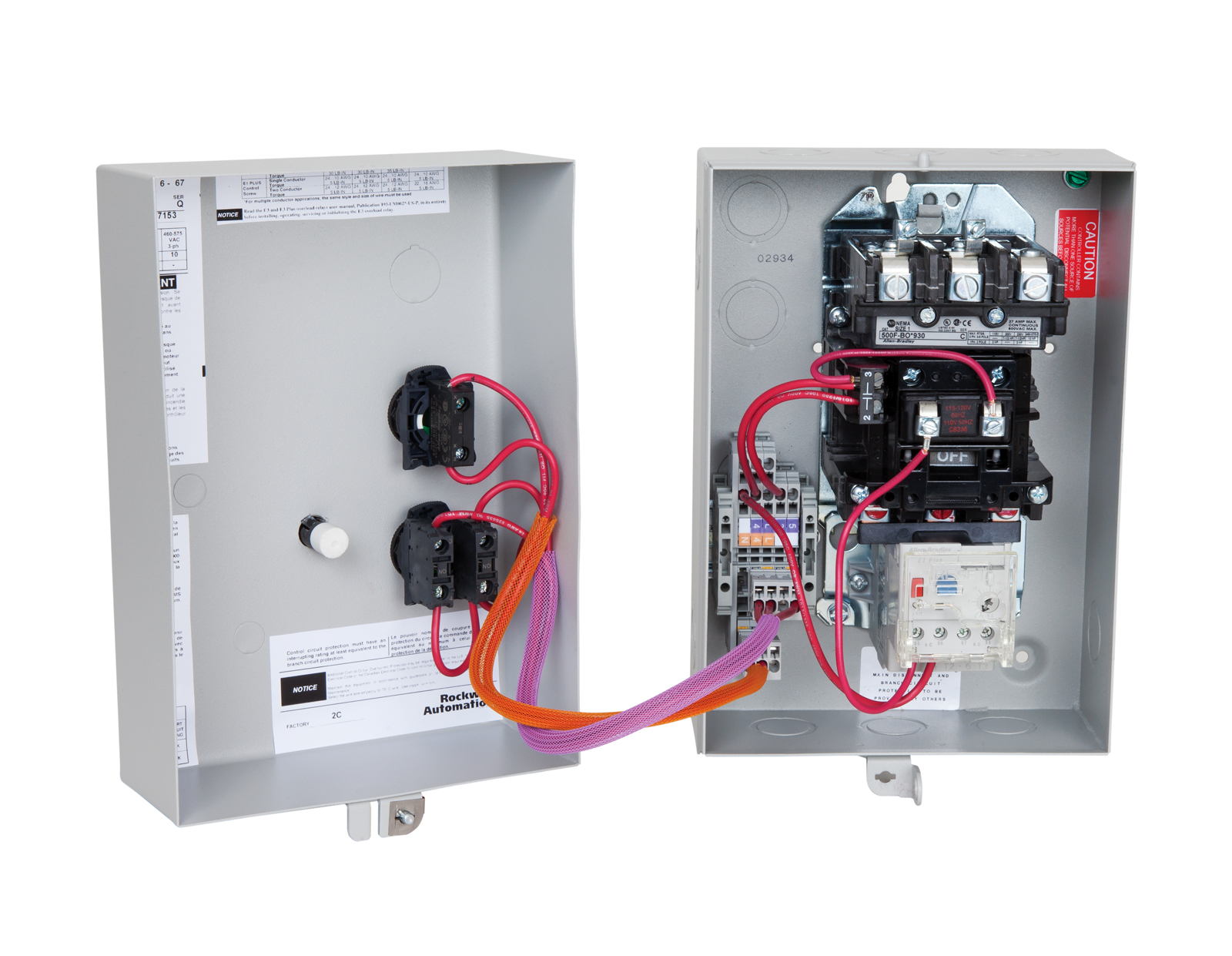

Allen-Bradley NEMA Size 1 Non-Reversing Starter 509-BHB-3E-6P-90-136
Allen-Bradley 509-BHB-3E-6P-90-136 - NEMA Motor Starters - Width: 12.75 mm mm; Height: 24.75 mm mm; Operating Temperature: -25 °C.
Allen-Bradley 509-BHB-3E-6P-90-136 is a NEMA Motor Starters catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Width: 12.75 mm mm and Height: 24.75 mm mm.
Key manufacturer data on file for this item includes Operating Temperature: -25 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: NEMA 3R/7/9 Rainproof Bolted,NEMA 3R/7/9 Bolted; Sub Brand: NEMA; Degree of protection (NEMA): 3R; Depth: 10.78 mm; External reset possible: true; Factory installed models: Transformer with 2 primary & 1 sary fuse; Hp rating: 10 Hp; Overload relay: Eutectic overload. The complete technical table is shown in the Specifications tab on this page.
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 288 A |
| Coil operating limits | 85...110% |
| Continuous current | 27 A |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 3R |
| Depth | 10.78 mm |
| Enclosure Type | NEMA 3R/7/9 Rainproof Bolted,NEMA 3R/7/9 Bolted |
| Enclosure type rating | NEMA 3R/7/9 bolted |
| External reset possible | true |
| Factory installed models | Transformer with 2 primary & 1 sary fuse |
| Heat dissipation | 5.9 W |
| Height | 24.75 mm mm |
| Hp rating | 10 Hp |
| Lifecycle Status | Active |
| Load voltage | 460V |
| Material housing | Aluminium |
| Mechanical life operations | 1.0E7 |
| NEMA size | NEMA 1 |
| Number of auxiliary contacts, max | 8 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 14 ms |
| Operating time, pick-up | 22 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Overload relay | Eutectic overload |
| Power contact material | Silver Alloy |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Repair Options Available | No |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Service limit current rating | 32 A |
| Sub Brand | NEMA |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Width | 12.75 mm mm |
| Wire size | For power terminals: 14...8 AWG |
| With fuse | false |
| With transformer | true |
