Allen-Bradley NEMA Size 1 Slimline NEMA Rvsg COMB 507X-BABD-41
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver Alloy |
| Available short circuit amperes RMS symmetrical | 65000 A |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 288 A |
| Circuit-Breaker Type | Instantaneous trip, standard |
| Coil operating limits | 85...110% |
| Continuous current | 27 A |
| Control Voltage | 120V 60 Hz |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 1 |
| Depth | 8.25 mm |
| Enclosure Type | NEMA 1 general purpose |
| External reset possible | true |
| Heat dissipation | 5.9 W |
| Height | 27.5 mm mm |
| Hp rating | 10 Hp |
| Lifecycle Status | Active |
| Load voltage | 460V |
| Material housing | Steel |
| Mechanical life operations | 1.0E7 |
| NEMA size | Size 1 |
| Number of auxiliary contacts, max | 8 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 14 ms |
| Operating time, pick-up | 22 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Overload relay | Eutectic alloy overload relay |
| Power contact material | Silver Alloy |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Repair Options Available | No |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Reversing starter |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Weight | 40 lb |
| Width | 10.5 mm mm |
| Wire size | For power terminals: 14...8 AWG |
| With fuse | false |
| With short-circuit release | true |
| With transformer | false |
Frequently Asked Questions
How do I get pricing for 507X-BABD-41?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 507X-BABD-41?
507X-BABD-41 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 507X-BABD-41?
Key specifications include Altitude: 10000 ft before derating; Auxiliary contact material: Silver Alloy; Available short circuit amperes RMS symmetrical: 65000 A; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 507X-BABD-41 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley NEMA Size 4 Rvsg Combination Ckt-bkr 507-EHB-6XGP-49
Allen-Bradley Allen-Bradley NEMA Size 1 Slimline NEMA Rvsg COMB 507X-BDBD-38-989
Allen-Bradley Allen-Bradley NEMA Size 1 Slimline NEMA Rvsg COMB 507X-BFBD-A2G-40-988

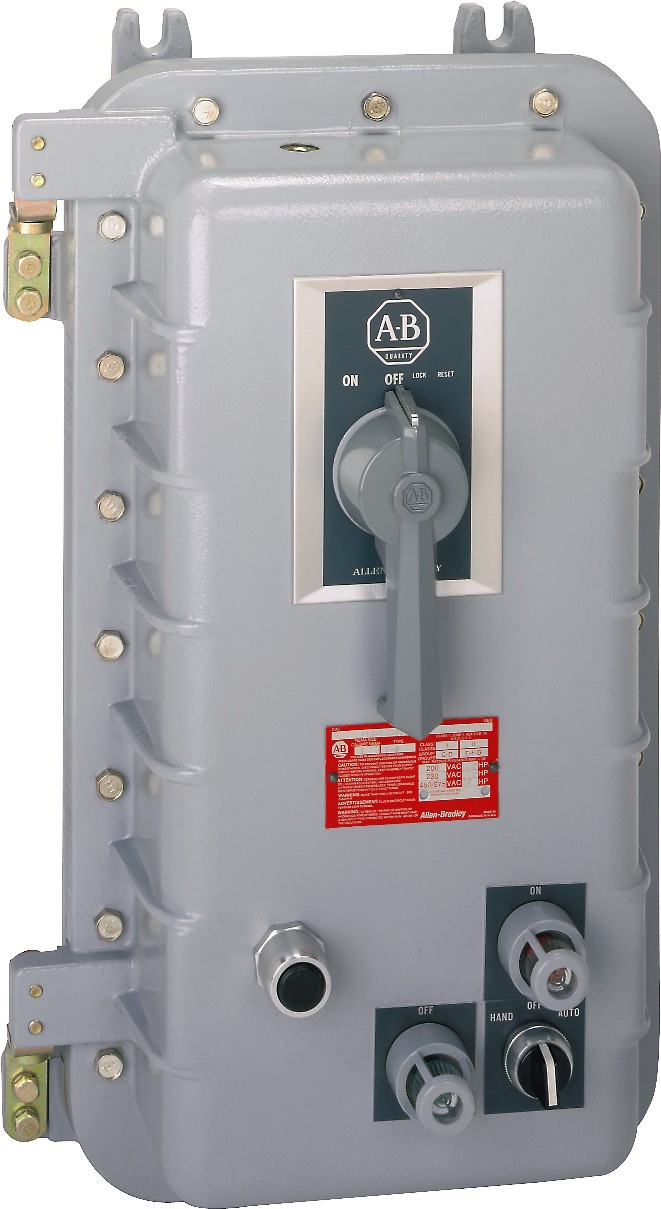

Allen-Bradley Allen-Bradley NEMA Size 3 Rvsg Combination Ckt-bkr 507-DHB-6P-47
