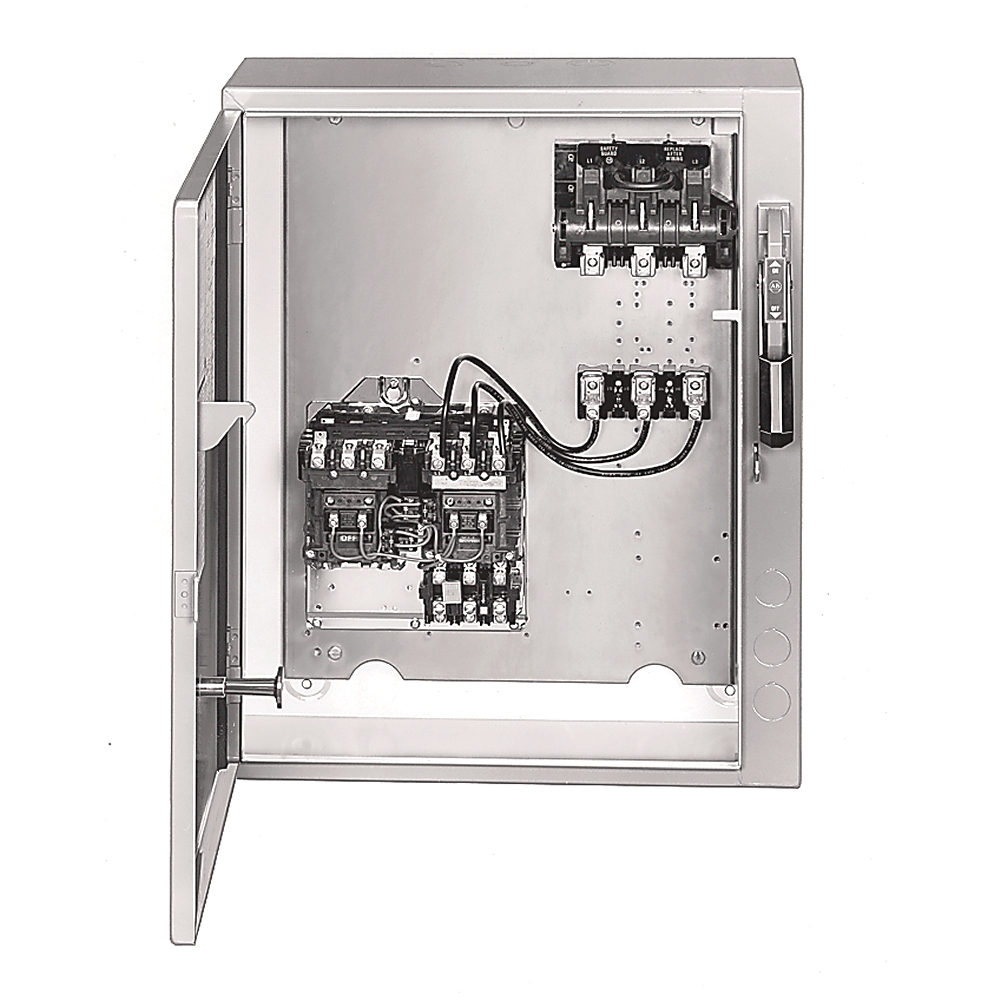

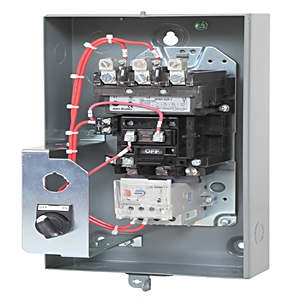

Allen-Bradley NEMA Size 0 Rvsg Combination Discon 506-AACD-A2E-24R
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver Alloy |
| Available short circuit amperes RMS symmetrical | 100000 A |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 140 A |
| Coil operating limits | 85...110% |
| Continuous current | 18 A |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 1 |
| Depth | 9.88 mm |
| Enclosure Type | NEMA 1 general purpose |
| External reset possible | true |
| Fuse clips | 30 A Class R |
| Heat dissipation | 5.9 W |
| Height | 30 mm mm |
| Hp rating | 5 Hp |
| Lifecycle Status | Active |
| Load voltage | 575V |
| Material housing | Steel |
| Mechanical life operations | 1.0E7 |
| NEMA size | Size 0 |
| Number of auxiliary contacts, max | 8 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 16 ms |
| Operating time, pick-up | 21 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Overload relay | Electronic, manual reset, Class 20, full load current adjustment range 1.0...5.0 A |
| Overload release current setting | 1 A |
| Power contact material | Silver Alloy |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Release class | CLASS 20 |
| Repair Options Available | No |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Reversing starter |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Weight | 90 lb |
| Width | 20.5 mm mm |
| Wire size | For power terminals: 14...10 AWG |
| With fuse | true |
| With short-circuit release | true |
| With transformer | false |
