Allen-Bradley Size 0 RVSG Starter 505-AJXWD-105-1
Allen-Bradley 505-AJXWD-105-1 - NEMA Motor Starters - Width: 14 mm mm; Height: 18 mm mm; Operating Temperature: -25 °C.
Allen-Bradley 505-AJXWD-105-1 is a NEMA Motor Starters catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Width: 14 mm mm and Height: 18 mm mm.
The specification set recorded for this part number covers Operating Temperature: -25 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: NEMA 3R/12 painted metal; Degree of protection (NEMA): 12; Depth: 6.45 mm; External reset possible: true; Factory installed models: START-STOP push button; Hp rating: 2Hp @ 230V load voltage, 1-phase; Rated control supply voltage at AC 50 Hz: 115 V; Rated control supply voltage at AC 60 Hz: 115 V. See the Specifications tab on this page for the full technical table.
| Altitude | 10000 ft before derating |
|---|---|
| Auxiliary contact material | Silver |
| Build America, Buy America | No |
| Circuit closing inrush current peak including offset, max | 140 A |
| Coil operating limits | 85 to 110 % |
| Continuous current rating | 18 A |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Corrosion-resistance | All metal parts are treated for corrosion-resistance |
| Degree of protection (NEMA) | 12 |
| Depth | 6.45 mm |
| Enclosure Type | NEMA 3R/12 painted metal |
| External reset possible | true |
| Factory installed models | START-STOP push button |
| Heat dissipation | 5.9 W |
| Height | 18 mm mm |
| Hp rating | 2Hp @ 230V load voltage, 1-phase |
| Lifecycle Status | Active |
| Load voltage | 115 to 230V |
| Material housing | Steel |
| Mechanical life operations | 1.0E7 |
| Motor Type | 4 pole, 4 lead split phase (break all lines) |
| NEMA size | Size 0 |
| Number of auxiliary contacts, max | 8 |
| Operating position | Vertical |
| Operating Temperature | -25 °C |
| Operating time, drop-out | 16 ms |
| Operating time, pick-up | 21 ms |
| Operating volt amperes burden | Sealed: 29VA, 60 Hz coils |
| Power contact material | Silver alloy |
| Rated control supply voltage at AC 50 Hz | 115 V |
| Rated control supply voltage at AC 60 Hz | 115 V |
| Release class | CLASS 30 |
| Repair Options Available | No |
| Required torque on power terminal wire clamps and pressure connectors or lugs | 20 in-lb |
| Service limit current rating | 21 A |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Reversing starter |
| Type of power terminal | Saddle or wire clA |
| Voltage type for actuating | AC |
| Width | 14 mm mm |
| Wire size | For power terminals: 14...10 AWG |
| With fuse | false |
| With transformer | false |
Frequently Asked Questions
How do I get pricing for 505-AJXWD-105-1?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 505-AJXWD-105-1?
505-AJXWD-105-1 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 505-AJXWD-105-1?
Key specifications include Altitude: 10000 ft before derating; Auxiliary contact material: Silver; Build America, Buy America: No; Circuit closing inrush current peak including offset, max: 140 A. The full specification table on this page lists every published attribute for this part.
How quickly can 505-AJXWD-105-1 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Size 0 RVSG Starter 505-AJB-6XGPC-901
Allen-Bradley Allen-Bradley Size 1 RVSG Starter 505-BHB-3-6GP

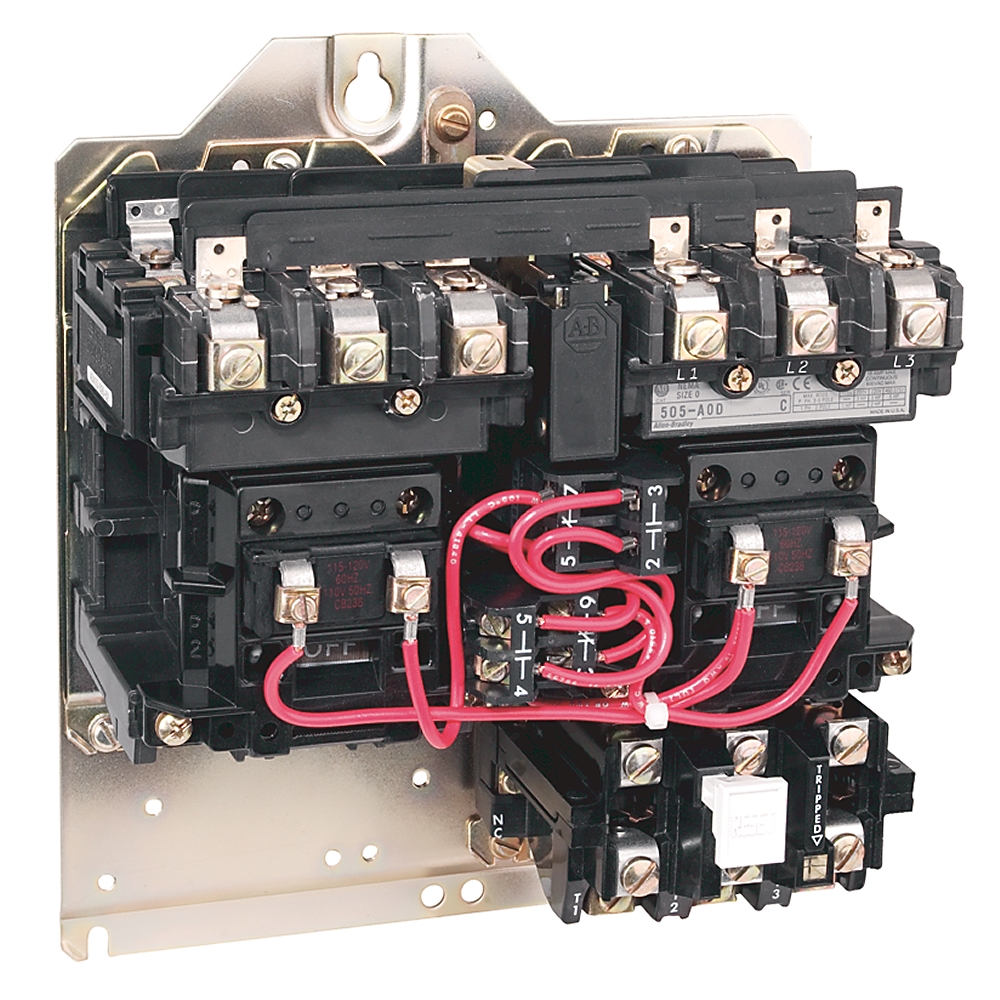

Allen-Bradley Allen-Bradley Size 0 RVSG Starter 505-AJB-4RG-6XGPC
Allen-Bradley Allen-Bradley Size 0 RVSG Starter 505-AJB-1-4GR-6XGPC

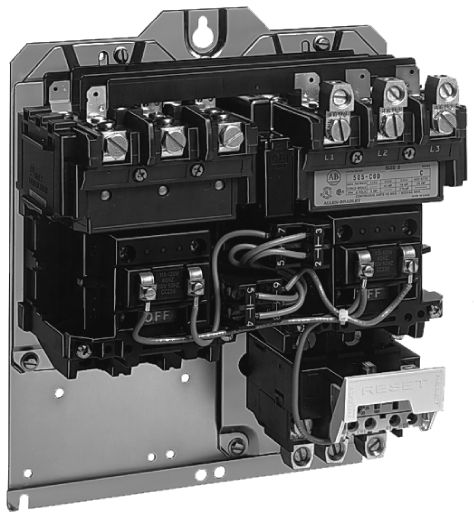

Allen-Bradley Allen-Bradley Size 0 RVSG Starter 505-AHB-1-6GP
