Allen-Bradley Trapped Key Interlock 440T-MSSUE200Z
Allen-Bradley 440T-MSSUE200Z - industrial components - Width: 59 mm mm; Height: 203.3 mm mm; Color: Red/stainless.
Allen-Bradley 440T-MSSUE200Z is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Width: 59 mm mm and Height: 203.3 mm mm.
Key manufacturer data on file for this item includes Color: Red/stainless; Weight: SSE: 1.17 kg (2.6 lb); Operating Temperature: -20 °C; Relative Humidity: 95 %; Ambient temperature: -10 °C; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Depth: 34 mm; Electrical life cycle: Dependant on load; Mechanical life operations: 200000; Pollution degree: 3. See the Specifications tab on this page for the full technical table.
| Actuation frequency, max | 2 cycle/s |
|---|---|
| Actuation speed, max | 1 m/s |
| Actuator material | Stainless Steel |
| Actuator travel for positive opening | 5 mm |
| Ambient temperature | -10 °C |
| Auxiliary contacts | 1 NO |
| Break contact force, min | 12 N |
| Build America, Buy America | No |
| Case Material | 316L Stainless Steel, UL approved glass-filled Polyester |
| Color | Red/stainless |
| Conduit entry | 3 x M20 |
| Current, min | 5mA @ 5V DC |
| Depth | 34 mm |
| Electrical life cycle | Dependant on load |
| Features | Electrical safety contacts combined with trapped key/enforced sequence feature, Most of unit constructed from 316L Stainless Steel, Selection of actuator types available, Single or dual key versions available, Direct drive ops, Replaceable code barr |
| Height | 203.3 mm mm |
| Holding force, max | 2000 N |
| Ingress protection rating | IP67 |
| Insulation voltage | Rated 500V |
| Key code 1 position 1 | Code 1 position 1 - code 0 |
| Key code 1 position 2 | Code 1 position 2 - code Z |
| Key condition | 24V 2 NC & 1 NO key free to release standard actuator |
| Lifecycle Status | Active |
| Mechanical life operations | 200000 |
| Mounting | SSS: 4 x M5 counterbored from top or 4 x M5 from underside with nuts |
| Operating radius, min | 175 mm (6.88 in) (60 mm (2.36 in) with flexible actuator) |
| Operating Temperature | -20 °C |
| Pollution degree | 3 |
| Rated impulse withstand voltage (Uimp) | 2500 V |
| Relative Humidity | 95 % |
| Releasable load, max | 100 N |
| Repair Options Available | No |
| Safety contact gap | >2 x 2 mm (0.07 in) |
| Safety contacts | 2 NC positive break |
| Shear force to key | 15.1 |
| Switching current, max | 500V/500VA @ voltage |
| Thermal current (Ith) | 10 A |
| Torque settings, max | Terminal screws: 1.0 Nm |
| Torque to key | 14 |
| Type of accessory/spare part | Mechanical locking |
| Type of switch | Slamlock solenoid primary trapped |
| Utilization category | DC (250V @ 0.5A, 24V @ 2A) |
| Weight | SSE: 1.17 kg (2.6 lb) |
| Width | 59 mm mm |
Frequently Asked Questions
How do I get pricing for 440T-MSSUE200Z?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 440T-MSSUE200Z?
440T-MSSUE200Z is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 440T-MSSUE200Z?
Key specifications include Actuation frequency, max: 2 cycle/s; Actuation speed, max: 1 m/s; Actuator material: Stainless Steel; Actuator travel for positive opening: 5 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 440T-MSSUE200Z ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Trapped Key Interlock 440T-MSSUE200X
Allen-Bradley Allen-Bradley Trapped Key Interlock 440T-MSSUE20AB
Allen-Bradley Allen-Bradley Trapped Key Interlock 440T-MSSUE200W
Allen-Bradley Allen-Bradley Trapped Key Interlock 440T-MSSUE20AC

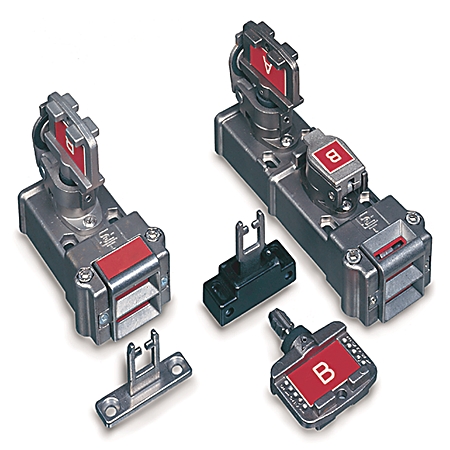

Allen-Bradley Allen-Bradley Trapped Key Interlock 440T-MSSUE200T
