Allen-Bradley Guardmaster MSR126.1T Safety Relay 440R-N23113
Allen-Bradley 440R-N23113 - Safety Relays - Width: 22.5 mm mm; Height: 75 mm mm; Weight: 115/230V AC: 215 g (0.47 lb).
The 440R-N23113 from Allen-Bradley is listed under Safety Relays in our catalog. The manufacturer's published data for this part number specifies Width: 22.5 mm mm and Height: 75 mm mm.
The specification set recorded for this part number covers Weight: 115/230V AC: 215 g (0.47 lb); Operating Temperature: -5 °C; Relative Humidity: Operating: 90%; Category: up to 4; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Enclosure Type: IP40 (NEMA 1), DIN 0470; Sub Brand: Guardmaster; Depth: 110 mm; Rated control supply voltage at AC 50 Hz: 115 V; Rated control supply voltage at AC 60 Hz: 115 V. See the Specifications tab on this page for the full technical table.
| Build America, Buy America | No |
|---|---|
| Category | up to 4 |
| Continuous safety output current | UL: B300, 5A @ 250V AC, 24V AC @ 6A @ 24V DC, AC-15: 6A @ 250V AC, DC-13: 3A @ 24V DC |
| Days of operation | 365 dbays |
| DC avg | 99 % |
| Depth | 110 mm |
| Electrical life cycle | ops: 100.000 (220V AC / 4 A / 880VA cosφ = 0.35), 500.000 (220V AC / 1.7 A / 375VA cosφ = 0.6), 1.000.000 (30V DC / 2 A / 60 W), 2.000.000 (10V DC / 0.01 A / 0.1 W) |
| Enclosure protection | IP40 (NEMA 1) |
| Enclosure Type | IP40 (NEMA 1), DIN 0470 |
| Evaluation inputs | One- and two-channel |
| Fuses output | External: 6 A slow blow or 10 A quick blow |
| Height | 75 mm mm |
| Hours of operation | 24 h |
| Immediate safe dry No output | 2 |
| Inductive, AC-15 | 6.0A @ 250V AC |
| Inductive, DC-13 | 6 A/24V DC @ 6 ops/min |
| Input resistance, max | 90 ohm |
| Input simultaneity | Infinite |
| Lifecycle Status | Active |
| Mission time | 20 year |
| Model | Basic device |
| Mounting | DIN rail: 35 mm |
| MTTFd | 375 year |
| Number of outputs, safety related, undelayed, semiconductors | 0.000000 |
| Number of outputs, safety related, undelayed, with contact | 2 |
| Number of outputs, signalling function, delayed, semiconductors | 0.000000 |
| Number of outputs, signalling function, delayed, with contact | 0.000000 |
| Number of outputs, signalling function, undelayed, semiconductors | 0.000000 |
| Number of outputs, signalling function, undelayed, with contact | 0.000000 |
| Operating Temperature | -5 °C |
| Operating voltage range | 97.75 |
| Performance level | up to e |
| PFHd | 2.03e-09 |
| Pollution degree | 2 |
| Power consumption | 4 W |
| Power ON delay | 300 ms |
| Rail mounting possible | true |
| Rated control supply voltage at AC 50 Hz | 115 V |
| Rated control supply voltage at AC 60 Hz | 115 V |
| Rated control supply voltage at DC | 0 V |
| Rated impulse withstand voltage | 2500 V |
| Rated thermal current (Ith) | Maximum 6 A in one current path (non-switching) |
| Recovery Time | 100 ms |
| Relative Humidity | Operating: 90% |
| Release-delay | false |
| Repair Options Available | No |
| Reset | Automatic/manual |
| Resistive, AC-1 | 6.0A @ 250V AC |
| Resistive, DC-1 | 6.0A @ 24V DC |
| Response time | 15 ms |
| Shock | 10 g, 16 ms, 100 shocks |
| Sub Brand | Guardmaster |
| Suitable for monitoring of emergency-stop circuits | true |
| Suitable for monitoring of magnetic switches | true |
| Suitable for monitoring of optoelectronic protection equipment | true |
| Suitable for monitoring of position switches | true |
| Suitable for monitoring of proximity switches | true |
| Suitable for monitoring of tactile sensors | true |
| Suitable for monitoring of valves | true |
| Switching current | 10mA @ 10V |
| T cycle | 8/28800 (h/s) |
| Terminal protection | IP20, DIN 0470 |
| Terminal Type | Fixed |
| Type of electric connection | Screw connection |
| Vibration | 10...55 Hz, 0.35 mm |
| Voltage type for actuating | AC |
| Weight | 115/230V AC: 215 g (0.47 lb) |
| Width | 22.5 mm mm |
| Wire size | 0.2...2.5 mm² (24...12 AWG) |
| With detachable clamps | false |
| With feedback circuit | true |
| With muting function | false |
| With start input | true |
Frequently Asked Questions
How do I get pricing for 440R-N23113?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 440R-N23113?
440R-N23113 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 440R-N23113?
Key specifications include Build America, Buy America: No; Category: up to 4; Continuous safety output current: UL: B300, 5A @ 250V AC, 24V AC @ 6A @ 24V DC, AC-15: 6A @ 250V AC, DC-13: 3A @ 24V DC; Days of operation: 365 dbays. The full specification table on this page lists every published attribute for this part.
How quickly can 440R-N23113 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Guardmaster MSR138.1DP Safety Relay 440R-M23154

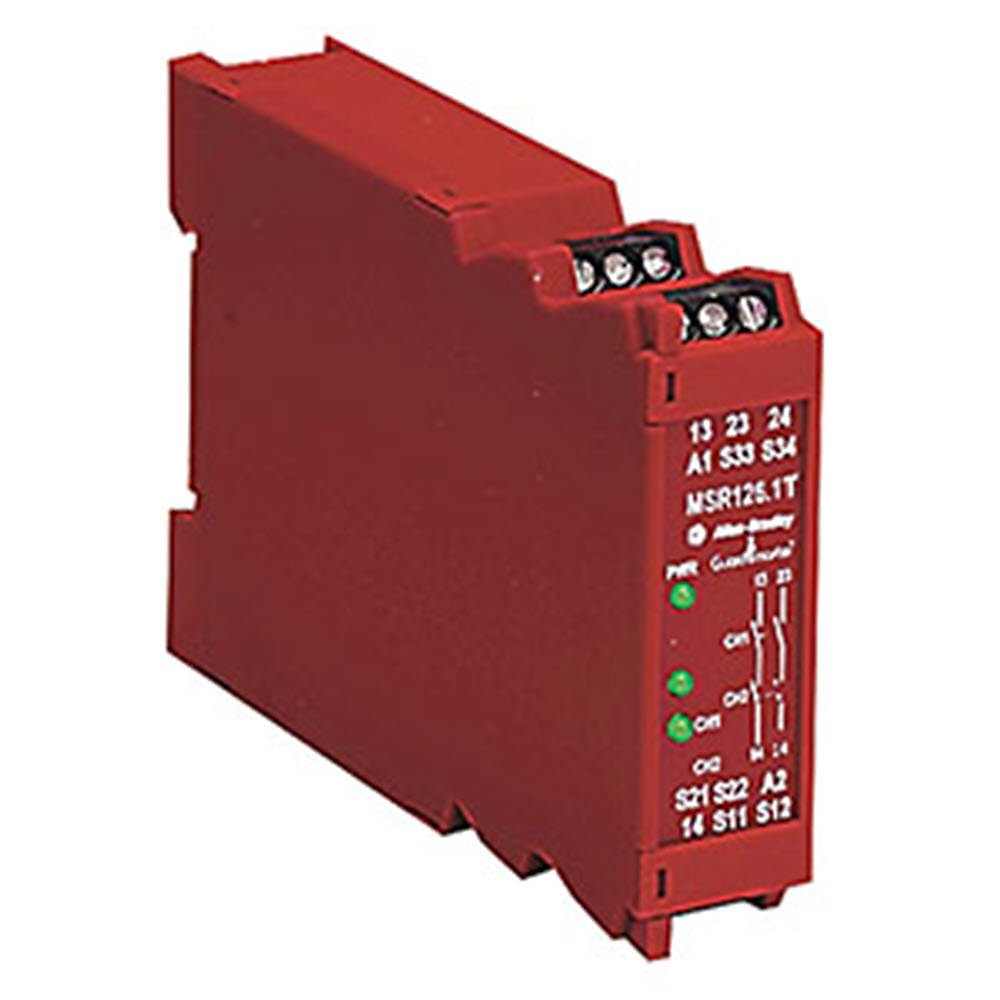

Allen-Bradley Allen-Bradley Guardmaster MSR126.1T Safety Relay 440R-N23114
