Allen-Bradley Large Metal IEC Safety Limit Switches 440P-MMHB04B
Allen-Bradley 440P-MMHB04B - industrial components - Operating Temperature: -25 °C; Housing material: Die-cast alloy; Lifecycle Status: Active.
This listing covers the Allen-Bradley 440P-MMHB04B, a part number in the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Housing material: Die-cast alloy.
The specification set recorded for this part number covers Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP66; Degree of protection (NEMA): 1; Mechanical life operations: 10000000 ops per hour; Material housing: Metal; Actuator type: Short metal roller lever; Shock: IEC 60068-2-7 (30 Gn 3 pulses per axis); Vibration: IEC 60068-2-6 (10...55 Hz, 0.35 mm Alitude); Connection type: M20 conduit; Pollution degree: 3. The complete technical table is shown in the Specifications tab on this page.
| Actuation frequency, max | 6000 ops/hr |
|---|---|
| Actuation speed, max | 250 mm/s |
| Actuation speed, min | 100 mm/min |
| Actuator material | Various polymers and metals |
| Actuator type | Short metal roller lever |
| Auxiliary contacts | 1NO (with 2 NC) |
| Body style | 30 mm large metal body |
| Build America, Buy America | No |
| Connection type | M20 conduit |
| Construction type housing | Cuboid |
| Contact current rating (Ie) | 6A @ 120V AC (Ue) |
| Contact type | Break before make |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 1 |
| Enclosure Color | Red |
| Forced opening | true |
| Housing material | Die-cast alloy |
| Lifecycle Status | Active |
| Material housing | Metal |
| Mechanical life operations | 10000000 ops per hour |
| Mounting | 2 x M5, any position |
| Number of contacts as normally closed contact | 4 |
| Number of contacts as normally open contact | 0.000000 |
| Operating Temperature | -25 °C |
| Pollution degree | 3 |
| Rated impulse withstand voltage | 2500 V |
| Rated insulation voltage | 600V AC |
| Repair Options Available | No |
| Safety contacts | 1 NC snap acting, 2 NC, 3 NC or 4 NC slow acting |
| Shock | IEC 60068-2-7 (30 Gn 3 pulses per axis) |
| Suitable for safety functions | true |
| Switching current, min | 5mA @ 5V DC |
| Thermal current (Ith) | 10 A |
| Type of electric connection | Other |
| Utilization category | N600/DC-13 |
| Vibration | IEC 60068-2-6 (10...55 Hz, 0.35 mm Alitude) |
| With status indication | false |
Frequently Asked Questions
How do I get pricing for 440P-MMHB04B?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 440P-MMHB04B?
440P-MMHB04B is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 440P-MMHB04B?
Key specifications include Actuation frequency, max: 6000 ops/hr; Actuation speed, max: 250 mm/s; Actuation speed, min: 100 mm/min; Actuator material: Various polymers and metals. The full specification table on this page lists every published attribute for this part.
How quickly can 440P-MMHB04B ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

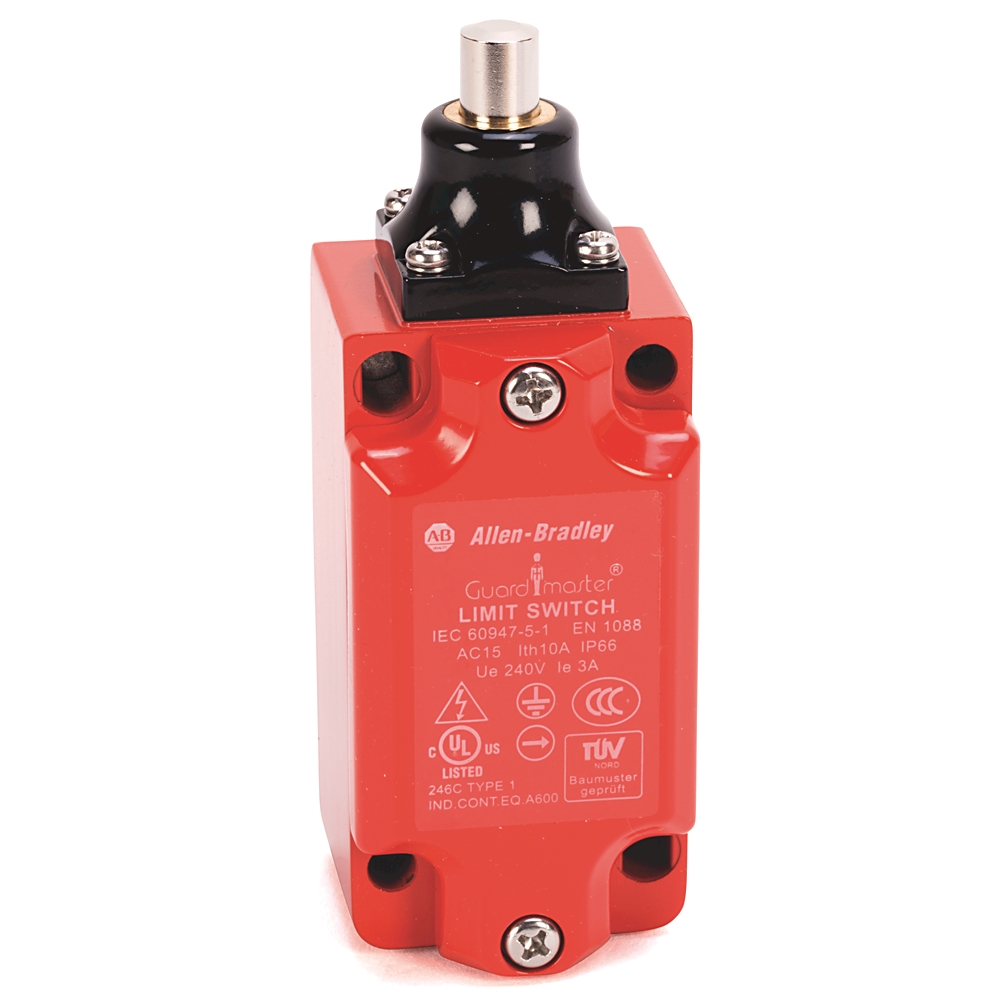

Allen-Bradley Allen-Bradley Large Metal IEC Bulletin 440P 440P-MDPS11N5
Allen-Bradley Allen-Bradley Large Metal IEC Safety Limit Switches 440P-MMHB13E
Allen-Bradley Allen-Bradley Large Metal IEC Safety Limit Switches 440P-MDPS11E

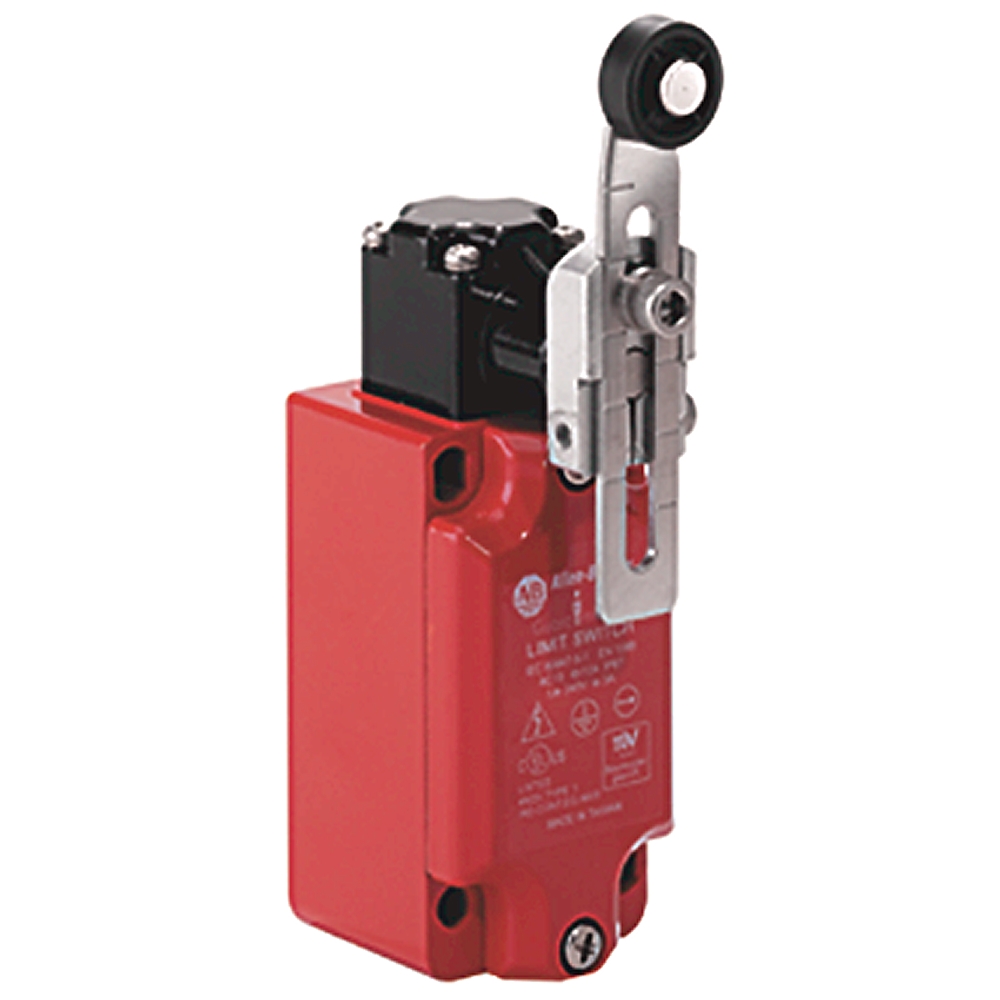

Allen-Bradley Allen-Bradley Large Metal IEC Safety Limit Switches 440P-MMHB22B
