Allen-Bradley Small Plastic IEC Bulletin 440P 440P-CRRS11D4
Allen-Bradley 440P-CRRS11D4 - industrial components - Width: 40.7 mm mm; Height: 31 mm mm; Operating Temperature: -25 °C.
The 440P-CRRS11D4 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Width: 40.7 mm mm and Height: 31 mm mm.
The specification set recorded for this part number covers Operating Temperature: -25 °C; Housing material: UL approved glass-filled polybutylene terephthalate; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP66; Degree of protection (NEMA): 1; Depth: 133 mm; Mechanical life operations: 10000000 ops with no electrical load; Material housing: Plastic; Actuator type: Adjustable rubber roller lever; Shock: IEC 60068-2-7 (30 Gn 3 pulses per axis). See the Specifications tab on this page for the full technical table.
| Actuation frequency, max | 6000 ops/hr |
|---|---|
| Actuation speed, max | 250 mm/s |
| Actuation speed, min | 100 mm/min |
| Actuator | Rubber Roller |
| Actuator material | Various polymers and metals |
| Actuator type | Adjustable rubber roller lever |
| Auxiliary contacts | 1NO (with 2 NC) |
| Body | EN50047 (22mm), Plastic |
| Body style | 22 mm small plastic body |
| Build America, Buy America | No |
| Connection type | DC micro |
| Construction type housing | Cuboid |
| Contact | Snap Acting |
| Contact current rating (Ie) | 6A @ 120V AC (Ue) |
| Contact type | Snap acting |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 1 |
| Depth | 133 mm |
| Enclosure Color | Red |
| Forced opening | true |
| Height | 31 mm mm |
| Housing material | UL approved glass-filled polybutylene terephthalate |
| Lifecycle Status | Active |
| Material housing | Plastic |
| Mechanical life operations | 10000000 ops with no electrical load |
| Mounting | 2 x M4, any position |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number Of Pins | 4-pin |
| Operating Temperature | -25 °C |
| Pollution degree | 3 |
| Rated insulation voltage | 600V AC |
| Repair Options Available | No |
| Safety contacts | 1 NC snap acting, 2 NC, 3 NC or 4 NC slow acting |
| Shock | IEC 60068-2-7 (30 Gn 3 pulses per axis) |
| Suitable for safety functions | true |
| Switching current, min | 25mA @ 5V DC |
| Thermal current (Ith) | 10 A |
| Two-circuit 4-pin micro connector current | 2.5A @ 250V DC |
| Type of electric connection | Other |
| Utilization category | Q600/DC-13 |
| Vibration | IEC 60068-2-6 (10...55 Hz, 0.35 mm Alitude) |
| Width | 40.7 mm mm |
| With status indication | false |
Frequently Asked Questions
How do I get pricing for 440P-CRRS11D4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 440P-CRRS11D4?
440P-CRRS11D4 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 440P-CRRS11D4?
Key specifications include Actuation frequency, max: 6000 ops/hr; Actuation speed, max: 250 mm/s; Actuation speed, min: 100 mm/min; Actuator: Rubber Roller. The full specification table on this page lists every published attribute for this part.
How quickly can 440P-CRRS11D4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Small Plastic IEC Safety Limit Switches 440P-CRRM12E
Allen-Bradley Allen-Bradley Small Plastic IEC Safety Limit Switches 440P-CRRS11E
Allen-Bradley Allen-Bradley Small Plastic IEC Bulletin 440P 440P-CRRB12R6
Allen-Bradley Allen-Bradley Small Plastic IEC Safety Limit Switches 440P-CSLB03E

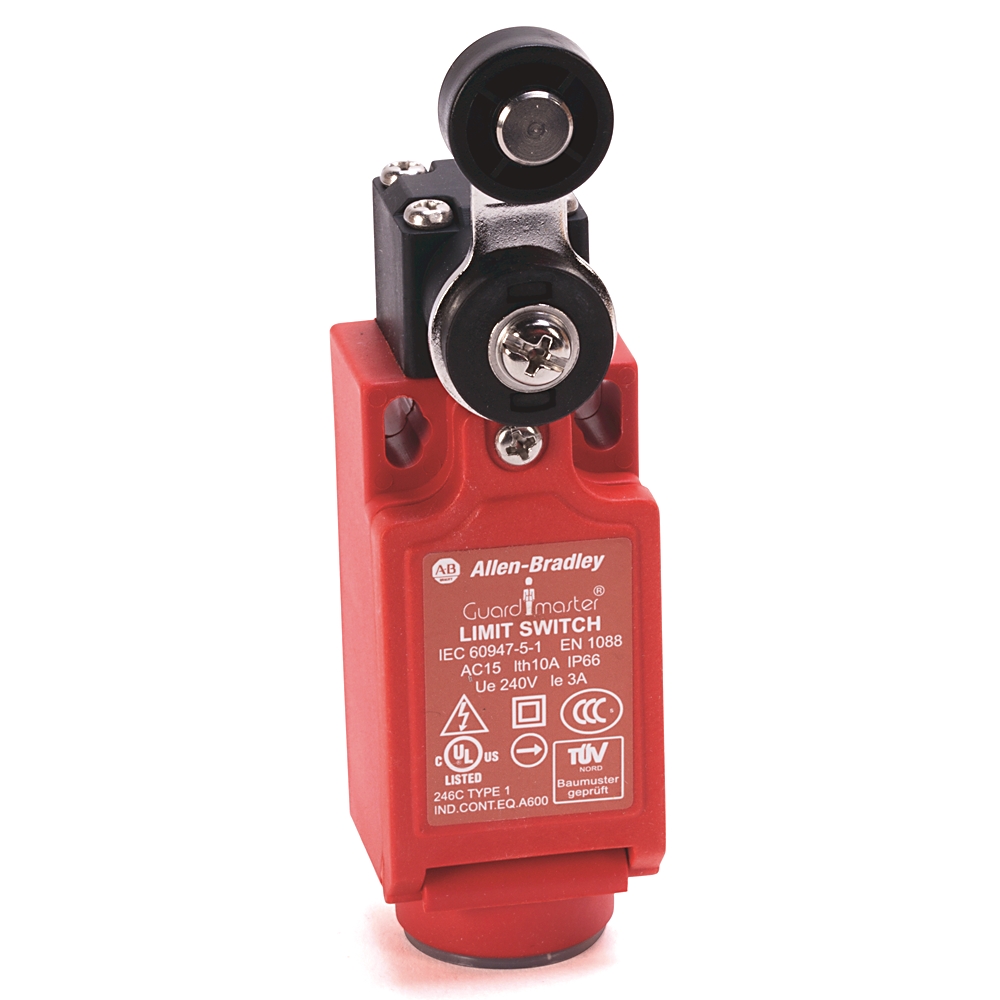

Allen-Bradley Allen-Bradley Small Plastic IEC Safety Limit Switches 440P-CSLB12E
