Allen-Bradley 18 mm Cylindrical 18 mm Metal Sensor 42CM-B2LNBC-D4
Allen-Bradley 42CM-B2LNBC-D4 - industrial components - Operating Temperature: -25 °C; Relative Humidity: 5…95% (noncondensing); Housing material: Nickel-plated Brass.
Allen-Bradley 42CM-B2LNBC-D4 is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Relative Humidity: 5…95% (noncondensing).
Key manufacturer data on file for this item includes Housing material: Nickel-plated Brass; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP67; Material housing: Metal; Shock: 30 G with 11 ms pulse duration, meets or exceeds IEC 600947-5-2; Vibration: 10...55 Hz, 0.5 mm Alitude, meets or exceeds IEC 600947-5-2; Connection type: 4 pin micro (M12) quick disconnect; Protection type: Short circuit, reverse polarity, false pulse, overload; Type of electric connection: Connector M12; Response time: 0.5 ms. The complete technical table is shown in the Specifications tab on this page.
| Ambient light immunity | Incandescent light 5000 lux |
|---|---|
| Build America, Buy America | No |
| Connection type | 4 pin micro (M12) quick disconnect |
| Construction type housing | Cylinder, screw-thread |
| Current consumption, max | 30 mA |
| Degree of protection (IP) | IP67 |
| Diameter sensor | 16.4 mm |
| Housing material | Nickel-plated Brass |
| Laser protection class | Class 1 |
| LED status | Orange ON: Light condition (excess gain >2), LO output- ON, DO output- OFF |
| Length of sensor | 79.4 mm |
| Lens Material | Acrylic |
| Lifecycle Status | Active |
| Light source | Visible red |
| Material housing | Metal |
| Material of optical surface | Plastic |
| Max. output current | 100 mA |
| Max. switching distance | 50 mm |
| Minimum Sensing Distance | NA,50,50 |
| Operating distance | 50 mm |
| Operating Temperature | -25 °C |
| Operating voltage/mode | DC - light or dark operate selectable |
| Protection type | Short circuit, reverse polarity, false pulse, overload |
| Quick Disconnect | 4-pin DC Micro |
| Relative Humidity | 5…95% (noncondensing) |
| Repair Options Available | No |
| Response time | 0.5 ms |
| Sensing mode | Light-/dark switching |
| Sensing mode type | Background suppression |
| Sensitivity adjustment | Not adjustable |
| Shock | 30 G with 11 ms pulse duration, meets or exceeds IEC 600947-5-2 |
| Suitable for safety functions | false |
| Triangulation | Background fade-out |
| Type of electric connection | Connector M12 |
| Type of switching output | NPN |
| Vibration | 10...55 Hz, 0.5 mm Alitude, meets or exceeds IEC 600947-5-2 |
| Voltage type | DC |
| Wavelength of the sensor | 660 nm |
| With time function | false |
Frequently Asked Questions
How do I get pricing for 42CM-B2LNBC-D4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 42CM-B2LNBC-D4?
42CM-B2LNBC-D4 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 42CM-B2LNBC-D4?
Key specifications include Ambient light immunity: Incandescent light 5000 lux; Build America, Buy America: No; Connection type: 4 pin micro (M12) quick disconnect; Construction type housing: Cylinder, screw-thread. The full specification table on this page lists every published attribute for this part.
How quickly can 42CM-B2LNBC-D4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 18 mm High Speed Sensor 42CB-U1LNA-M4

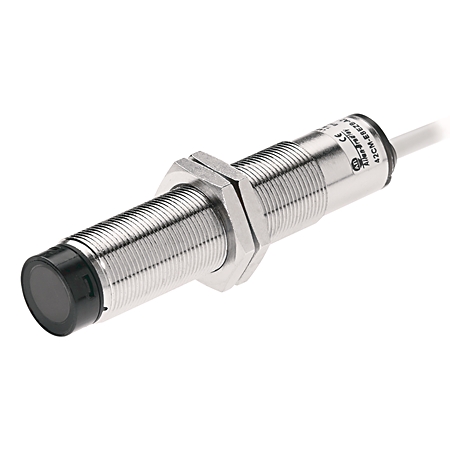

Allen-Bradley Allen-Bradley 18 mm Cylindrical 18 mm Metal Sensor 42CM-R8MNB-D4
Allen-Bradley Allen-Bradley 18 mm High Speed Sensor 42CB-U1LNA-L2

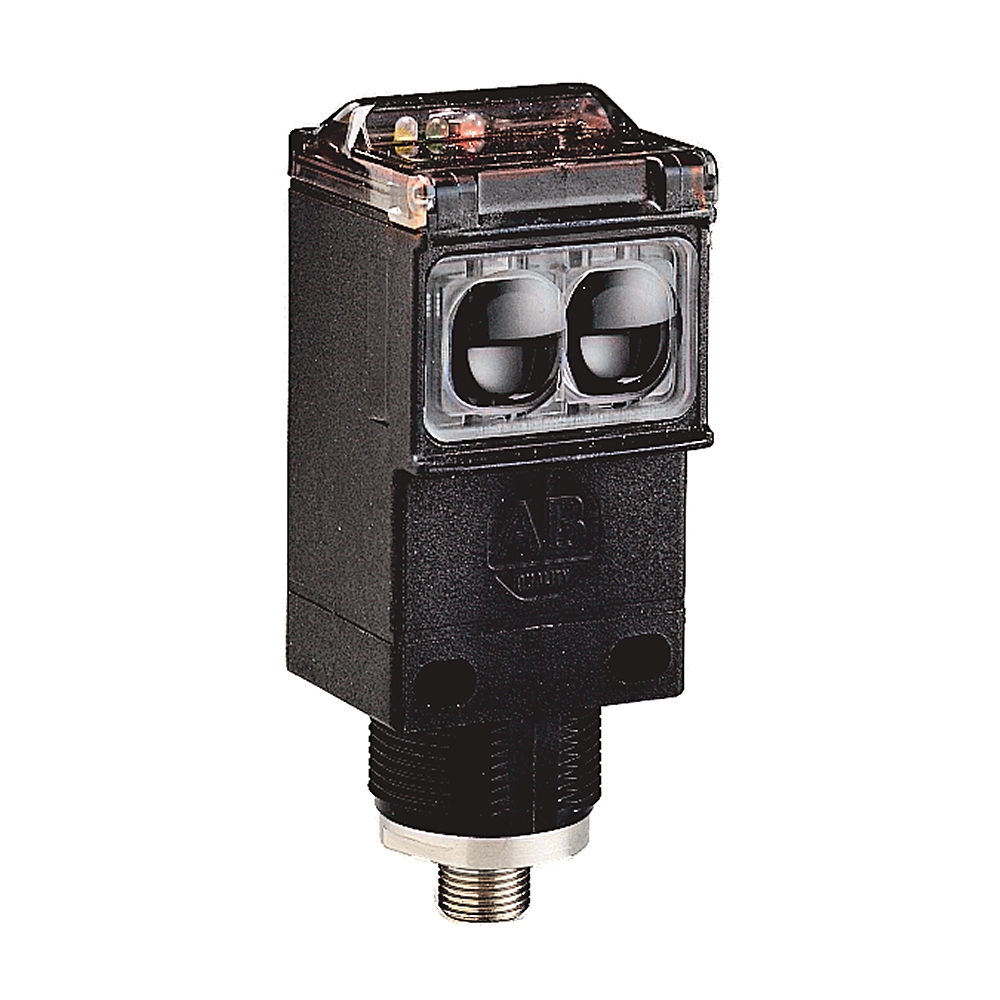

Allen-Bradley Allen-Bradley Series 9000 GP Sensor 42GRL-9000-QD3

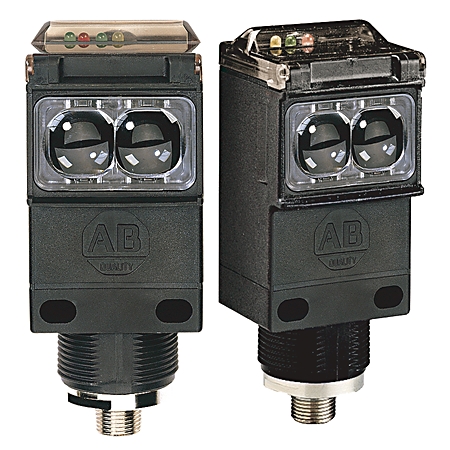

Allen-Bradley Allen-Bradley Series 9000 GP Sensor 42GRL-9003-QD
