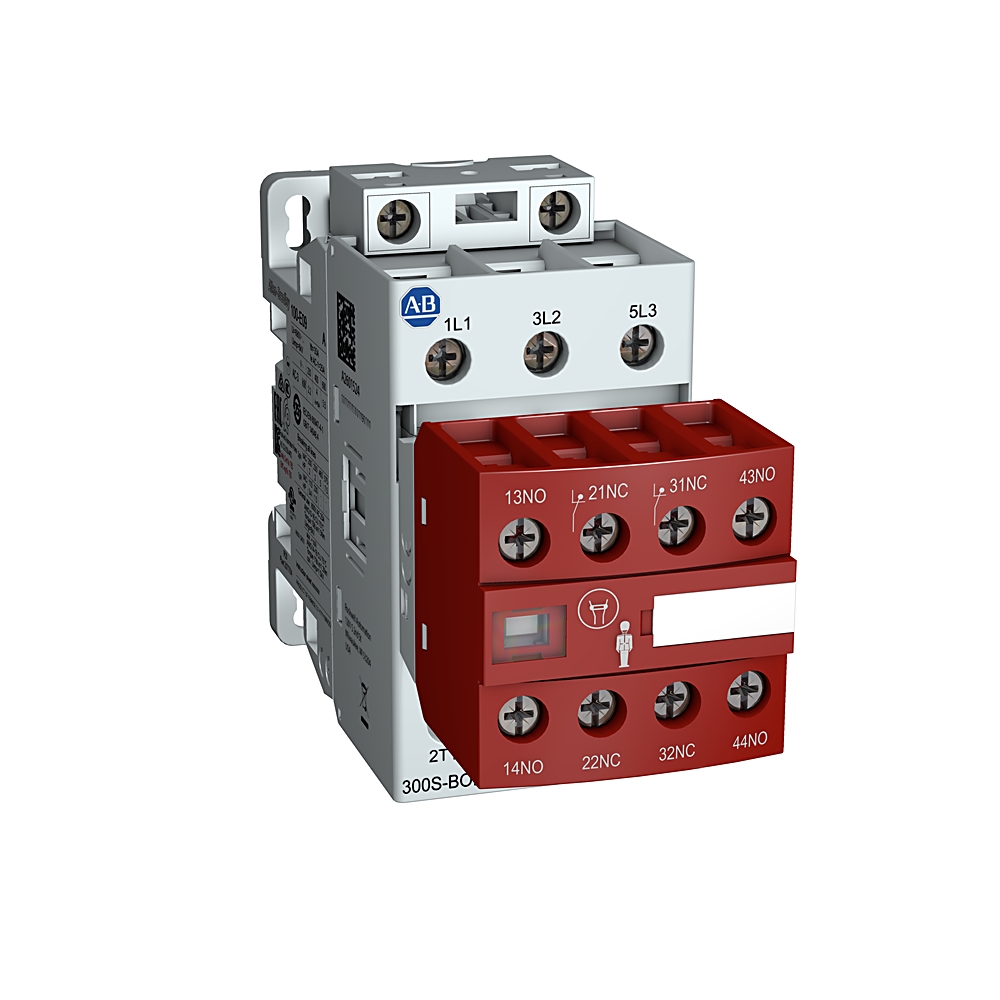

Allen-Bradley NEMA Size 1 Safety Contactor 300S-BOJ9322C
Allen-Bradley 300S-BOJ9322C - industrial components - Function: Energy-saving safety contactor; Contacts: 3 main poles with N.C. mirror ftdback contacts; Weight: AC/DC (electronic): 0.48 kg (1.06 lbs.).
This listing covers the Allen-Bradley 300S-BOJ9322C, a part number in the industrial components category. The manufacturer's published data for this part number specifies Function: Energy-saving safety contactor and Contacts: 3 main poles with N.C. mirror ftdback contacts.
Key manufacturer data on file for this item includes Weight: AC/DC (electronic): 0.48 kg (1.06 lbs.); Ambient temperature: Storage: -60...80 °C (-76...176 °F); Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Rated control supply voltage at AC 50 Hz: 24 V; Rated control supply voltage at AC 60 Hz: 24 V; Type of electrical connection of main circuit: Screw connection; Voltage type for actuating: AC/DC; Switching frequency, max: 600 ops/hr, AC-1; Number of auxiliary contacts as normally open contact: 2; Number of auxiliary contacts as normally closed contact: 2. See the Specifications tab on this page for the full technical table.
| Altitude, max | 3000 m of installation site |
|---|---|
| Ambient temperature | Storage: -60...80 °C (-76...176 °F) |
| Build America, Buy America | No |
| Climatic withstand | Category B according to IEC 60947-1, annex Q |
| Contacts | 3 main poles with N.C. mirror ftdback contacts |
| Continuous ampere rating | 3-poles: 27 A |
| DIN fuses (gG) current rating | Type 2 (per IEC 60947-4-1): 62A @ 400V, 100 kA available fault current |
| Electromagnetic compatibility | IEC 60947-1 - Environment A and B (300S size 00...1 only.) |
| Features | Mirror contact performance on auxiliary contacts, Red N.C. low-power auxiliary contacts used for ftdback circuit, SUVA third-party certification, Sizes 00...5: AC/DC electronic coil with optional PLC interface, Sizes 6...8: AC/DC electronic coil with PLC |
| FLA | 45A @ 600V, 3-phase per UL/CSA HVAC applications |
| Function | Energy-saving safety contactor |
| General purpose current (enclosed) | 24A @ 600V per UL/CSA |
| Horsepower rating, max | 3-poles: 7.5Hp @ 230V, three-phase, full-load current must not exceed continuous Aere rating (60 Hz) |
| Lifecycle Status | Active |
| LRA | 270 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications |
| Main current circuit resistance | 0.30 mΩ |
| MCCB current rating | Type 2 (per IEC 60947-4-1): 56A @ 400V, 70 kA available fault current |
| NEMA size | 00...7 |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 2 |
| Operating limits, dropout | (≤0.60) x Us @ DC control |
| Operating limits, pick-up | (0.85...1.1) x Us @ 50/60 Hz |
| Operating time, closing delay | 40 to 95 ms |
| Operating time, opening delay | 11 to 95 ms |
| Optional accessories | Side-mount auxiliary contacts, Terminal shields, Terminal lugs, Terminal enlargements, Terminal extensions, Connection bars for 140G molded case circuit breakers, 140MG motor protection circuit breakers, and 140MG motor circuit protectors |
| Power dissipation | 1.8 W per pole at Ie, AC-1, 400V |
| Protection class | Contactor main contact: IP2X |
| Rated control supply voltage at AC 50 Hz | 24 V |
| Rated control supply voltage at AC 60 Hz | 24 V |
| Rated control supply voltage at DC | 20 V |
| Rated impulse voltage withstand (Uimp) | 6 kV |
| Rated isolation voltage (Ui) | 690V per IEC |
| Rated operational current (Ie) | 45A @ 690V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F) |
| Rated operational current and power | 9.6A @ 230V AC, 500000 electrical ops, 1-phase per UL/CSA elevator duty |
| Rated operational current and power (enclosed) | 7.5 Hp @ 220-240V, 3-phase per UL/CSA |
| Rated operational power (Pe) | 6.5 kW @ 220-240V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 °C (140 °F) |
| Rated voltage (Ue) | 24V @ 48V, 110V @ 220V, 440V DC |
| Repair Options Available | No |
| Shock resistance | IEC 60068-2-27 |
| Short time withstand (Icw) | 3-pole: 700A @ 1s (40 °C) |
| Standard coil, hold-in | 2.2VA/2 W @ 24-60V AC, 20-60V DC |
| Standard coil, pick-up | 50VA/50 W @ 24-60V AC, 20-60V DC |
| Switching frequency, max | 600 ops/hr, AC-1 |
| Switching of DC loads | 3-poles in series: 45A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C) |
| Switching of lighting loads | Tungsten lA: 45A @ 600V, 3-phase (break all lines) per UL/CSA |
| Switching of power transformers | Apparent power: 9 kVA @ 200V @ 60Hz (n = 30) |
| Total power dissipation | 3.8 W at Ie, AC-3, 400V, AC/DC control (120-250V) |
| Type of electrical connection of main circuit | Screw connection |
| UL class J and CSA HRCI-J fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 100 kA available fault current |
| UL class RK5 fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 5 kA available fault current |
| UL inverse-time circuit breaker | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 100A @ 600V, 25 kA available fault current |
| Vibration resistance | IEC 60068-2-6 |
| Voltage type for actuating | AC/DC |
| Weight | AC/DC (electronic): 0.48 kg (1.06 lbs.) |
