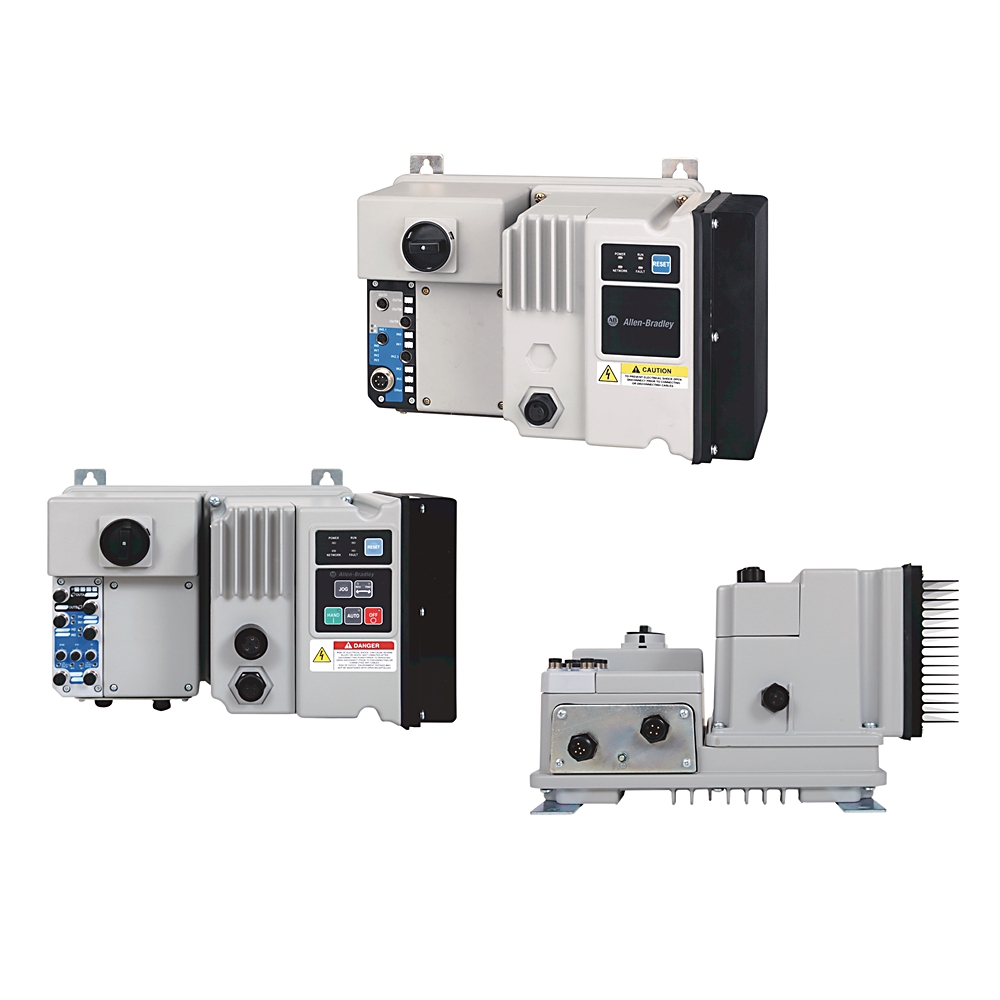

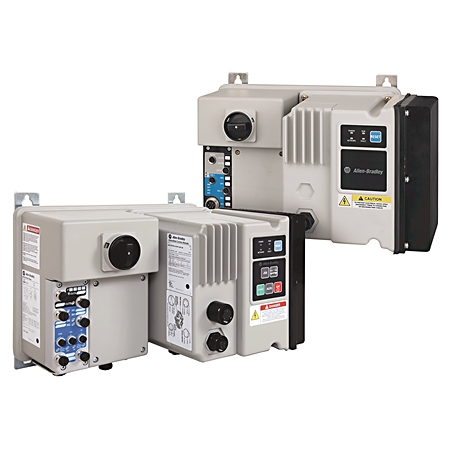

Allen-Bradley DeviceNet ArmorStart VFD Safety 284D-FVD7P6Z-25-RR
Allen-Bradley 284D-FVD7P6Z-25-RR - industrial components - Operating Temperature: -20 °C; Lifecycle Status: Discontinued; Build America, Buy America: No.
Allen-Bradley 284D-FVD7P6Z-25-RR is a industrial components catalog item from Allen-Bradley. The manufacturer's published data for this part number specifies Operating Temperature: -20 °C and Lifecycle Status: Discontinued.
The specification set recorded for this part number covers Build America, Buy America: No; Repair Options Available: Yes; Degree of protection (IP): IP67; Degree of protection (NEMA): 4; Altitude: 1000 m; Number of poles: 3; Trip Class: Class 10; Tightening torque: Power and ground terminals: 4.5 in-lb per UL/NEMA (sary terminal); Application in industrial area permitted: true; Carrier frequency: Sensorless vector control: 2...16 kHz. drive rating is based on 4 kHz.; Mains frequency: 50/60 Hz; Number of digital inputs: 4. See the Specifications tab on this page for the full technical table.
| 3-phase power/motor cable connection | ArmorConnect power media connectivity with motor cable |
|---|---|
| Accel/decel | Sensorless vector control: two independently progmable accel and decel times. Each time may be progmed from 0...600 s in 0.1 s increments. |
| Altitude | 1000 m |
| Application in industrial area permitted | true |
| Application in industrial area permitted (SCPD list) | Size per NFPA 70 (NEC) or NFPA 79 for group motor applications |
| Approximate shipping weight | 19.1 kg |
| Baud rates | 125, 250, 500 kbps |
| Build America, Buy America | No |
| Carrier frequency | Sensorless vector control: 2...16 kHz. drive rating is based on 4 kHz. |
| Communication | DeviceNet |
| Communications | DeviceNet |
| Conducted radio frequency emissions | Class A |
| Connection type | Quick disconnects |
| Conventional thermal current (Ith) | Output rating- sourced from control circuit: total of both outputs ≤2 A |
| Current available | Sensor source: 50 mA maximum per input, 200 mA total |
| DB resistance, min | 97 Ω @ drive input voltage of 480V @ 50/60Hz, 3-phase, 2.2 kW, 3 Hp |
| Degree of protection (IP) | IP67 |
| Degree of protection (NEMA) | 4 |
| DeviceNet input current | 364mA @ 11V DC - 4.0 W |
| DeviceNet input current surge | 15 A for 250 µs |
| DeviceNet supply voltage rating | Range 11...25V DC @ 24V DC nominal |
| Dielectric withstand | Power circuit: 2500V AC per IEC |
| Disconnect | Motor disconnect |
| Disconnect lock out | Recommend 8 mm (5/16 in) lock shackle or hasp. The hasp should not exceed 8 mm (5/16 in) when closed. |
| Distance, max | 500 m (1630 ft) @ 125 kbps |
| Drive efficiency | 97.5% Typical |
| Drive input current ratings | 12.5A @ 460V, 5 Hp, 3-phase, 60 Hz |
| Drive output current ratings | 7.6A @ 460V, 5 Hp, 3-phase, 60 Hz |
| Drive output frequency | 0...400 Hz Progmable |
| Electronic motor overload protection | Sensorless vector control: class 10 protection with speed sensitive response |
| Electrostatic discharge | 4 kV contact and 8 kV air |
| External devices powered by DeviceNet | 50 mA - total 200 mA |
| Fast transient | 2 kV |
| Frequency accuracy - digital input | Sensorless vector control: within ±0.05% of set output frequency. |
| Hp (KW) rating/input voltage, max | Sensorless vector control: 5 Hp (3.3 kW)/480V AC |
| Humidity, max | 5...95% on-condensing |
| Input compatibility | IEC 1133 Type 1+ |
| Input filter - software selectable | ON to OFF: settable from 0…64 ms in 1 ms increments |
| Input OFF-state current | <1.5 mA |
| Input OFF-state voltage | 0...5V DC |
| Input ON-state current | 7.2mA @ 24V DC |
| Input ON-state voltage | 10...26V DC |
| Insulation voltage | Power circuit: rated 600V AC |
| Internal fan | Fan L10 ops data: 80K hours at 40 °C and 98K hours at 25 °C (77 °F) ambient |
| Kind of current | Output rating- sourced from control circuit: AC/DC |
| Lifecycle Status | Discontinued |
| Mains frequency | 50/60 Hz |
| Max. output frequency | 400 Hz |
| Nominal control power (hold in) | External devices powered by control voltage: 64 W @ with maximum outputs, with brake and output contactor |
| Nominal control power (pick up) | External devices powered by control voltage: 64 W @ with maximum outputs, with brake and output contactor |
| Number of contacts | Output rating- sourced from control circuit: 2 |
| Number of digital inputs | 4 |
| Number of digital outputs | 2 |
| Number of poles | 3 |
| Operating frequency | Power circuit: 50/60 Hz |
| Operating Temperature | -20 °C |
| Operational power rating | Volts per Hz (SVP) performance - IP67/NEMA Type 4: 5Hp @ 380...480V, 50/60 Hz, 3 phase (DeviceNet communication) |
| Option 2 | No Selection for |
| Option 3 | No Selection for |
| Outputs current (2) 1 A each, max | External devices powered by control voltage: 2 A @ with brake and output contactor |
| Overload protection | I²t overload protection - 150% @ 60s, 200% @ 30s |
| Overvoltage category | Control circuit: III per IEC |
| Pollution degree | 3 |
| Preset speeds | Sensorless vector control: 8 |
| Product type | AC Drive |
| Protection against shock | Power circuit: IP2X per IEC |
| Radiated emissions | Class A, group 1, equivalent to C2 emissions |
| Radio frequency electromagnetic field | 10 V/m |
| Rated impulse voltage | Power circuit: rated 6 kV |
| Rated input operation voltage | 24V DC |
| Rated operation voltage | Power circuit: 380Y/220...480Y/277V AC |
| Rated output operating current, max | Power circuit: 7.6 A @ 3-phase, 5 Hp rating |
| Rated output operation voltage | Sourced from control circuit: 240V AC / 30V DC |
| Repair Options Available | Yes |
| RMS symmetrical amperes | 30 kA @ 600Y/347V per IEC |
| Shock | opsal: 15 G |
| Short circuit protection | 25 A rated device |
| Short-circuit protection device list | Size per NEC group motor per UL/NEMA |
| Skip frequency | Sensorless vector control: Yes |
| Speed regulation - open loop with slip compensation | Sensorless vector control: ±1% of base speed across a 60:1 speed range |
| StepLogic® functionality | Sensorless vector control: Yes |
| Stop modes | Sensorless vector control: multiple progmable stop modes including - rA, coast, DC-brake, rA-to-hold and S curve. |
| Storage and transportation temperature | -25 °C |
| Supporting protocol for DeviceNet | true |
| Surge transient | 1 kV L-L, 2 kV L-N (earth) |
| Terminal wire size | Control and safety monitor inputs: 1.0...4.0 mm² per IEC |
| Tightening torque | Power and ground terminals: 4.5 in-lb per UL/NEMA (sary terminal) |
| Timer/counter functions | Sensorless vector control: Yes |
| Torque Performance | Sensorless Vect Ctrl and V/Hz |
| Torque performance mode | Sensorless vector control and volts per Hz |
| Total w/max. sensor inputs (4) | 367mA @ 24V DC - 8.8 W |
| Trip Class | Class 10 |
| Type of contacts | Output rating- sourced from control circuit: normally open (NO) |
| Type of control circuit | Output rating- sourced from control circuit: electromechanical relay |
| Utilization category | Power circuit: AC-3 per IEC |
| Vibration | opsal, 1 G, 0.15 mm (0.006 in) displacement |
| Voltage status | Sensor source: 11...25V DC from DeviceNet |
| Wire size | Power and ground terminals: 1.5...4.0 mm² per IEC (primary/sary terminal) |
| Wire strip length | Power and ground terminals: 9 mm (0.35 in) |
